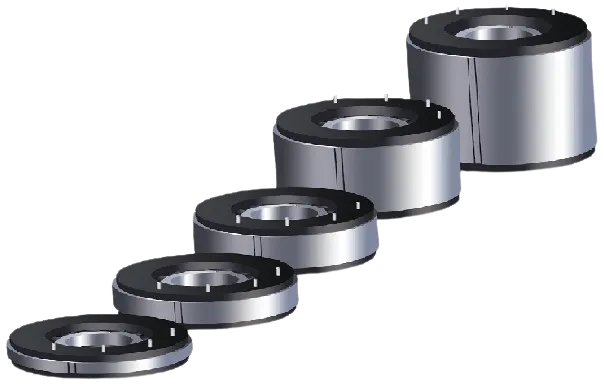

TMXSL78 Series – Torque Motor with High Precision form ITG
Discover advanced performance and application-specific advantages of our TMXSL78 Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.
| Parameter | Remarks | Symbol | Unit | TMXSL78-17 | TMXSL78-25 | TMXSL78-34 | TMXSL78-60 | TMXSL78-92 |
|---|---|---|---|---|---|---|---|---|
| Winding Type | N | Y | Y | Y | Y | |||
| Motor type | 3 Phases synchronous slotless(no iron core) 220V-380Vac rms (48V-600Vdc) | |||||||
| Peak torque | Magnet@25°C | Tp | Nm | 0.0.57 | 1.38 | 2.20 | 4.40 | 7.33 |
| Continuous torque | Coil@110°C | Tc | Nm | 0.0.14 | 0.35 | 0.54 | 1.10 | 1.80 |
| Maximum Speed | @Tc@48V | nmax | rpm | 3000 | 3000 | 3000 | 3000 | 3000 |
| Maximum Speed | @Tc | nmax | rpm | 25000 | 25000 | 25000 | 25000 | 25000 |
| Motor Torque Constant | Up to lc | Kt | Nm/Arms | 0.0.027 | 0.0.033 | 0.0.05 | 0.0.13 | 0.28 |
| Motor Constant | Coils@25°C | Km | Nm2/W | 0.0.0002 | 0.0.0008 | 0.0.0015 | 0.0.0039 | 0.0.0084 |
| Parameter | Remarks | Symbol | Unit | TMXSL78-17 | TMXSL78-34 | TMXSL78-92 | ||
|---|---|---|---|---|---|---|---|---|
| Winding Type | N | Y | Y | Y | Y | |||
| Peak Current | Magnet@25°C | lp | Arms | 21.0 | 41.8 | 44.0 | 33.8 | 26.0 |
| Max.Continuous Current | Coil@110°C | lc | Arms | 4.9 | 11 | 11.1 | 8.3 | 6.4 |
| Back EMF Phase to Phase peak | 25℃+/-10% | Kep | V/krpm | 2.3 | 2.8 | 4.3 | 11.2 | 24.1 |
| Back EMF Phase to Phase RMS | 25℃+/-10% | Ke | V/krpm | 1.6 | 2.0 | 3.0 | 7.9 | 17.0 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 1.11 | 0.44 | 0.56 | 1.44 | 1.92 |
| Induction Per Phase | I<0.63lp | Lph | Mh | 0.67 | 0.4 | 0.56 | 1.88 | 2.88 |
| Electrical Time Constants | Coil@25°C | τe | Ms | 0.6 | 0.9 | 1 | 1.3 | 1.5 |
| Max. Continuous Power Loss | All coils | Pc | W | 116.8 | 187.6 | 254.3 | 403.3 | 309.5 |
| Poles | Nmag | nr | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | |
| Parameter | Remarks | Symbol | Unit | TMXSL78-17 | TMXSL78-25 | TMXSL78-34 | TMXSL78-60 | TMXSL78-92 |
|---|---|---|---|---|---|---|---|---|
| Winding Type | N | Y | Y | Y | Y | |||
| Thermal Resistance | Coils to mount. Sfc. | Rth | °C/W | 0.99 | 0.54 | 0.39 | 0.26 | 0.0.14 |
| Temperature Sensor | Optional PTC 1kΩ/NTC | |||||||
| Parameter | Remark | Symbol | Unit | TMXSL78-17 | TMXSL78-25 | TMXSL78-34 | TMXSL78-60 | TMXSL78-92 |
|---|---|---|---|---|---|---|---|---|
| Winding type | N | Y | Y | Y | Y | |||

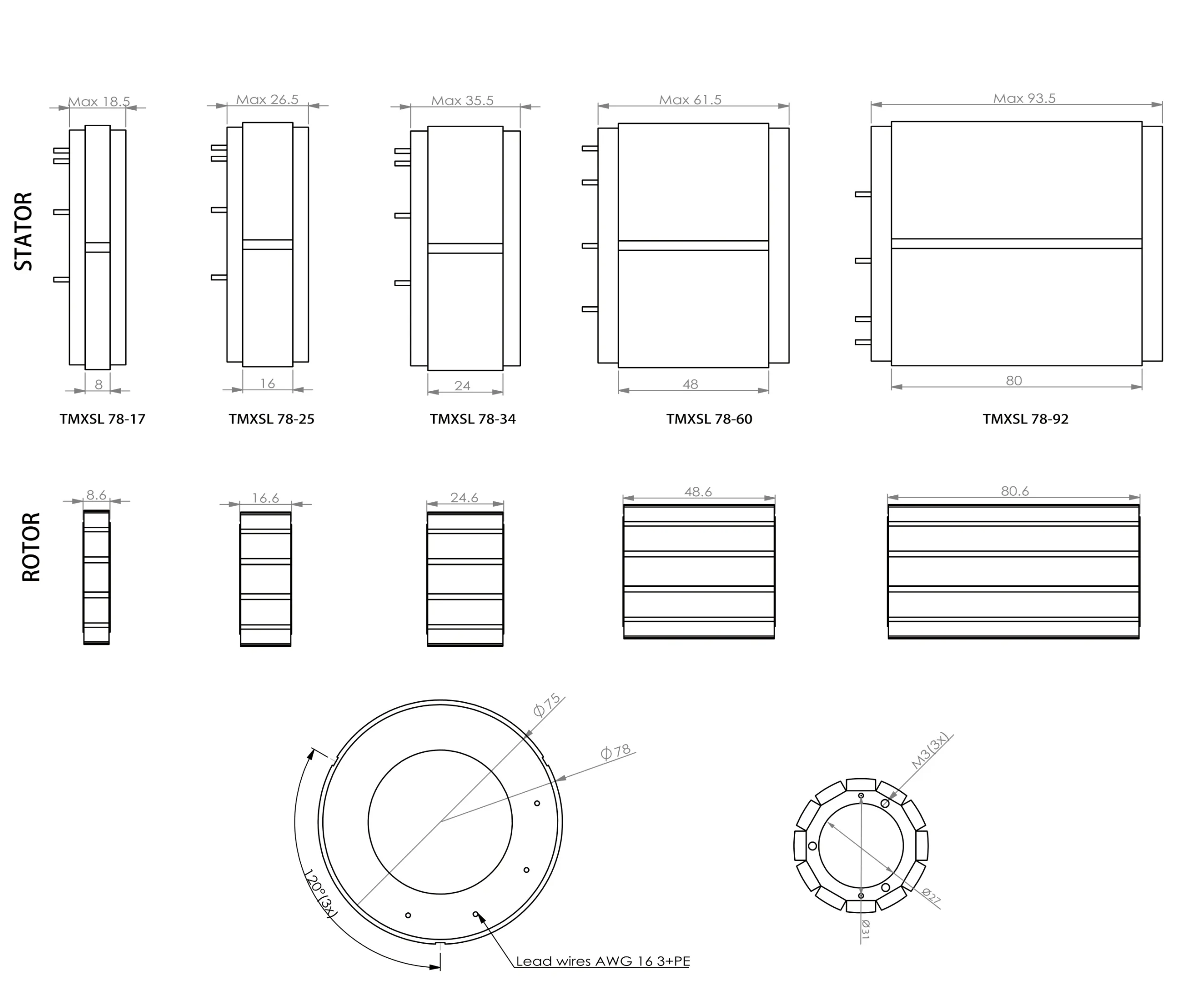

| Stator outer diameter | Ods | mm | 78 | |||||
| Rotor inner diameter | Idr | mm | 27 | |||||
| Rotor inertia | JR | Kg*m² | 1.30E-05 | 2.49E-05 | 3.75E-05 | 7.46E-05 | 1.27E-04 | |
| gross weight | Rotor+stator ex.cables | W | kg | 0.28 | 0.44 | 0.65 | 1.3 | 2 |
| Power line type | length 0.5m | Diameter | mm (mm2) | Leadwires (4*1.5mm2) | ||||
| Parameter | Remarks | Symbol | Unit | TMXSL78-17 | TMXSL78-25 | TMXSL78-34 | TMXSL78-60 | TMXSL78-92 |
|---|---|---|---|---|---|---|---|---|
| Winding Type | N | Y | Y | Y | Y |
| Parameter | Remarks | Symbol | Unit | TMXSL78-17 | TMXSL78-25 | TMXSL78-34 | TMXSL78-60 | TMXSL78-92 |
|---|---|---|---|---|---|---|---|---|
| Winding Type | N | Y | Y | Y | Y |
