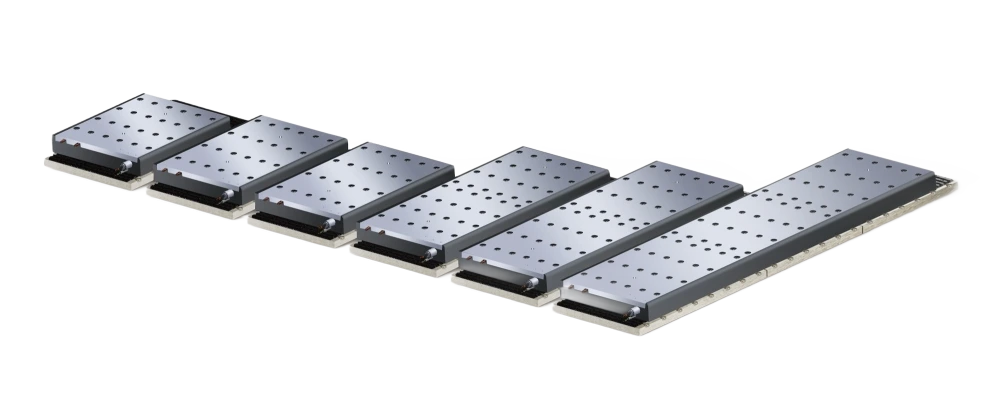

IC230WC Ironcore Linear Motor – Max Force, Peak Stability
Discover advanced performance and application-specific advantages of our IC230WC Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.
| Parameter | Remarks | Symbol | Unit | IC230WC-12 | IC230WC-15 | IC230WC-18 | IC230WC-24 | IC230WC-30 | IC230WC-45 |
|---|---|---|---|---|---|---|---|---|---|
| Winding Type | S | S | S | S | S | S | |||
| Motor type | 3 phases synchronous Ironless 380Vacrms(600Vdc) | ||||||||
| Ultimate Force | Magnet@25°C | Fu | N | 3360 | 4200 | 5040 | 6720 | 8400 | 12600 |
| Peak Force | Magnet@25°C | Fp | N | 3200 | 4000 | 4800 | 6400 | 8000 | 12000 |
| Continuous Water Force | Coil@110°C | Fc | N | 2080 | 2080 | 3120 | 4160 | 5200 | 7800 |
| Continuous Air Force | Coil@110°C | Fc | N | 1600 | 2000 | 2400 | 3200 | 4000 | 6000 |
| Maximum Speed | @560V | Vmax | m/s | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| Motor Force Constant | Mount.Sfc.@20°C | K | N/Arms | 174.0 | 174.0 | 174.0 | 174.0 | 174.0 | 174.0 |
| Motor Constant | Coils@25°C | S | N2/W | 1802 | 2243 | 2883 | 3604 | 4485 | 12615 |
| Parameter | Remarks | Symbol | Unit | IC230WC-12 | IC230WC-15 | IC230WC-18 | IC230WC-24 | IC230WC-30 | IC230WC-45 |
|---|---|---|---|---|---|---|---|---|---|
| Winding Type | S | S | S | S | S | S | |||
| Ultimate Current | Magnet@25°C | lu | Arms | 26.0 | 34.0 | 40.0 | 52.0 | 65.0 | 98.0 |
| Peak Current | Magnet@25°C | lp | Arms | 21 | 27 | 32 | 43 | 53 | 80 |
| Continuous Current Water cooled | Coil@110°C | lc | Arms | 12 | 15 | 18 | 24 | 30 | 45 |
| Continuous Current Air cooled | Coil@110°C | lc | Arms | 9.2 | 12 | 14 | 18.5 | 23 | 35 |
| Back EMF | Phase-Phase peak | Bemf | V/M/s | 142 | 142 | 142 | 142 | 142 | 142 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 2.8 | 2.25 | 17.5 | 14.0 | 11.3 | 8.0 |
| Induction Per Phase | l<0.63lp | Lph | Mh | 28.0 | 22.5 | 17.5 | 14.0 | 11.3 | 8.0 |
| Electrical Time Constant | Coil@25°C | τe | Ms | 10 | 10 | 10 | 10 | 10 | 10 |
| Power Loss | All coils | Pc | W | 1847 | 2319 | 2597 | 3693 | 4638 | 6957 |
| Parameter | Remarks | Symbol | Unit | IC230WC-12 | IC230WC-15 | IC230WC-18 | IC230WC-24 | IC230WC-30 | IC230WC-45 |
|---|---|---|---|---|---|---|---|---|---|
| Winding Type | S | S | S | S | S | S | |||
| Thermal R. | Coils to mount. Sfc. | Rth | °C/W | 0.08 | 0.06 | 0.05 | 0.04 | 0.03 | 0.01 |
| Temp. Sensor | PTC 1kΩ/NTC | ||||||||
| Parameter | Remarks | Symbol | Unit | IC230WC-12 | IC230WC-15 | IC230WC-18 | IC230WC-24 | IC230WC-30 | IC230WC-45 |
|---|---|---|---|---|---|---|---|---|---|
| Winding Type | S | S | S | S | S | S | |||
| Coil Unit Weight | ex.cables | W | kg | 9 | 12 | 15 | 20 | 25 | 38 |
| Coil Unit Length | ex.cables | L | Mm | 273 | 321 | 336 | 465 | 593 | 865 |
| Motor Attraction Force | Rms@0A | Fa | N | 7200 | 9000 | 10800 | 14400 | 18000 | 27000 |
| Magnet Pitch | N-N | τ | mm | 24 | 24 | 24 | 24 | 24 | 24 |
| Power Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | 10.1(4G2.5mm2 AWG14) | 12.1(4G4mm2) | 14.7(4G6mm2) | |||
| Sensor Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | 4.9(4*0.14mm2 AWG26) | |||||
| Cable life | Minimum | Cycles | >5,000,000 | >3-5millions | |||||
| Bending Radius Static | Minimum | mm | ≥4xφ | ≥5xφ | |||||
| Bending Radius Dynamic | Minimum | mm | ≥7.5xφ | ≥10xφ | |||||
| Parameter | Remarks | Symbol | Unit | IC230WC-12 | IC230WC-15 | IC230WC-18 | IC230WC-24 | IC230WC-30 | IC230WC-45 |
|---|---|---|---|---|---|---|---|---|---|
| Winding Type | S | S | S | S | S | S |
| Parameter | Remarks | Symbol | Unit | IC230WC-12 | IC230WC-15 | IC230WC-18 | IC230WC-24 | IC230WC-30 | IC230WC-45 |
|---|---|---|---|---|---|---|---|---|---|
| Winding Type | S | S | S | S | S | S |

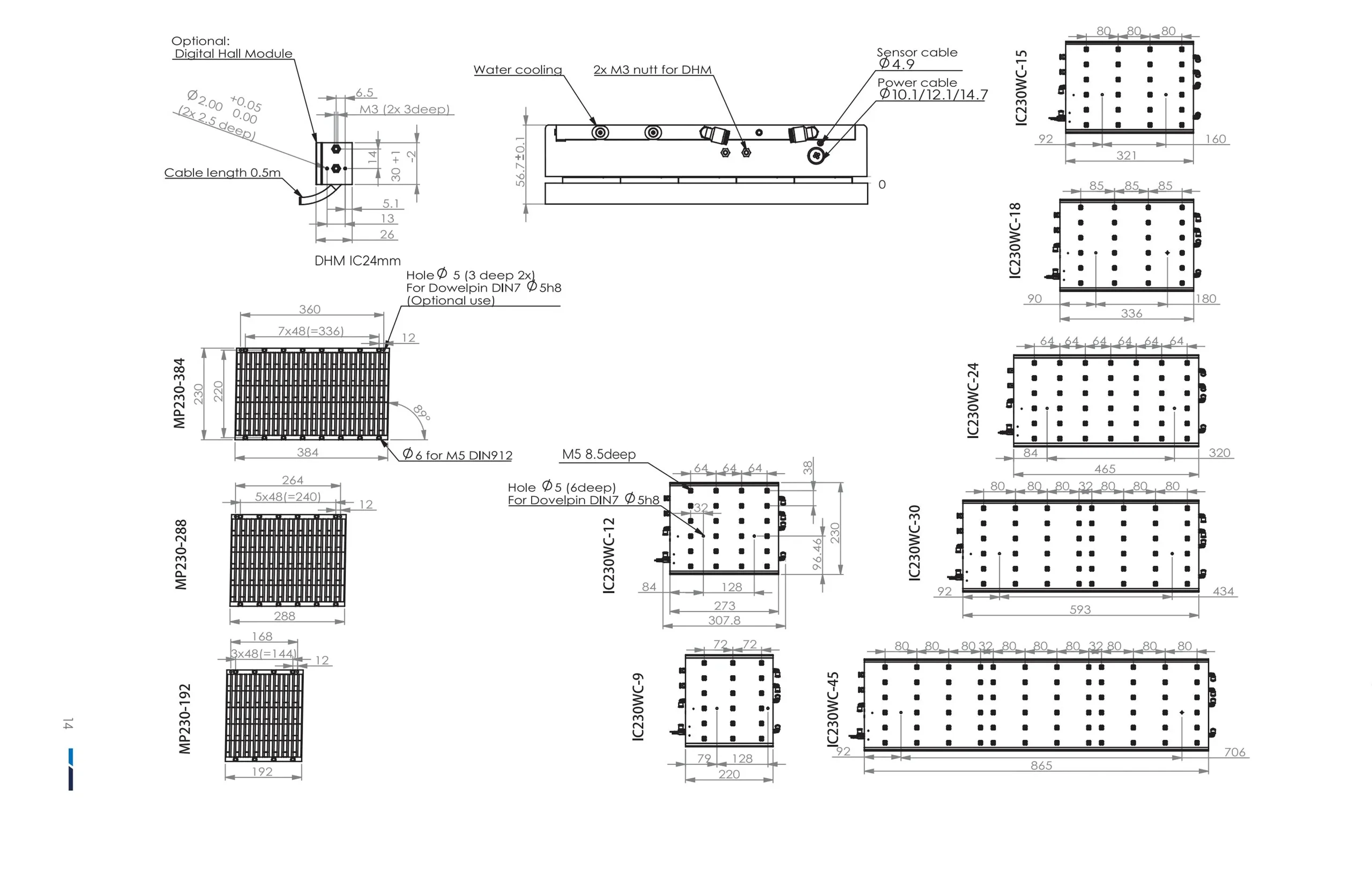

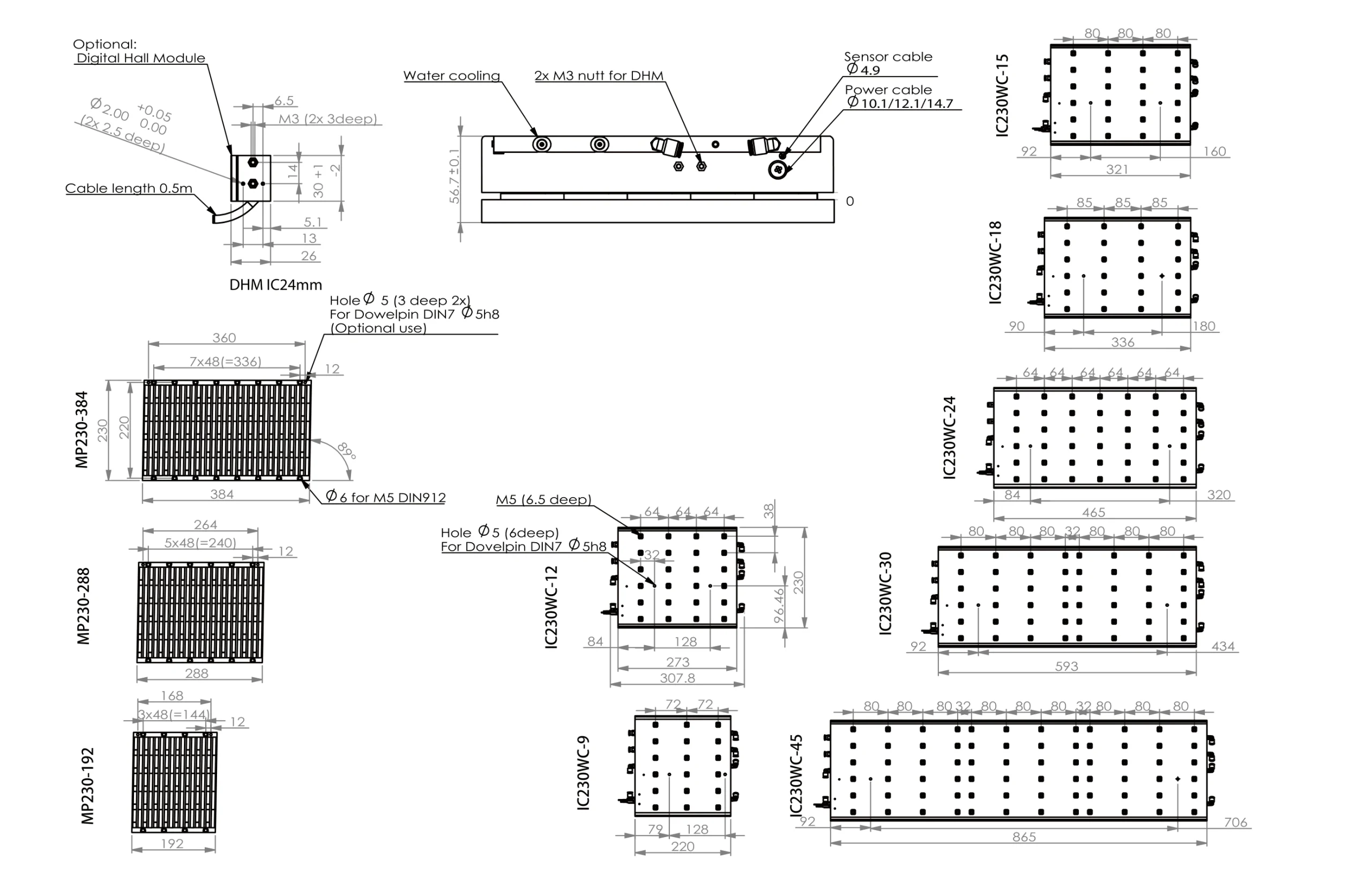

| Magnet Plate Mounting Dimensions | |||
|---|---|---|---|
| Lenght (mm) | 192 | 288 | 384 |
| M5 Bolts | 8 | 12 | 16 |
| Weight(Kg/m) | 34 | ||
| Magnet Plates can be jointed together without limits | |||
| Dig. Hall Sensor Connetions | ||
|---|---|---|
| 1 | 0V | Gray |
| 2 | 5~28V | Brown |
| 3 | Hall A | White |
| 4 | Hall B | Green |
| 5 | Hall C | Yellow |
| Motor Connetions | ||
|---|---|---|
| 1 | Phase U | Phase 1 |
| 2 | Phase V | Phase 2 |
| 3 | Phase W | Phase 3 |
| 4 | PE | Yellow-Green |
| Temp. Sensor Connetions | ||
|---|---|---|
| 1 | PTC 1KΩ | Brown |
| 2 | PTC 1KΩ | White |
| 3 | NTC | Yellow |
| 4 | NTC | Green |
