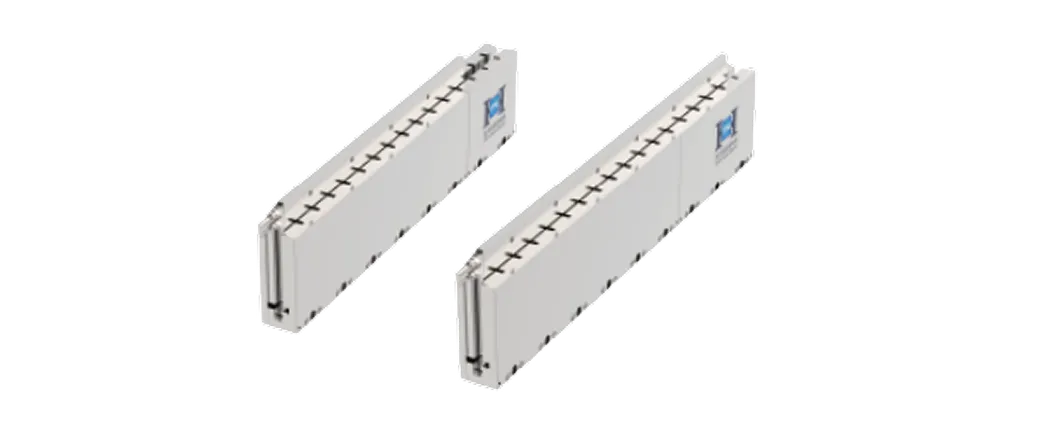

Discover advanced performance and application-specific advantages of our ILV150 Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.
| Parameter | Remarks | Symbol | Unit | ILV150-9 | ILV150-12 |
|---|---|---|---|---|---|
| Winding Type | N | N | |||
| Motor type | 3-phase permanent magnet synchronization | 220Vacrms (320Vdc) | |||
| Peak Force@20°C/s increase | Magnet@25°C | Fp | N | 2857 | 3809 |
| Continuous Thrust Passive Cooling* |
Coil@Tmax | Fc | N | 163 | 217 |
| Continuous Thrust Active Cooling* |
Coil@Tmax | Fc | N | 652 | 868 |
| Maximum Speed*** | @300Vdc | Vmax | m/s | 1.3 | 1.3 |
| Motor Force Constant | Mount. Sfc. @20°C | K | N/Arms | 168 | 168 |
| Motor Constant | Coils@25°C | S | N2/W | 2475 | 3244 |
| Parameter | Remarks | Symbol | Unit | ILV150-9 | ILV150-12 |
|---|---|---|---|---|---|
| Winding Type | N | S | |||
| Peak Current | Magnet @ 25°C | lp | Arms | 17 | 23 |
| Continuous Current Passive Cooling |
Coil@Tmax | lc | Arms | 1.0 | 1.3 |
| Continuous Current Active Cooling |
Coil@Tmax | lc | Arms | 3.9 | 5.2 |
| Back EMF | Phase-Phase peak | Bemf | V/M/S | 137 | 137 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 3.8 | 2.9 |
| Induction Per Phase | I<0.6lp | Lph | Mh | 11.4 | 8.7 |
| Electrical Time Constant | Coil@25°C | τe | Ms | 3 | 3 |
| Power Loss | All Coils | Pc | W | 223 | 301 |
| Parameter | Remarks | Symbol | Unit | ILV150-9 | ILV150-12 |
|---|---|---|---|---|---|
| Winding Type | N | S | |||
| Maximum Coil Temperature | Tmax | °C | 80 | 80 | |
| Thermal R | Coils To Mount. Sfc. | Rth | °C/W | 6.0 | 4.5 |
| Temp. Sensor | sfc. | PTC 1kΩ / NTC | |||
| Parameter | Remarks | Symbol | Unit | ILV150-9 | ILV150-12 |
|---|---|---|---|---|---|
| Winding Type | N | S | |||
| Coil Unit Weight | Ex. Cables | W | Kg | 2.8 | 3.7 |
| Coil Unit Length | Ex. Cables | L | Mm | 456.6 | 595.4 |
| Motor Attraction Force | Fa | N | 0 | ||
| Magnet Pitch | τ | Mm | 70 | ||
| Power Cable Type | 4*AWG18 (0.824mm²), PTFE/ETFE | ||||
| Sensor Cable Type | 4*AWG25 (0.162mm²), CPTFE/ETFE | ||||

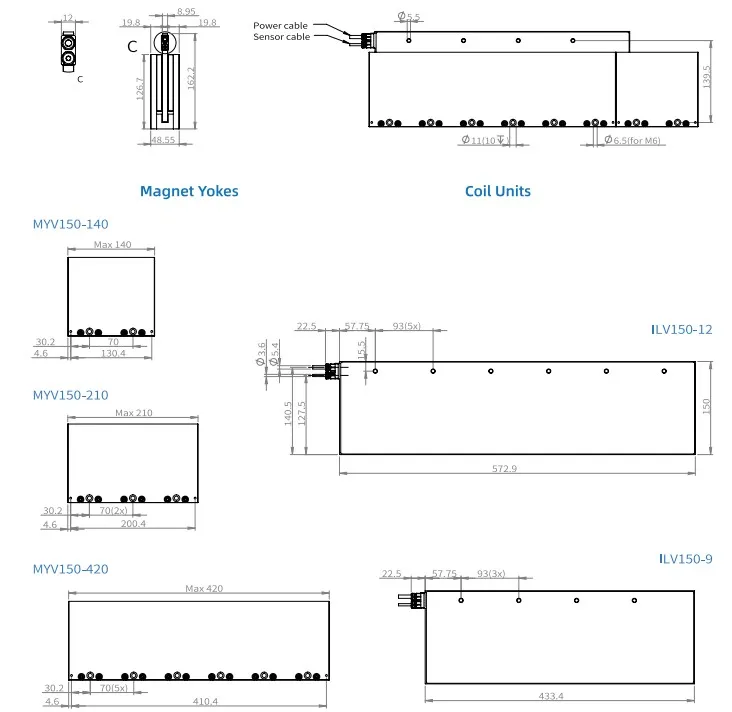

| Magnet Plate Mounting Dimensions | |||
|---|---|---|---|
| Length (mm) | 140 | 210 | 420 |
| M6 Bolts | 2 | 3 | 6 |
| Weight (Kg/m) | 33 | ||
| Magnet Plates can be jointed together without limits | |||
| Motorconnections | ||
|---|---|---|
| 1 | Phase U | Black |
| 2 | Phase V | Red |
| 3 | Phase W | White |
| 4 | PE | Yellow |
| Temperature Sensor connections | ||
|---|---|---|
| 1 | PTC 1KΩ | Brown |
| 2 | PTC 1KΩ | White |
| 3 | NTC | Yellow |
| 4 | NTC | Green |
