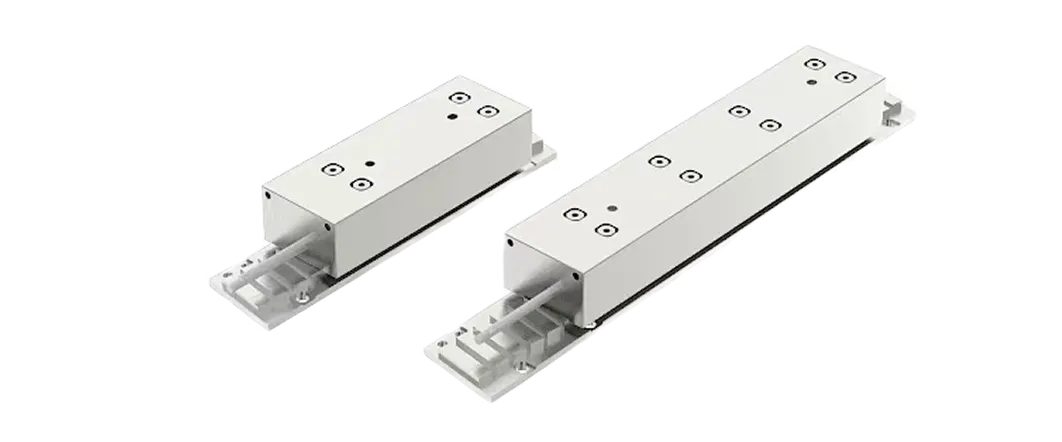

Discover advanced performance and application-specific advantages of our ICV50 Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.
| Parameter | Remarks | Symbol | Unit | ICV50-6 | ICV50-12 |
|---|---|---|---|---|---|
| Winding Type | S | S | |||
| Motor type | 3 phases synchronous Ironcore | 380Vacrms (560Vdc) | |||
| Peak Force@6℃/s increase | Magnet@25℃ | Fp | N | 232 | 464 |
| Continuous Force Passive Cooling | Coil@110℃ | Fc | N | 20 | 40 |
| Continuous Force Active Cooling | Coil@110℃ | Fc | N | 65 | 130 |
| Maximum Speed | @560Vdc | Vmax | m/s | 12 | 12 |
| Motor Force Constant | Mount. 5k@20℃ | K | N/Arms | 39 | 39 |
| Motor Constant | Coils@25℃ | S | N²/M | 188 | 376 |
| Parameter | Remarks | Symbol | Unit | ICV50-6 | ICV50-12 |
|---|---|---|---|---|---|
| Winding Type | S | S | |||
| Continuous Current Passive cooling | Coil@110℃ | Ic | Arms | 0.5 | 1.0 |
| Continuous Current Active cooling | Coil@110℃ | Ic | Arms | 1.7 | 3.3 |
| Back EMF | 25℃ +/-10% | Bemf | V/M/S | 32 | 32 |
| Resistance Per Phase | Coil@25℃ | Rph | Ω | 2.7 | 1.35 |
| Induction Per Phase | I<0.63Ip | Lph | mh | 17.6 | 8.8 |
| Coil@25℃ | Te | ms | 6.5 | 6.5 | |
| Power Loss | All coils | Pc | W | 29.3 | 58.5 |
| Parameter | Remarks | Symbol | Unit | ICV50-6 | ICV50-12 |
|---|---|---|---|---|---|
| Thermal R | Coils to mount. Sfc. | Rth | °C/W | 2.9 | 1.5 |
| Temp. Sensor | PTC 1kΩ / NTC10kΩ | ||||
| Parameter | Remarks | Symbol | Unit | ICV50-6 | ICV50-12 |
|---|---|---|---|---|---|
| Motor Attraction Force | Rms@0A | Fa | N | 500 | 900 |
| Magnet Pitch | N-N | Ï„ | mm | 24 | 24 |

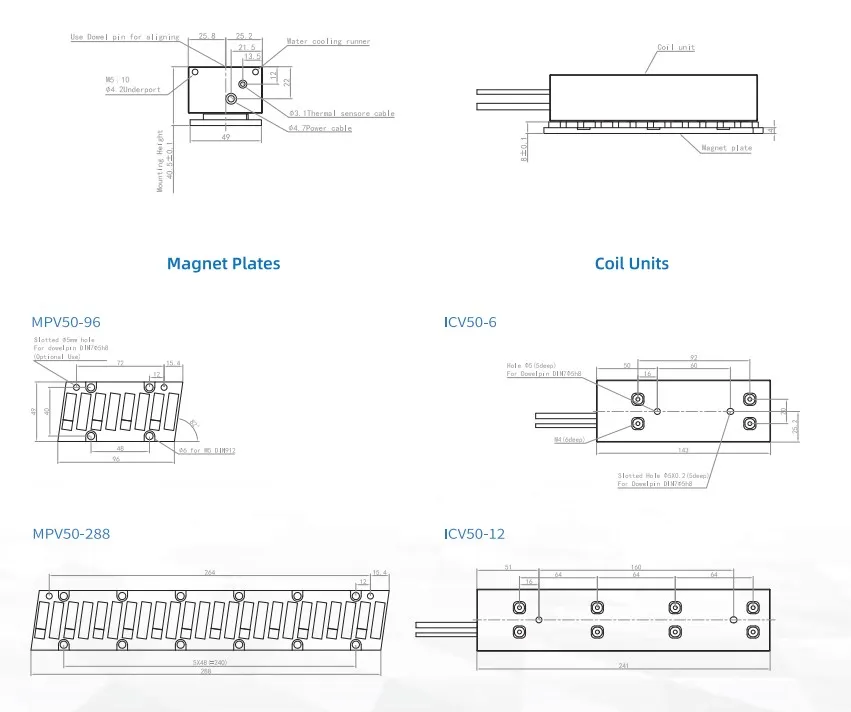

| Magnet Plate Mounting Dimensions | ||
|---|---|---|
| Length (mm) | 96 | 384 |
| M5 Bolts | 4 | 16 |
| Weight (Kg/m) | 2.05 | |
| Magnet Plates can be jointed together without limits | ||
| Motor connections | ||
|---|---|---|
| 1 | Phase U | Black |
| 2 | Phase V | Red |
| 3 | Phase W | White |
| 4 | PE | Yellow |
| Temperature Sensor connections | ||
|---|---|---|
| 1 | PTC 1KΩ | Brown |
| 2 | PTC 1KΩ | White |
| 3 | NTC | Yellow |
| 4 | NTC | Green |
