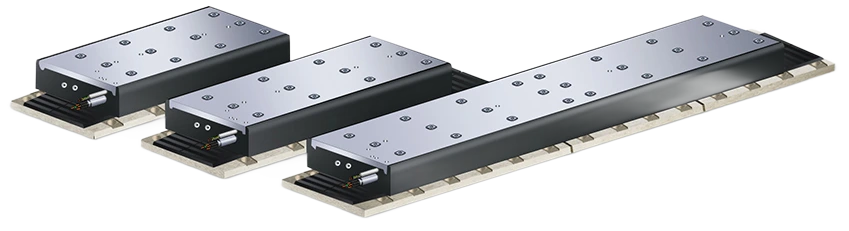

IC124 Ironcore Linear Motor – Powerful & Precise Motion
Discover advanced performance and application-specific advantages of our IC124 Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.
| Parameter | Remarks | Symbol | Unit | IC124-12 | IC124-15 | IC124-18 | IC124-24 | IC124-30 | IC124-45 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | N | S | N | S | N | S | N | S | N | S | N | S | |||
| Motor Type | phases synchronous Ironcore 380Vacrms(560Vdc) | ||||||||||||||
| Ultimate Farce | Magnet@25°C | Fu | N | 1900 | 1900 | 2375 | 2375 | 2850 | 2850 | 3800 | 3800 | 4750 | 4750 | 7125 | 7125 |
| Peak Force | Magnet@25°C | Fp | N | 1680 | 1680 | 2100 | 2100 | 2520 | 2520 | 3360 | 3360 | 4200 | 4200 | 6300 | 6300 |
| Continuous Force | Coil@110°C | Fc | N | 800 | 800 | 1000 | 1000 | 1200 | 1200 | 1600 | 1600 | 2000 | 2000 | 3000 | 3000 |
| Maximum Speed | @560V | Vmax | m/s | 3 | 6 | 3 | 6 | 3 | 6 | 3 | 6 | 3 | 6 | 3 | 6 |
| Motor Force Constant | Mount.Sfc.@20°C | K | N/Arms | 186.0 | 93.0 | 224.5 | 93.0 | 186.0 | 89.9 | 186.0 | 93.0 | 224.5 | 93.0 | 224.5 | 93.0 |
| Motor Constant | Coils@25°C | S | N2/W | 1760 | 1760 | 2200 | 2200 | 2640 | 2640 | 3520 | 3520 | 4400 | 4400 | 6600 | 6600 |
| Parameter | Remarks | Symbol | Unit | IC124-12 | IC124-15 | IC124-18 | IC124-24 | IC124-30 | IC124-45 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | N | S | N | S | N | S | N | S | N | S | N | S | |||
| Ultimate Current | Magnet@25°C | lu | Arms | 14 | 28 | 14 | 35 | 21 | 43 | 28 | 56 | 29 | 69 | 43 | 104 |
| Peak Current | Magnet@25°C | lp | Arms | 11 | 21 | 11 | 26 | 16 | 33 | 21 | 42 | 22 | 53 | 33 | 79 |
| Continuous Current | Coil@110°C | lc | Arms | 4 | 9 | 4 | 11 | 6 | 13 | 9 | 18 | 9 | 22 | 13 | 32 |
| Back EMF | Phase-Phase peak | Bemf | V/M/s | 152 | 76 | 183 | 76 | 152 | 73 | 152 | 76 | 183 | 76 | 183 | 76 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 6.35 | 1.59 | 7.55 | 1.27 | 4.24 | 1.02 | 3.2 | 0.8 | 3.78 | 0.64 | 2.53 | 0.43 |
| Induction Per Phase | l<0.63lp | Lph | Mh | 51 | 13 | 60 | 10 | 34 | 8 | 25.4 | 6.4 | 30 | 5 | 20 | 3 |
| Electrical Time Constant | Coil@25°C | Te | Ms | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Power Loss | All coils | Pc | W | 487 | 487 | 609 | 609 | 731 | 731 | 853 | 853 | 1218 | 1218 | 1827 | 1827 |
| Parameter | Remarks | Symbol | Unit | IC124-12 | IC124-15 | IC124-18 | IC124-24 | IC124-30 | IC124-45 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | N | S | N | S | N | S | N | S | N | S | N | S | |||
| Thermal R. | Coils to mount. Sfc. | Rth | °C/W | 0.17 | 0.17 | 0.13 | 0.13 | 0.11 | 0.11 | 0.08 | 0.08 | 0.07 | 0.07 | 0.04 | 0.04 |
| Temp. Sensor | PTC 1kΩ/NTC | ||||||||||||||
| Parameter | Remarks | Symbol | Unit | IC124-12 | IC124-15 | IC124-18 | IC124-24 | IC124-30 | IC124-45 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | N | S | N | S | N | S | N | S | N | S | N | S | |||
| Coil Unit Weight | ex.cables | W | kg | 4.6 | 4.6 | 5.5 | 5.5 | 6.5 | 6.5 | 9 | 9 | 11 | 11 | 16.5 | 16.5 |
| Coil Unit Length | ex.cables | L | Mm | 244 | 244 | 290 | 290 | 338 | 338 | 468 | 468 | 562 | 562 | 847 | 847 |
| Motor Attraction Force | Rms@0A | Fa | N | 3400 | 3400 | 4150 | 4150 | 4900 | 4900 | 6800 | 6800 | 8300 | 8300 | 12450 | 12450 |
| Magnet Pitch | N-N | τ | mm | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 2 | 24 | 24 | 24 | 24 |
| Power Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | 8.4(4G1.5mm2 AWG16) | 10.1(4G2.5mm2 AWG14) | 12.1(4G4mm2) | |||||||||
| Sensor Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | 4.9(4G0.14mm2 AWG26) | |||||||||||
| Cable life | Minimum | Cycles | >5,000,000 | 3-5millions | |||||||||||
| Bending Radius Static | Minimum | mm | ≥4xφ | ≥5xφ | |||||||||||
| Bending Radius Dynamic | Minimum | mm | ≥7.5xφ | ≥10xφ | |||||||||||
| Parameter | Remarks | Symbol | Unit | IC124-12 | IC124-15 | IC124-18 | IC124-24 | IC124-30 | IC124-45 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | N | S | N | S | N | S | N | S | N | S | N | S | |||
| Parameter | Remarks | Symbol | Unit | IC124-12 | IC124-15 | IC124-18 | IC124-24 | IC124-30 | IC124-45 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | N | S | N | S | N | S | N | S | N | S | N | S | |||

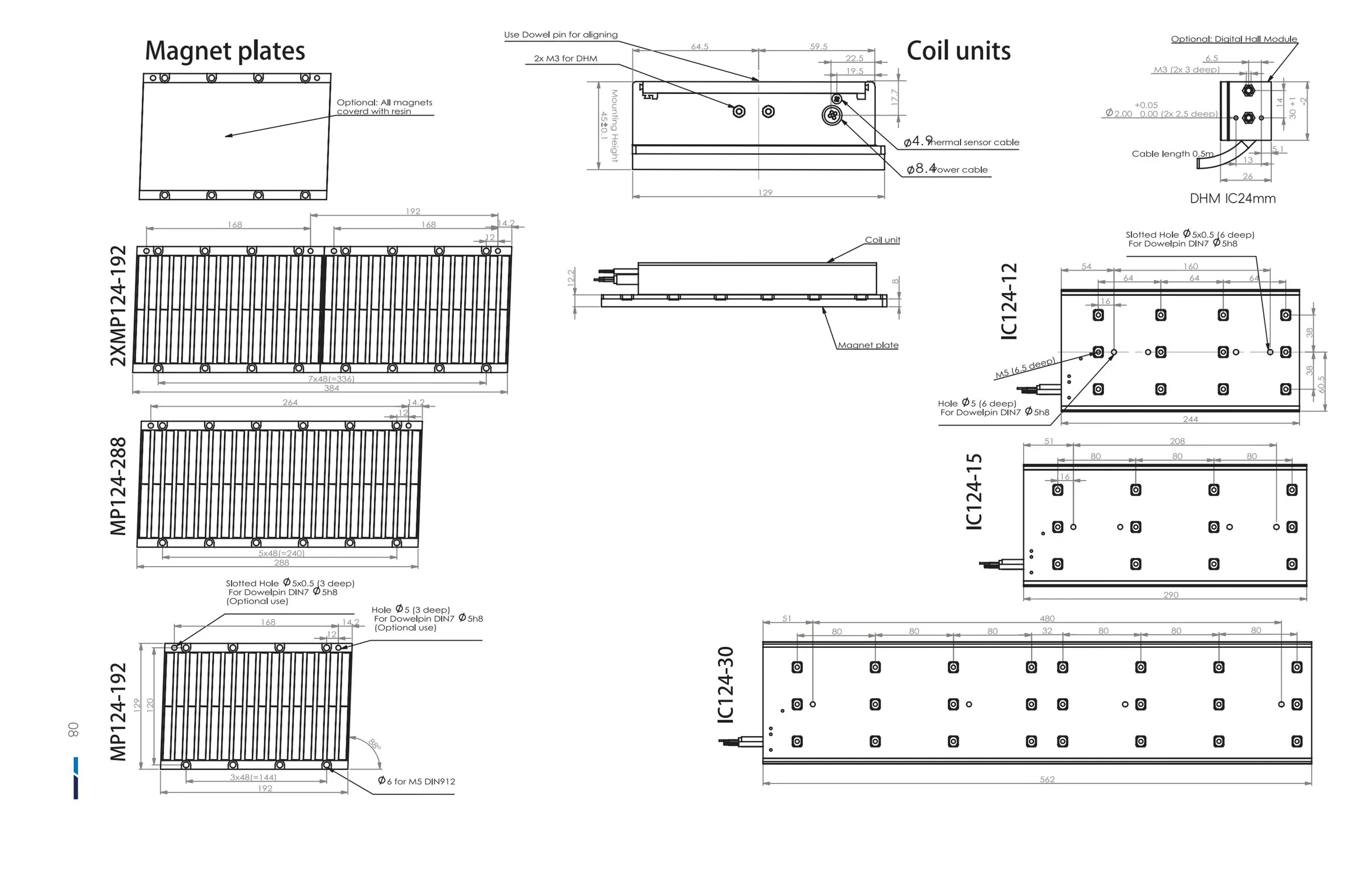

| Magnet Plate Mounting Dimensions | ||
|---|---|---|
| Lenght (mm) | 192 | 288 |
| M5 Bolts | 8 | 12 |
| Weight(Kg/m) | 10.45 | |
| Magnet Plates can be jointed together without limits | ||
| Dig. Hall Sensor Connetions | ||
|---|---|---|
| 1 | 0V | Gray |
| 2 | 5~28V | Brown |
| 3 | Hall A | White |
| 4 | Hall B | Green |
| 5 | Hall C | Yellow |
| Motor Connetions | ||
|---|---|---|
| 1 | Phase U | Phase 1 |
| 2 | Phase V | Phase 2 |
| 3 | Phase W | Phase 3 |
| 4 | PE | Yellow-Green |
| Temp. Sensor Connetions | ||
|---|---|---|
| 1 | PTC 1KΩ | Brown |
| 2 | PTC 1KΩ | White |
| 3 | NTC | Yellow |
| 4 | NTC | Green |
