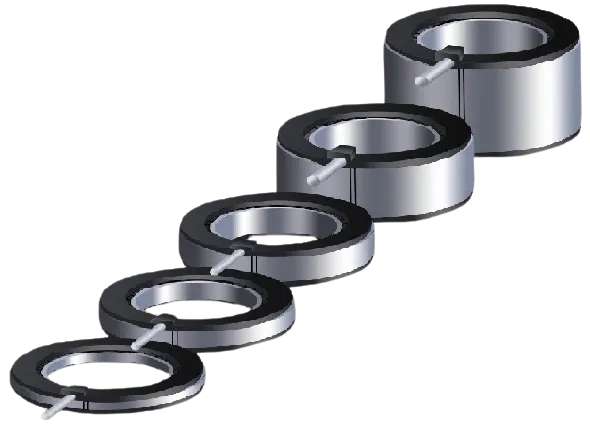

TM133 Torque Motor – High Torque, Smooth Direct Drive | ITG
Discover advanced performance and application-specific advantages of our TM133 Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.
| Parameter | Remarks | Symbol | Unit | TM133-17 | TM133-25 | TM133-34 | TM133-60 | TM133-92 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | N | Y | Z | N | Y | Z | N | Z | N | Y | |||
| Motor type | 3 phases synchronous Ironcore 230Vac rms (320Vdc) | 380Vac rms (600Vdc) | |||||||||||
| Peak torque | Magnet@25°C | Tp | Nm | 6.72 | 7.68 | 7.68 | 14.28 | 16.20 | 16.20 | 24.72 | 24.72 | 66.60 | 110 |
| Continuous torque | Coil@110°C | Tc | Nm | 3.2 | 3.2 | 3.2 | 7.6 | 7.8 | 7.8 | 13.0 | 12.4 | 28 | 46.7 |
| Maximum Speed | @Tc | nmax | rpm | 3045 | 5345 | 9283 | 1521 | 2714 | 4642 | 843 | 3150 | 594 | 1018 |
| Motor Torque Constant | Up to lc | Kt | Nm/Arms | 0.70 | 0.40 | 0.23 | 1.39 | 0.78 | 0.46 | 2.51 | 0.67 | 6.68 | 3.90 |
| Motor Constant | Coils@25°C | Km | Nm2/W | 0.066 | 0.070 | 0.067 | 0.189 | 0.201 | 0.203 | 0.394 | 0.352 | 1.236 | 1.449 |
| Parameter | Remarks | Symbol | Unit | TM133-17 | TM133-25 | TM133-34 | TM133-60 | TM133-92 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | N | Y | Z | N | Y | Z | N | Z | N | Y | |||
| Peak Current | Magnet@25°C | lp | Arms | 13.1 | 26.2 | 45.5 | 13.9 | 28.1 | 48 | 13.3 | 49.7 | 13.5 | 38.1 |
| Max.Continuous Current | Coil@110°C | lc | Arms | 4.6 | 8.1 | 14 | 5.5 | 10 | 17.1 | 5.2 | 17 | 4 | 12 |
| Back EMF Phase to Phase peak | 25℃+/-10% | Kep | V/krpm | 60 | 34 | 20 | 120 | 67 | 39 | 216 | 58 | 575 | 336 |
| Back EMF Phase to Phase RMS | 25℃+/-10% | Ke | V/krpm | 42 | 24 | 14 | 85 | 47 | 28 | 153 | 41 | 407 | 237 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 2.44 | 0.75 | 0.26 | 3.42 | 1.01 | 0.34 | 5.33 | 0.43 | 12.05 | 4.56 |
| Induction Per Phase | I<0.63lp | Lph | Mh | 4.88 | 1.65 | 0.55 | 7.87 | 2.53 | 0.82 | 14.92 | 1.11 | 46.98 | 18.24 |
| Electrical Time Constant | Coil@25°C | τe | Ms | 2.0 | 2.2 | 2.1 | 2.3 | 2.5 | 2.4 | 2.8 | 2.6 | 3.9 | 4.0 |
| Max. Continuous Power Loss | All coils | Pc | W | 201.7 | 191.0 | 199.7 | 397.6 | 393.9 | 389.1 | 557.6 | 563.8 | 824.4 | 2546.7 |
| Poles | Nmag | nr | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | |
| Parameter | Remarks | Symbol | Unit | TM133-17 | TM133-25 | TM133-34 | TM133-60 | TM133-92 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | N | Y | Z | N | Y | Z | N | Z | N | Y | |||
| Thermal Resistance | Coils to mount. Sfc. | Rth | °C/W | 0.5 | 0.5 | 0.5 | 0.28 | 0.28 | 0.28 | 0.2 | 0.2 | 0.13 | 0.095 |
| Temperature Sensor | Optional PTC 1kΩ/NTC | ||||||||||||

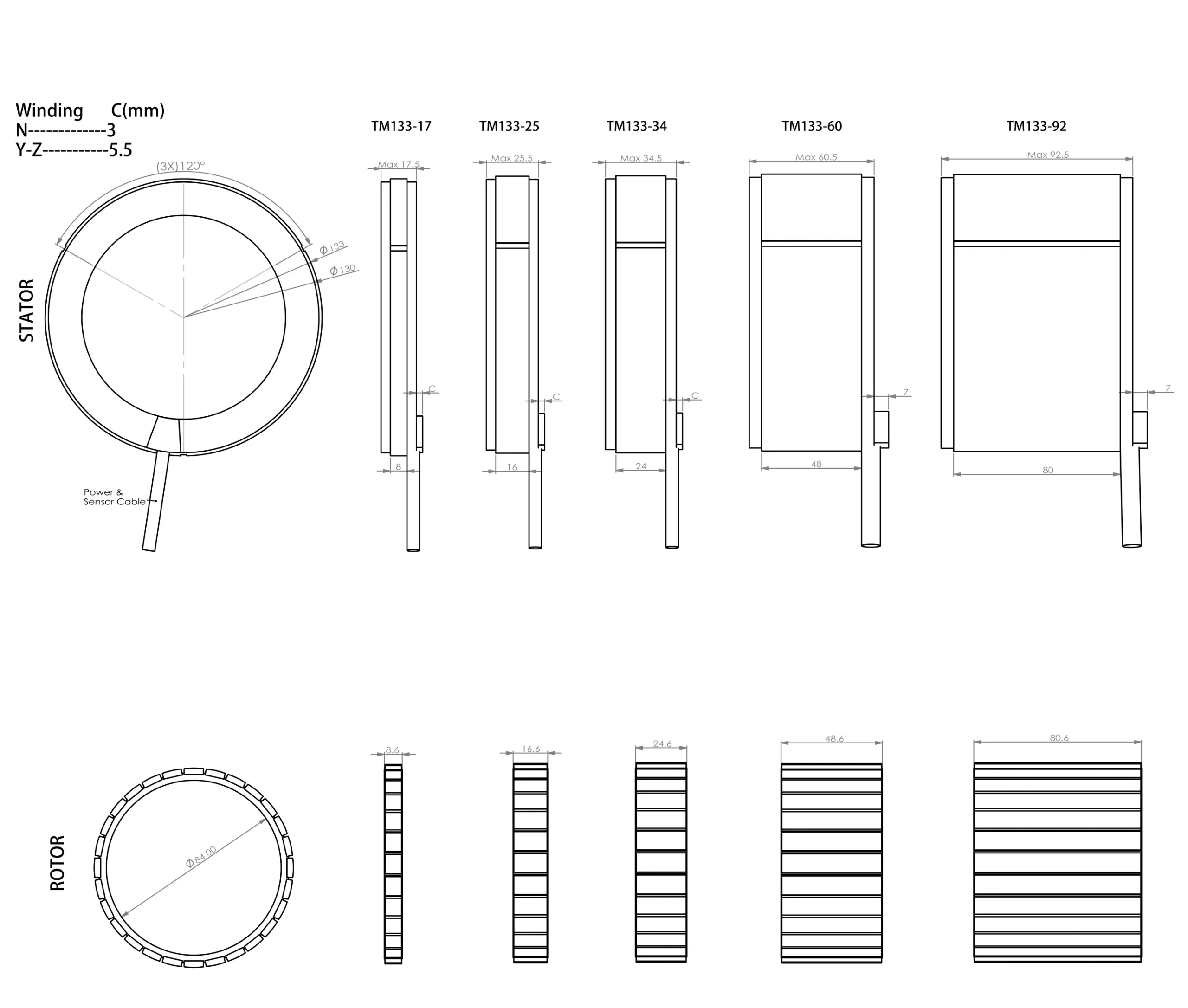

| Parameter | Remarks | Symbol | Unit | TM133-17 | TM133-25 | TM133-34 | TM133-60 | TM133-92 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding type | N | Y | Z | N | Y | Z | N | Z | N | Y | |||
| Stator outer diameter | Ods | mm | 133 | ||||||||||
| Rotor inner diameter | Idr | mm | 84 | ||||||||||
| Rotor inertia | JR | Kg*m² | 2.10E-04 | 4.20E-04 | 6.20E-04 | 1.20E-03 | 1.80E-03 | ||||||
| gross weight | Rotor+stator ex.cables | W | kg | 0.55 | 0.955 | 1.37 | 2.75 | 4.3 | |||||
| Power line type | length 0.5m | Diameter | mm(mm²) | 6.6(4G0.5mm²) | 8.4(4G1.5mm²) | 6.6(4G0.5mm²) | 8.4(4G1.5mm²) | 6.6(4G0.5mm²) | 8.4(4G1.5mm²) | 8.4(4G1.5mm²) | |||
| Parameter | Remarks | Symbol | Unit | TM133-17 | TM133-25 | TM133-34 | TM133-60 | TM133-92 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | N | Y | Z | N | Y | Z | N | Z | N | Y | |||
| Parameter | Remarks | Symbol | Unit | TM133-17 | TM133-25 | TM133-34 | TM133-60 | TM133-92 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | N | Y | Z | N | Y | Z | N | Z | N | Y | |||
