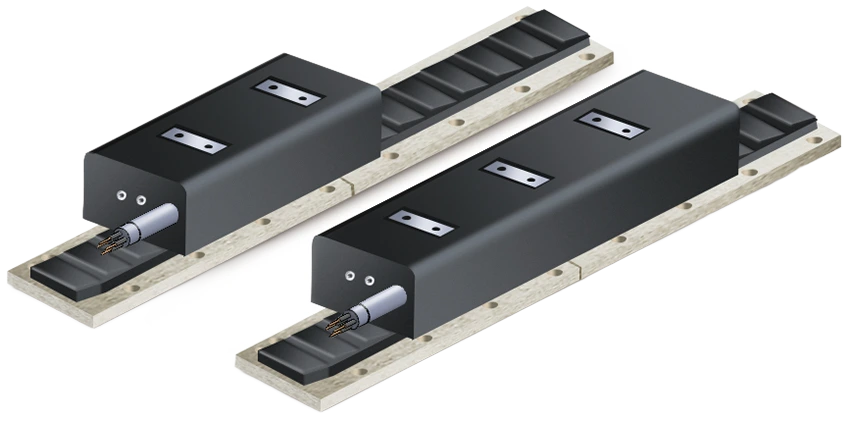

IC40 Series Ironcore Linear Motor – High Force & Efficiency
Discover advanced performance and application-specific advantages of our IC40 Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.
| Parameter | Remarks | Symbol | Unit | IC40-3 | IC40-6 |
|---|---|---|---|---|---|
| Winding Type | S | S | |||
| Motor Type | 3 phases synchronous Ironcore | 220Vacrms (320Vdc) | |||
| Ultimate Farce | Magnet@25°C | Fu | N | 110 | 220 |
| Peak Force | Magnet@25°C | Fp | N | 95 | 190 |
| Continuous Force | Coil@110°C | Fc | N | 45 | 90 |
| Maximum Speed | @320V | Vmax | m/s | 6 | 6 |
| Motor Force Constant | Mount.Sfc.@20°C | K | N/Arms | 30 | 30 |
| Motor Constant | Coils@25°C | S | N2/W | 40 | 80 |
| Parameter | Remarks | Symbol | Unit | IC40-3 | IC40-6 |
|---|---|---|---|---|---|
| Winding Type | S | S | |||
| Ultimate Current | Magnet@25°C | lu | Arms | 5.0 | 9.9 |
| Peak Current | Magnet@25°C | lp | Arms | 3.7 | 7.3 |
| Continuous Current | Coil@110°C | lc | Arms | 1.5 | 3.0 |
| Back EMF | Phase-Phase peak | Bemf | V/M/s | 24 | 24 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 5 | 2.5 |
| Induction Per Phase | l<0.63lp | Lph | Mh | 30 | 15 |
| Electrical Time Constant | Coil@25°C | τe | Ms | 6 | 6 |
| Power Loss | All coils | Pc | W | 66 | 132 |
| Parameter | Remarks | Symbol | Unit | IC40-3 | IC40-6 |
|---|---|---|---|---|---|
| Winding Type | S | S | |||
| Thermal R. | Coils to mount. Sfc. | Rth | °C/W | 1.85 | 0.94 |
| Temp. Sensor | Optional PTC 1kΩ/NTC | ||||
| Parameter | Remarks | Symbol | Unit | IC40-3 | IC40-6 |
|---|---|---|---|---|---|
| Winding Type | S | S | |||
| Coil Unit Weight | ex.cables | W | kg | 0.4 | 0.7 |
| Coil Unit Length | ex.cables | L | Mm | 96 | 160 |
| Motor Attraction Force | Rms@0A | Fa | N | 220 | 500 |
| Magnet Pitch | N-N | T | mm | 32 | 32 |
| Power Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | 6.6(4G0.5mm2 AWG21) | |
| Sensor Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | 4.9(4*0.14mm2 AWG26) | |
| Cable life | Minimum | Cycles | >5,000,000 | ||
| Bending Radius Static | Minimum | mm | ≥4xφ | ||
| Bending Radius Dynamic | Minimum | mm | ≥7.5xφ | ||
| Parameter | Remarks | Symbol | Unit | IC40-3 | IC40-6 |
|---|---|---|---|---|---|
| Winding Type | S | S |
| Parameter | Remarks | Symbol | Unit | IC40-3 | IC40-6 |
|---|---|---|---|---|---|
| Winding Type | S | S |

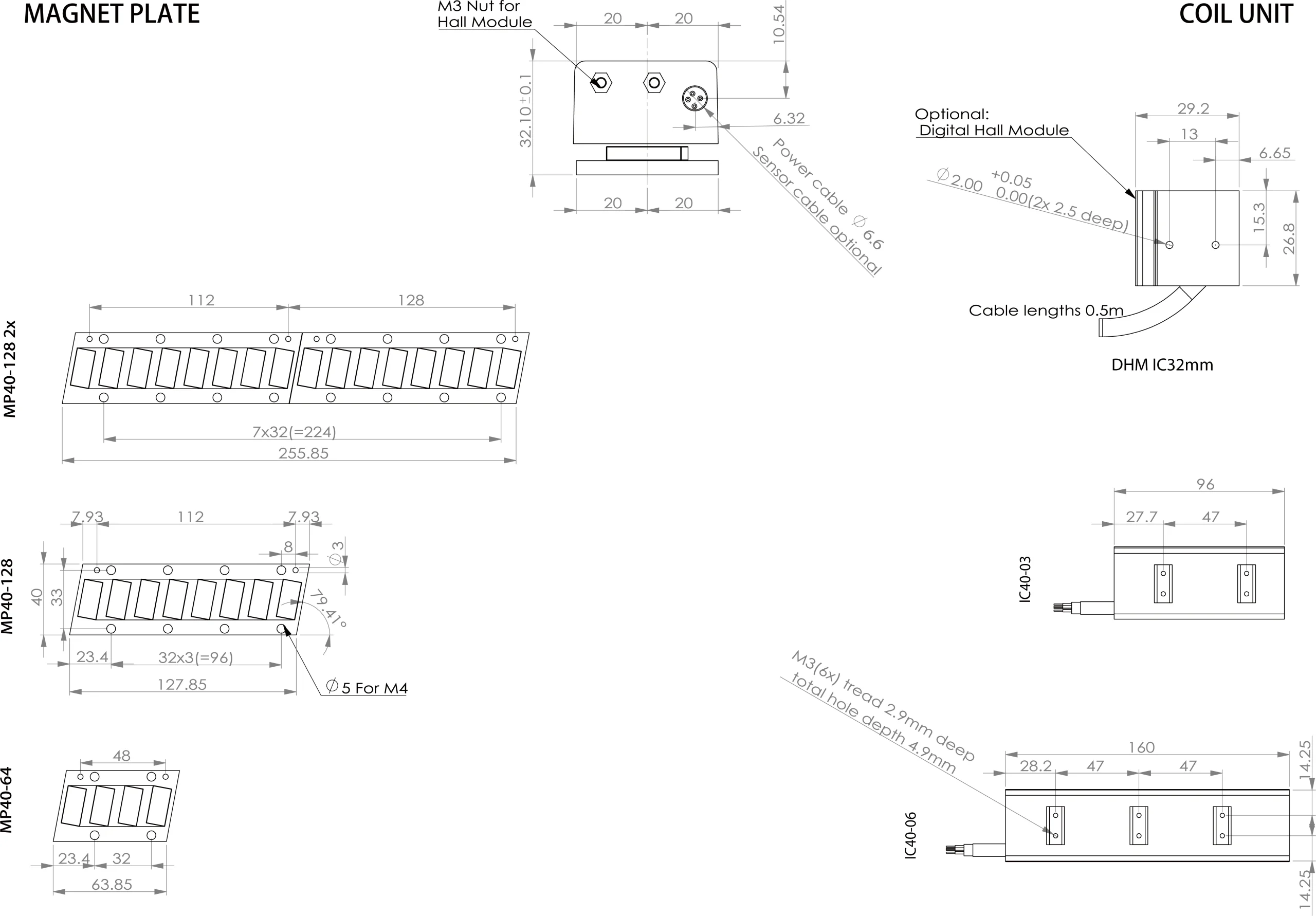

| Magnet Plate Mounting Dimensions | ||
|---|---|---|
| Length (mm) | 64 | 128 |
| Bolt | 4 | 8 |
| Weight (Kg/m) | 1.6 | |
| Magnet Plates can be jointed together without limits | ||
| Dig. Hall sensor connections | ||
|---|---|---|
| 1 | 0V | Gray |
| 2 | 5~28V | Brown |
| 3 | Hall A | White |
| 4 | Hall B | Green |
| 5 | Hall C | Yellow |
| Motor connections | ||
|---|---|---|
| 1 | Phase U | Phase 1 |
| 2 | Phase V | Phase 2 |
| 3 | Phase W | Phase 3 |
| 4 | PE | Yellow-Green |
| Temperature Sensor connections | ||
|---|---|---|
| 1 | PTC 1KΩ | Brown |
| 2 | PTC 1KΩ | White |
| 3 | NTC | Yellow |
| 4 | NTC | Green |
