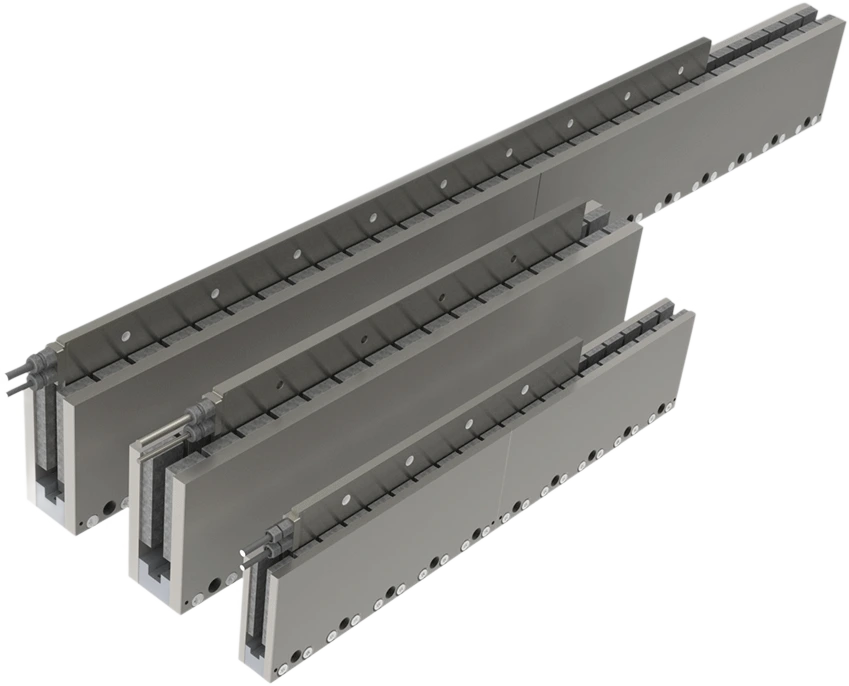

ILV109 Vacuum Linear Motor – Long Stroke, Ultra Clean | ITG
Discover advanced performance and application-specific advantages of our ILV109 Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.
| Parameter | Remarks | Symbol | Unit | ILV109-9 | ILV109-18 |
|---|---|---|---|---|---|
| Winding Type | N | S | |||
| Motor type, maximum voltage Phase | 3-phase permanent magnet synchronization | Vac rms (Vdc) | 230 (325) | ||
| Peak thrust @ 20°C | Magnet@25°C | Fp | N | 2100 | 4200 |
| Continuous Thrust Passive Cooling* | @ Tmax | Fc | N | 40.5 | 81 |
| Continuous Thrust Active Cooling* | @ Tmax | Fc | N | 213.5 | 427 |
| Maximum Speed*** | @ 300V | Vmax | m/s | 2.7 | 2.7 |
| Motor Thrust Constant | Coils @ 20°C | K | N/Arms | 117.5 | 117.5 |
| Motor Constant | Coils @ 25°C | S | N2/W | 871 | 1742 |
| Parameter | Remarks | Symbol | Unit | ILV109-9 | ILV109-18 |
|---|---|---|---|---|---|
| Winding Type | N | S | |||
| Peak Current | Magnet @ 25°C | lp | Arms | 17.1 | 34.2 |
| Continuous Current Passive Cooling | Coils @ Tmax | lc | Arms | 0.345 | 0.69 |
| Continuous Current Active Cooling | Coils @ Tmax | lc | Arms | 1.82 | 3.64 |
| Back EMF | Bemf | Vdc/m/s | 96 | 96 | |
| Resistance Per phase | Coils @ 25°C Ex. Cable | Rph | Ω | 5.3 | 2.6 |
| Induction Per Phase | I<0.6lp | Lph | Mh | 7.2 | 3.6 |
| Electrical Time Constant | Coil@25°C | τe | Ms | 1.4 | 1.4 |
| Power Loss | All Coils | Pc | W | 59 | 118 |
| Parameter | Remarks | Symbol | Unit | ILV109-9 | ILV109-18 |
|---|---|---|---|---|---|
| Winding Type | N | S | |||
| The Maximum Permissible Temperature Of The Coil | Tmax | °C | 60 | 60 | |
| Thermal R | Coils To Mount. Sfc. | Rth | °C/W | 0.64 | 0.32 |
| Temp. Sensor | PTC 1kΩ / NTC | ||||
| Parameter | Remarks | Symbol | Unit | ILV109-9 | ILV109-18 |
|---|---|---|---|---|---|
| Winding Type | N | S | |||
| Coil Unit Weight | Ex. Cables | W | Kg | 1.7 | 3.4 |

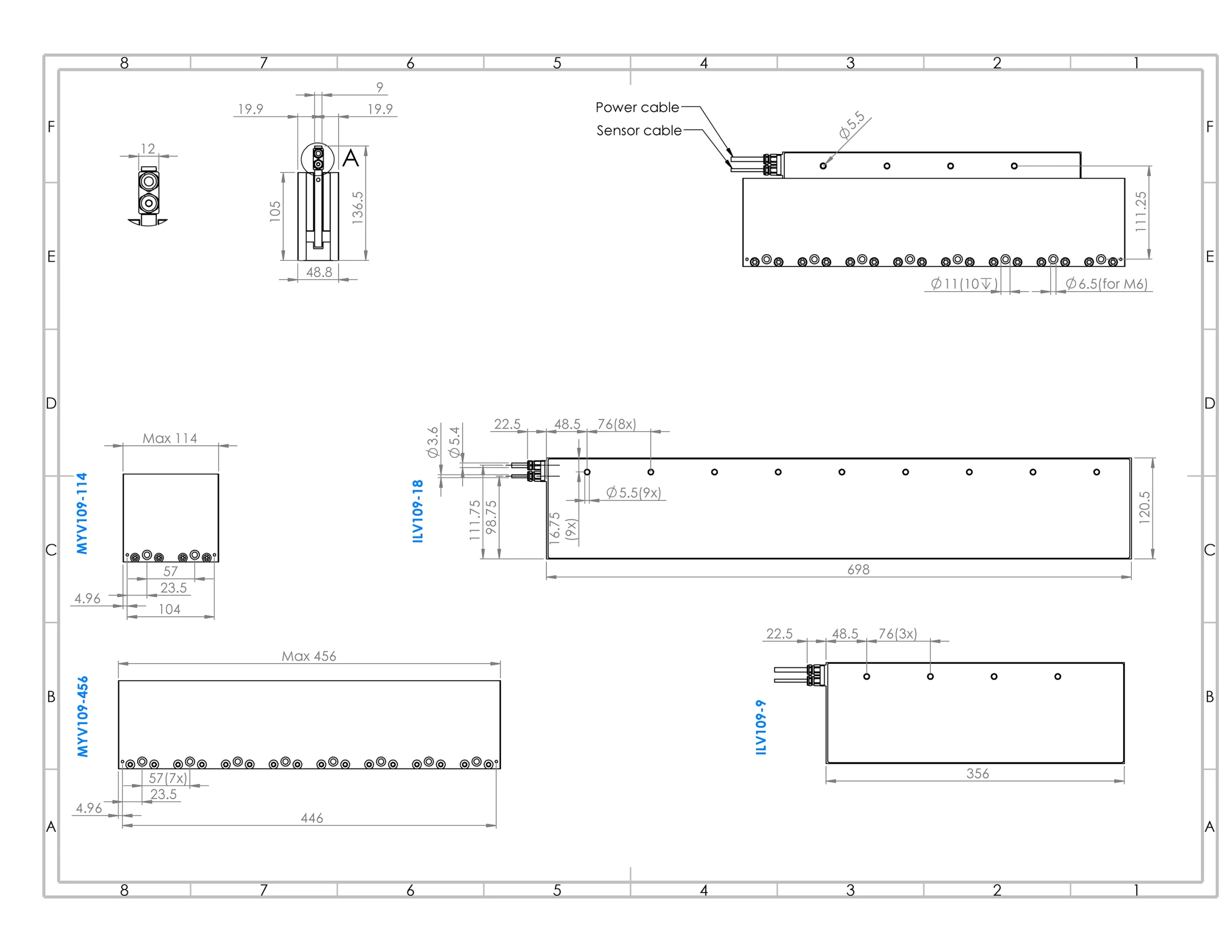

| Coil Unit Length | Ex. Cables | L | Mm | 356 | 698 |
| Motor Attraction Force | Fa | N | 0 | 0 | |
| Magnet Pitch | τ | Mm | 57 | ||
| Power Cable Type | 4*AWG18 (0.824mm²), PTFE/ETFE | ||||
| Sensor Cable Type | 4*AWG25, PTFE/ETFE | ||||
| Parameter | Remarks | Symbol | Unit | ILV109-9 | ILV109-18 |
|---|---|---|---|---|---|
| Winding Type | N | S | |||
| Parameter | Remarks | Symbol | Unit | ILV109-9 | ILV109-18 |
|---|---|---|---|---|---|
| Winding Type | N | S | |||
