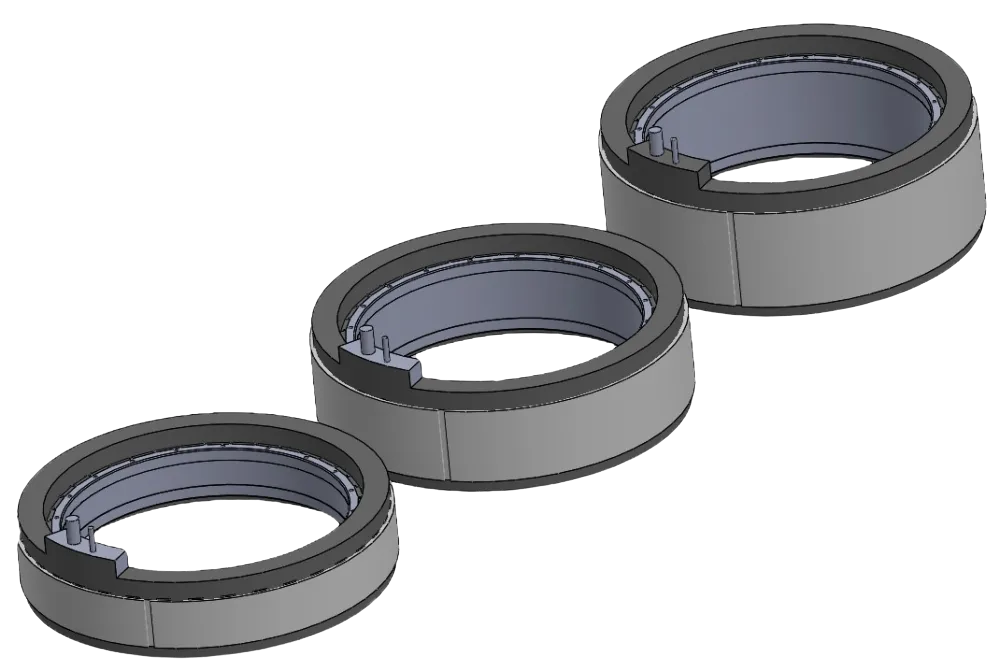

TM290 Torque Motor – High Torque for Demanding Systems | ITG
Discover advanced performance and application-specific advantages of our TM290 Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.
| Parameter | Remarks | Symbol | Unit | TM290-65 | TM290-85 | TM290-105 |
|---|---|---|---|---|---|---|
| Winding Type | N | N | N | |||
| Motor type | 3 phases synchronous Ironcore ≥380Vac rms(560Vdc) | |||||
| Peak torque | Magnet@25°C | Tp | Nm | 400 | 600 | 800 |
| Continuous torque | Coil@110°C | Tc | Nm | 145 | 228 | 315 |
| Stall torque | Coil@110°C | Ts | Nm | 102 | 160 | 221 |
| Maximum Speed | @Tc@560Vdc | nmax | rpm | 185 | 123 | 95 |
| Motor Torque Constant | up to lc | Kt | Nm/Arms | 20 | 30 | 39.5 |
| Motor Constant | Coils@25°C | Km | Nm2/W | 22.599 | 38.071 | 52.854 |
| Parameter | Remarks | Symbol | Unit | TM290-65 | TM290-85 | TM290-105 |
|---|---|---|---|---|---|---|
| Winding Type | N | N | N | |||
| Peak Current | Magnet@25°C | lp | Arms | 27.0 | 27.0 | 27.4 |
| Max.Continuous Current | Coil@110°C | lc | Arms | 7.3 | 7.6 | 8.0 |
| Back EMF Phase to Phase peak | 25℃+/-10% | Kep | V/krpm | 1722 | 2583 | 3401 |
| Back EMF Phase to Phase RMS | 25℃+/-10% | Ke | V/krpm | 1218 | 1827 | 2405 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 5.90 | 7.88 | 9.84 |
| Induction Per Phase | I<0.63lp | Lph | Mh | 23.5 | 34.0 | 45.0 |
| Electrical Time Constant | Coil@25°C | τe | Ms | 4.0 | 4.3 | 4.6 |
| Max. Continuous Power Loss | All coils | Pc | W | 1209 | 1775 | 2441 |
| Poles | Nmag | nr | 38.0 | 38.0 | 38.0 |
| Parameter | Remarks | Symbol | Unit | TM290-65 | TM290-85 | TM210-195 |
|---|---|---|---|---|---|---|
| Winding Type | N | N | N | |||
| Thermal Resistance | Coils to mount. Sfc. | Rth | °C/W | 0.051 | 0.037 | 0.053 |
| Temperature Sensor | Optional PTC 1kΩ/NTC | |||||
| Parameter | Remarks | Symbol | Unit | TM290-65 | TM290-85 | TM290-85 |
|---|---|---|---|---|---|---|
| Winding Type | N | N | N | |||

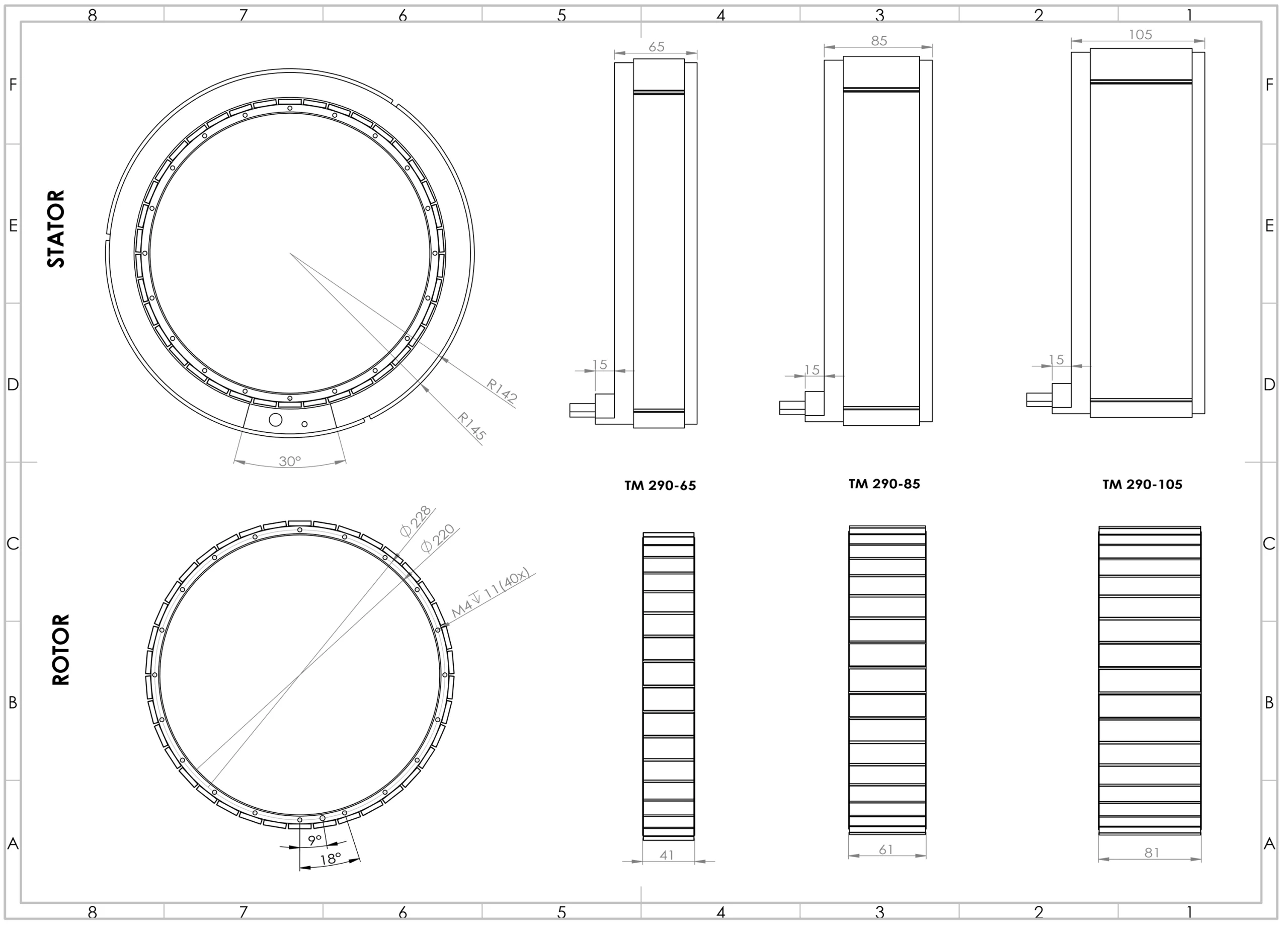

| Stator OD | Ods | mm | 290 | |||
| Rotor ID | lds | mm | 220 | |||
| Rotor inertia | JR | Kg*m² | 3.10E-02 | 4.60E-02 | 6.10E-02 | |
| Rotor Mass | Wr | kg | 2.3 | 3.5 | 4.7 | |
| Total Mass | Excluding cables | Ws | kg | 8.3 | 11.8 | 15.5 |
| Parameter | Remarks | Symbol | Unit | TM290-65 | TM290-85 | TM290-105 |
|---|---|---|---|---|---|---|
| Winding Type | N | N | N |
| Parameter | Remarks | Symbol | Unit | TM290-65 | TM290-85 | TM290-105 |
|---|---|---|---|---|---|---|
| Winding Type | N | N | N |
