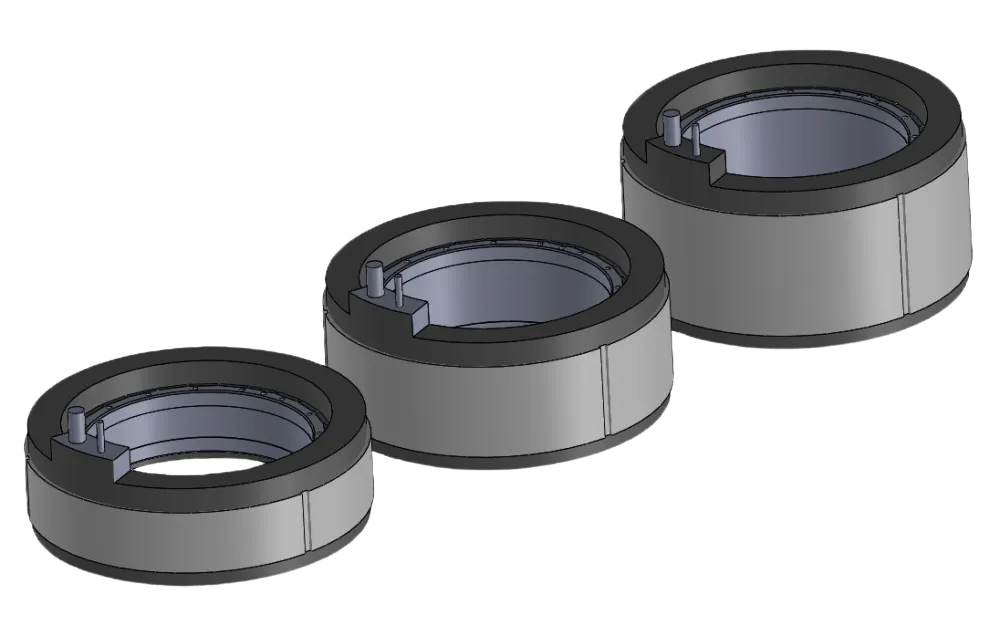

TM210 Torque Motor – Heavy-Duty, Accurate Motion Control
Discover advanced performance and application-specific advantages of our TM210 Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.
| Parameter | Remarks | Symbol | Unit | TM210-65 | TM210-85 | TM210-105 |
|---|---|---|---|---|---|---|
| Winding Type | N | N | N | |||
| Motor type | 3 phases synchronous Ironcore≥380Vac rms(560Vdc) | |||||
| Peak torque | Magnet@25°C | Tp | Nm | 175 | 260 | 350 |
| Continuous torque | Coil@110°C | Tc | Nm | 68 | 105 | 145 |
| Stall torque | Coil@110°C | Ts | Nm | 48 | 74 | 102 |
| Maximum Speed | @Tc@560Vdc | nmax | rpm | 426 | 283 | 212 |
| Motor Torque Constant | up tolc | Kt | Nm/Arms | 8.7 | 13.1 | 17.50 |
| Motor Constant | Coils@25°C | Km | Nm2/W | 6.500 | 10.896 | 15.705 |
| Parameter | Remark | Symbol | Unit | TM210-65 | TM210-85 | TM210-105 |
|---|---|---|---|---|---|---|
| Winding type | N | N | N | |||
| Peak current | Magnet@25°C | lp | Arms | 27.2 | 26.8 | 27.0 |
| Maximum continuous current | Coil@110°C | lc | Arms | 7.8 | 8.0 | 8.3 |
| Back EMF Constant | 25℃+/-10% | Kep | V/krpm | 749 | 1128 | 1507 |
| Back EMF Constant | 25℃+/-10% | Ke | V/krpm | 530 | 798 | 1066 |
| Single phase resistance | Coil@25°C | R | Ω | 3.93 | 5.25 | 6.50 |
| Single-phase inductance | I<0.63lp | LqCy | Mh | 15.5 | 22.0 | 28.0 |
| Electrical time constant | Coil@25°C | τe | Ms | 4.0 | 4.2 | 4.3 |
| Maximum continuous power consumption | All coils | Pc | W | 924.8 | 1270 | 1685 |
| Number of poles | Nmag | nr | 26 | 26 | 26 |
| Parameter | Remarks | Symbol | Unit | TM210-65 | TM210-85 | TM210-105 |
|---|---|---|---|---|---|---|
| Winding type | N | N | N | |||
| Thermal Resistance | Coils to mount. Sfc. | Rth | °C/W | 0.097 | ||
| Temperature Sensor | Tempeature Cut-off | Optional PTC 1kΩ/NTC | ||||
| Parameter | Remarks | Symbol | Unit | TM210-65 | TM210-85 | TM210-85 |
|---|---|---|---|---|---|---|
| Winding type | N | N | N | |||

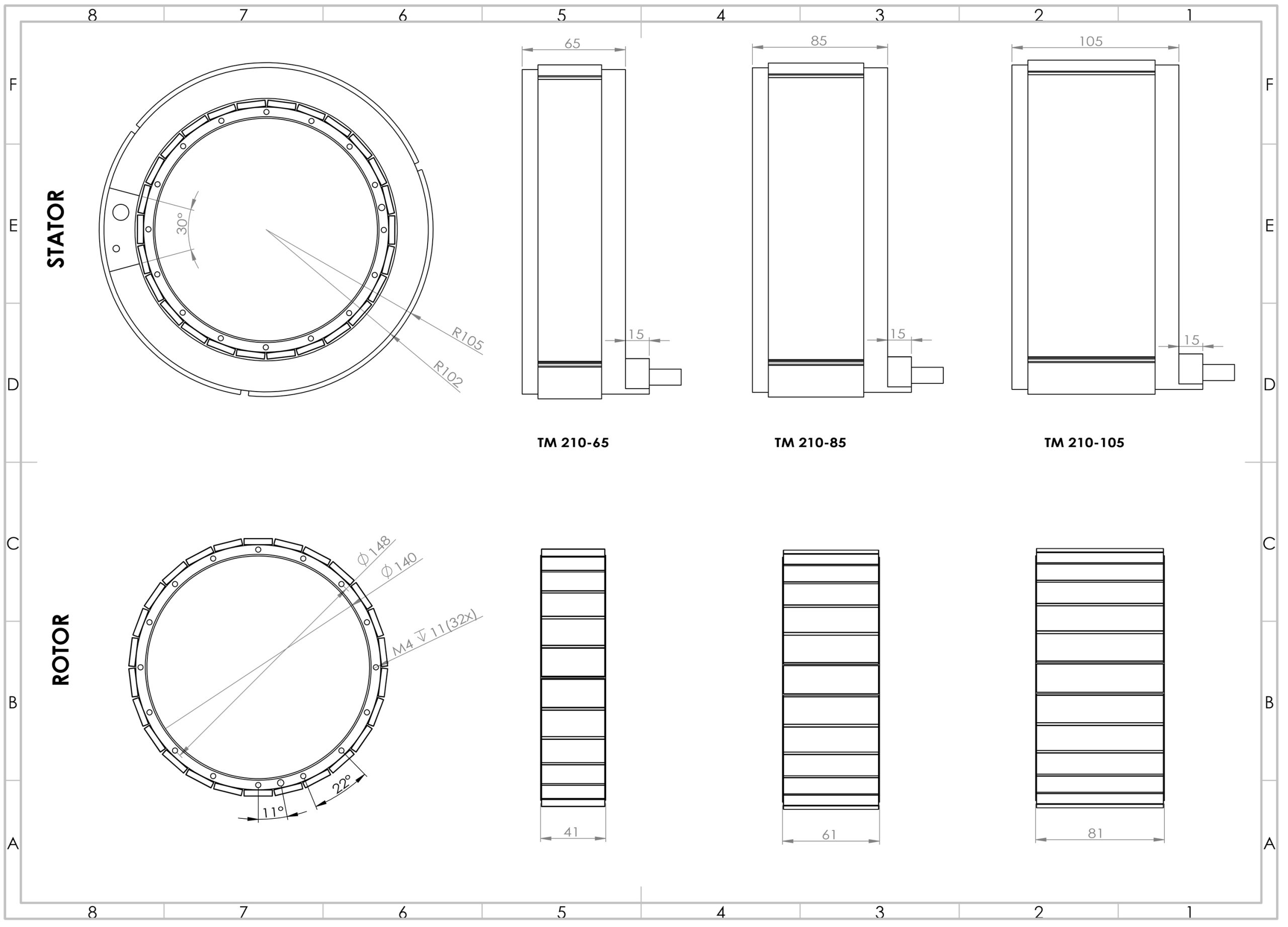

| Stator OD | Ods | mm | 210 | |||
| Rotor ID | lds | mm | 140 | |||
| Rotor inertia | JR | Kg*m² | 9.00E-03 | 1.40E-02 | 1.90E-02 | |
| Rotor Mass | Wr | kg | 1.6 | 2.4 | 3.2 | |
| Total Mass | Excluding cables | Ws | kg | 5.8 | 8.3 | 10.7 |
| Parameter | Remark | Symbol | Unit | TM210-65 | TM210-85 | TM210-105 |
|---|---|---|---|---|---|---|
| Winding type | N | N | N |
| Parameter | Remark | Symbol | Unit | TM210-65 | TM210-85 | TM210-105 |
|---|---|---|---|---|---|---|
| Winding type | N | N | N |
