A quick look at the key specs, features, and performance highlights.

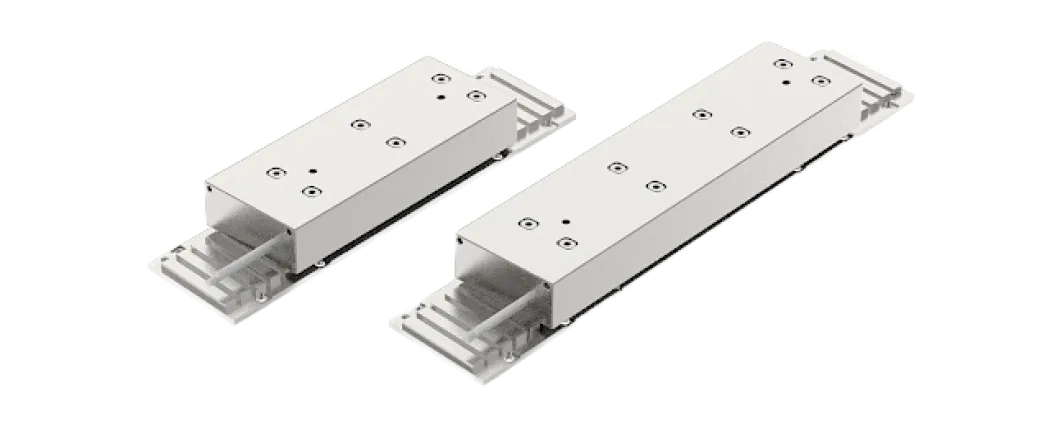

| Parameter | Remarks | Symbol | Unit | ICV124-12 | ICV124-18 | ||
|---|---|---|---|---|---|---|---|
| Winding Type | N | S | N | S | |||
| Motor type | 3phases synchronous Ironcore | 380Vacrms (560dc) | |||||
| Peak Force@6℃/s increase | Magnet@25℃ | Fp | N | 1680 | 1680 | 2520 | 2520 |
| Continuous Force Passive Cooling | Coil@110℃ | Fc | N | 130 | 130 | 200 | 200 |
| Continuous Force Active Cooling | Coil@110℃ | Fc | N | 400 | 400 | 600 | 600 |
| Maximum Speed | @560Vdc | Vmax | m/s | 3 | 6 | 3 | 6 |
| Motor Force Constant | Mount. 5k.@20℃ | K | N/Arms | 186 | 93 | 186 | 90 |
| Motor Constant | Coils@25℃ | S | N²/M | 1816 | 1816 | 2647 | 2647 |
| Parameter | Remarks | Symbol | Unit | ICV76-09 | ICV76-15 | ||
|---|---|---|---|---|---|---|---|
| Winding Type | N | S | N | S | |||
| Peak current | Magnet@25℃ | Ip | Arms | 10.5 | 21.0 | 15.8 | 32.6 |
| Continuous Current Passive Cooling | Coil@110℃ | Ic | Arms | 0.7 | 1.4 | 1.1 | 2.2 |
| Continuous Current Active Cooling | Coil@110℃ | Ic | Arms | 2.2 | 4.3 | 3.2 | 6.7 |
| Back EMF | 25℃ +/-10% | Bemf | V/M/S | 152 | 76 | 152 | 73 |
| Resistance Per Phase | Coil@25℃ | Rph | Ω | 6.35 | 1.59 | 4.2 | 1.02 |
| Induction Per Phase | I<0.63Ip | Lph | mh | 51.0 | 12.7 | 34.0 | 8.2 |
| Electrical Time Constant | Coil@25℃ | Te | ms | 8 | 8 | 8 | 8 |
| Power Loss | All coils | Pc | W | 114.5 | 114.5 | 176.8 | 176.8 |
| Parameter | Remarks | Symbol | Unit | ICV76-09 | ICV76-15 | ||
|---|---|---|---|---|---|---|---|
| Winding Type | N | S | N | S | |||
| Thermal R | Coils to mount. Sfc. | Rth | °C/W | 0.7 | 0.7 | 0.5 | 0.5 |
| Temp. Sensor | PTC 1kΩ / NTC10kΩ | ||||||
| Parameter | Remarks | Symbol | Unit | ICV76-09 | ICV76-15 | ||
|---|---|---|---|---|---|---|---|
| Winding Type | N | S | N | S | |||
| Coil Unit Weight | ex.cables | W | kg | 4.6 | 4.6 | 6.5 | 6.5 |
| Coil Unit Length | ex.cables | L | mm | 244 | 244 | 338 | 388 |
| Motor Attraction Force | Rms@0A | Fa | N | 3400 | 3400 | 4900 | 4900 |
| Magnet Pitch | N-N | Ï„ | mm | 24 | 24 | 24 | 24 |

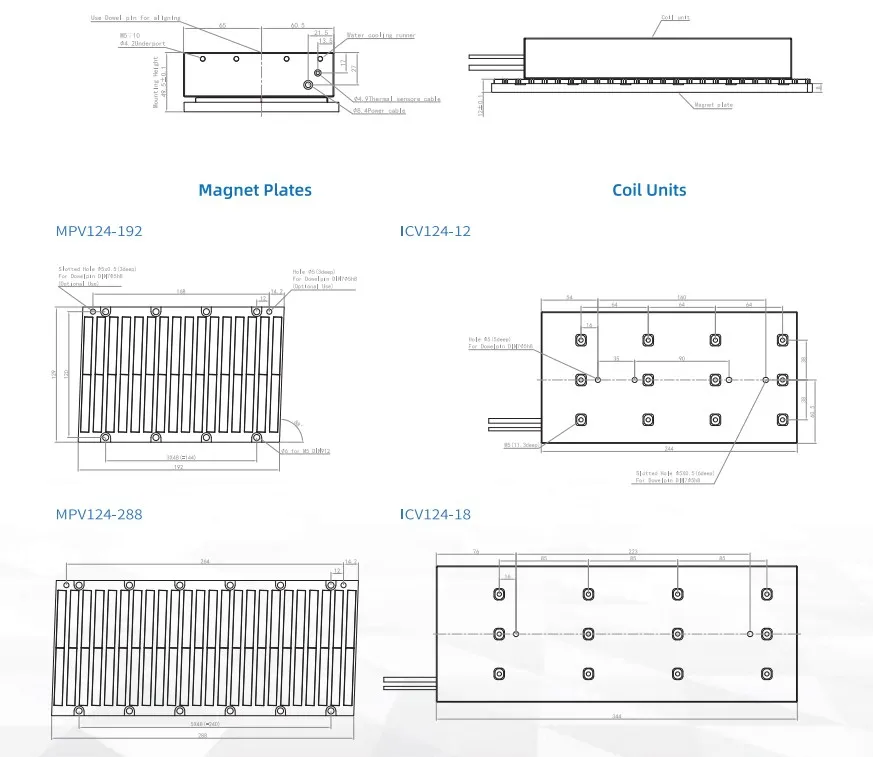

| Magnet Plate Mounting Dimensions | ||
|---|---|---|
| Length (mm) | 192 | 288 |
| M5 Bolts | 8 | 12 |
| Weight (Kg/m) | 10.45 | |
| Magnet Plates can be jointed together without limits | ||
| Motorconnections | ||
|---|---|---|
| 1 | Phase U | Black |
| 2 | Phase V | Red |
| 3 | Phase W | White |
| 4 | PE | Yellow |
| Temperature Sensor connections | ||
|---|---|---|
| 1 | PTC 1KΩ | Brown |
| 2 | PTC 1KΩ | White |
| 3 | NTC | Yellow |
| 4 | NTC | Green |
