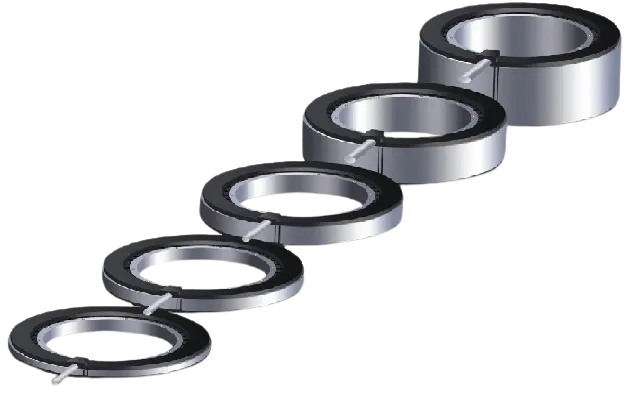

TM160 Torque Motor – High Torque, Frameless Precision | ITG
Discover advanced performance and application-specific advantages of our TM160 Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.
| Parameter | Remark | Symbol | Unit | TM160-17 | TM160-25 | TM160-34 | TM160-60 | TM160-92 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding type | N | Y | Z | N | Y | Z | N | Z | N | Y | |||
| Motor Type | Three-phase synchronous iron core 230Vac rms (320Vdc) | 380Vac rms (600Vdc) | |||||||||||
| Peak Torque | Magnet@25°C | Tp | Nm | 11.16 | 12.72 | 12.72 | 23.52 | 26.88 | 26.88 | 40.92 | 40.30 | 110 | 183.20 |
| Continuous torque | Coil@110°C | Tc | Nm | 4.92 | 5.04 | 5.04 | 11.28 | 11.64 | 11.64 | 18.84 | 18.00 | 43.56 | 72.00 |
| Maximum speed | @Tc | nmax | mrpm | 1837 | 3266 | 5690 | 916 | 1648 | 2845 | 511 | 1890 | 361 | 397 |
| Motor torque constant | Up to lc | K | Nm/Arms | 1.15 | 0.65 | 0.37 | 2.31 | 1.28 | 0.74 | 4.14 | 1.12 | 11 | 10 |
| Motor constant | Coils@25°C | Km | N2 / W | 0.140 | 0.147 | 0.149 | 0.407 | 0.423 | 0.418 | 0.832 | 0.760 | 2.605 | 4.263 |
| Parameter | Remarks | Symbol | Unit | TM160-17 | TM160-25 | TM160-34 | TM160-60 | TM160-92 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding type | N | Y | Z | N | Y | Z | N | Z | N | Y | |||
| Peak Current | Magnet@25°C | lp | Arms | 13.1 | 26.5 | 46.2 | 13.8 | 28.3 | 48.8 | 13.4 | 48.6 | 13.5 | 24.8 |
| Max.Continuous Current | Coil@110°C | lc | Arms | 4.3 | 7.8 | 13.5 | 4.9 | 9.1 | 16 | 4.6 | 16.1 | 4 | 7.2 |
| Back EMF Phase to Phase peak | 25℃+/-10% | Kep | V/krpm | 99 | 56 | 32 | 199 | 111 | 64 | 356 | 96 | 947 | 861 |
| Back EMF Phase to Phase RMS | 25℃+/-10% | Ke | V/krpm | 70 | 39 | 23 | 141 | 78 | 45 | 252 | 68 | 670 | 609 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 3.15 | 0.95 | 0.31 | 4.37 | 1.3 | 0.44 | 6.87 | 0.55 | 15.49 | 5.86 |
| Induction Per Phase | I<0.63lp | Lph | Mh | 6.62 | 2.09 | 0.68 | 10.05 | 3.25 | 1.10 | 19.92 | 1.43 | 61.94 | 24.61 |
| Electrical Time Constant | Coil@25°C | τe | Ms | 2.1 | 2.2 | 2.2 | 2.3 | 2.5 | 2.5 | 2.9 | 2.6 | 4 | 4.2 |
| Max. Continuous Power Loss | All coils | Pc | W | 224.1 | 224.1 | 221.9 | 406.4 | 416 | 421 | 554.9 | 554 | 947.1 | 1184.8 |
| Poles | Nmag | nr | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 | |
| Parameter | Remarks | Symbol | Unit | TM160-17 | TM160-25 | TM160-34 | TM160-60 | TM160-92 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding type | N | Y | Z | N | Y | Z | N | Z | N | Y | |||
| Thermal Resistance | Coils to mount. Sfc. | Rth | °C/W | 0.43 | 0.43 | 0.43 | 0.23 | 0.23 | 0.23 | 0.17 | 0.17 | 0.1 | 0.06 |
| Temperature Sensor | Optional PTC 1kΩ/NTC | ||||||||||||

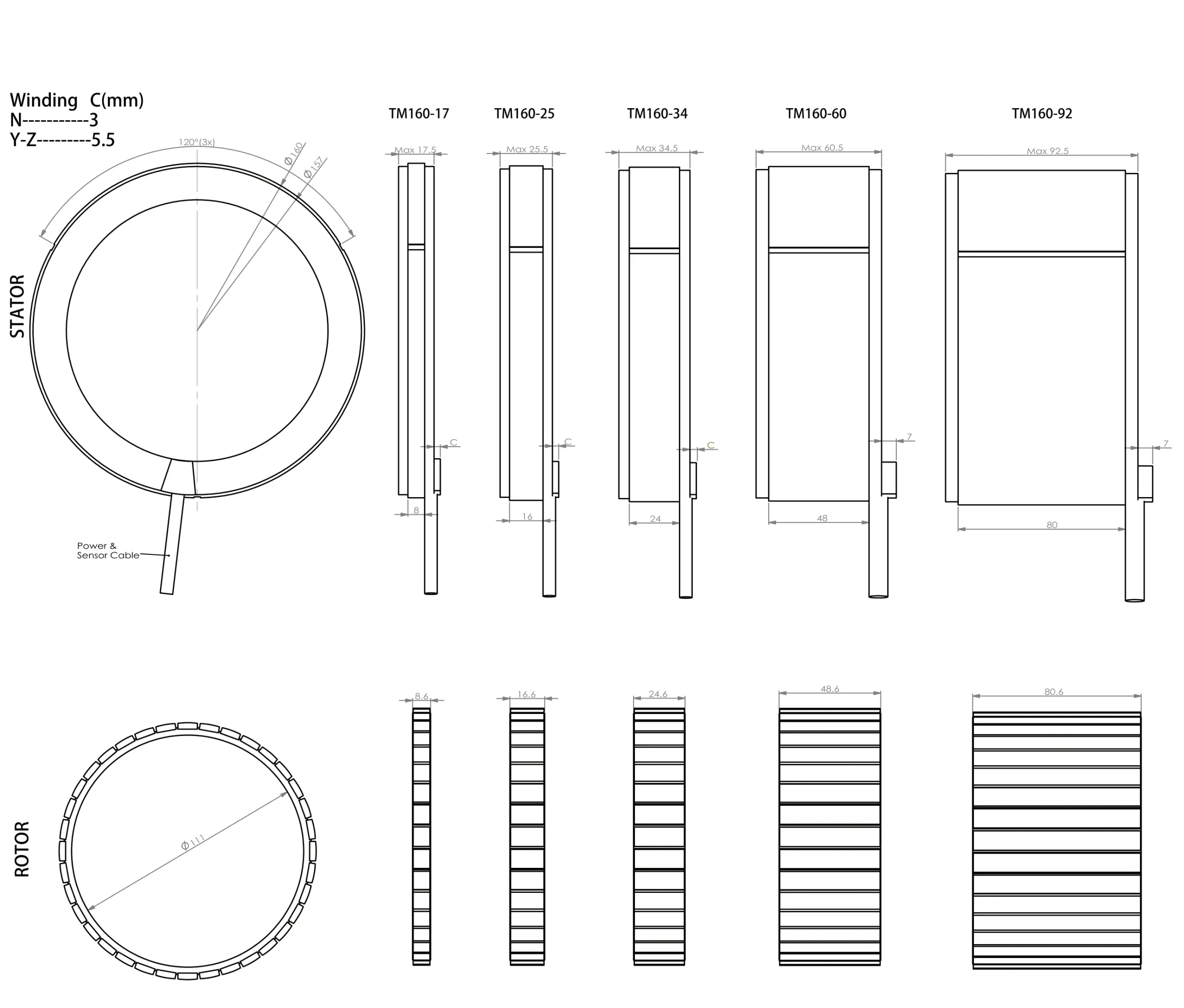

| Parameter | Remarks | Symbol | Unit | TM160-17 | TM160-25 | TM160-34 | TM160-60 | TM160-92 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding type | N | Y | Z | N | Y | Z | N | Z | N | Y | |||
| Stator OD | Ods | mm | 160 | ||||||||||
| Rotor ID | Idr | mm | 111 | ||||||||||
| Rotor inertia | JR | Kg*m² | 4.60E-04 | 9.20E-04 | 1.40E-04 | 2.60E-03 | 4.20E-03 | ||||||
| Total Mass | Rotor+stator ex.cables | W | kg | 0.65 | 1.15 | 1.6 | 3.3 | 5.5 | |||||
| Power Cable Type | length 0.5m | Diameter | mm(mm2) | 6.6(4G0.5mm2) | 8.4(4G1.5mm2) | 6.6(4G0.5mm2) | 8.4(4G1.5mm2) | 6.6(4G0.5mm2) | 8.4(4G1.5mm2) | 8.4(4G1.5mm2) | |||
| Parameter | Remarks | Symbol | Unit | TM160-17 | TM160-25 | TM160-34 | TM160-60 | TM160-92 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding type | N | Y | Z | N | Y | Z | N | Z | N | Y | |||
| Parameter | Remarks | Symbol | Unit | TM160-17 | TM160-25 | TM160-34 | TM160-60 | TM160-92 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding type | N | Y | Z | N | Y | Z | N | Z | N | Y | |||
