TM105 Torque Motor – Compact Frameless Drive | High Torque
Discover advanced performance and application-specific advantages of our TM105 Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.

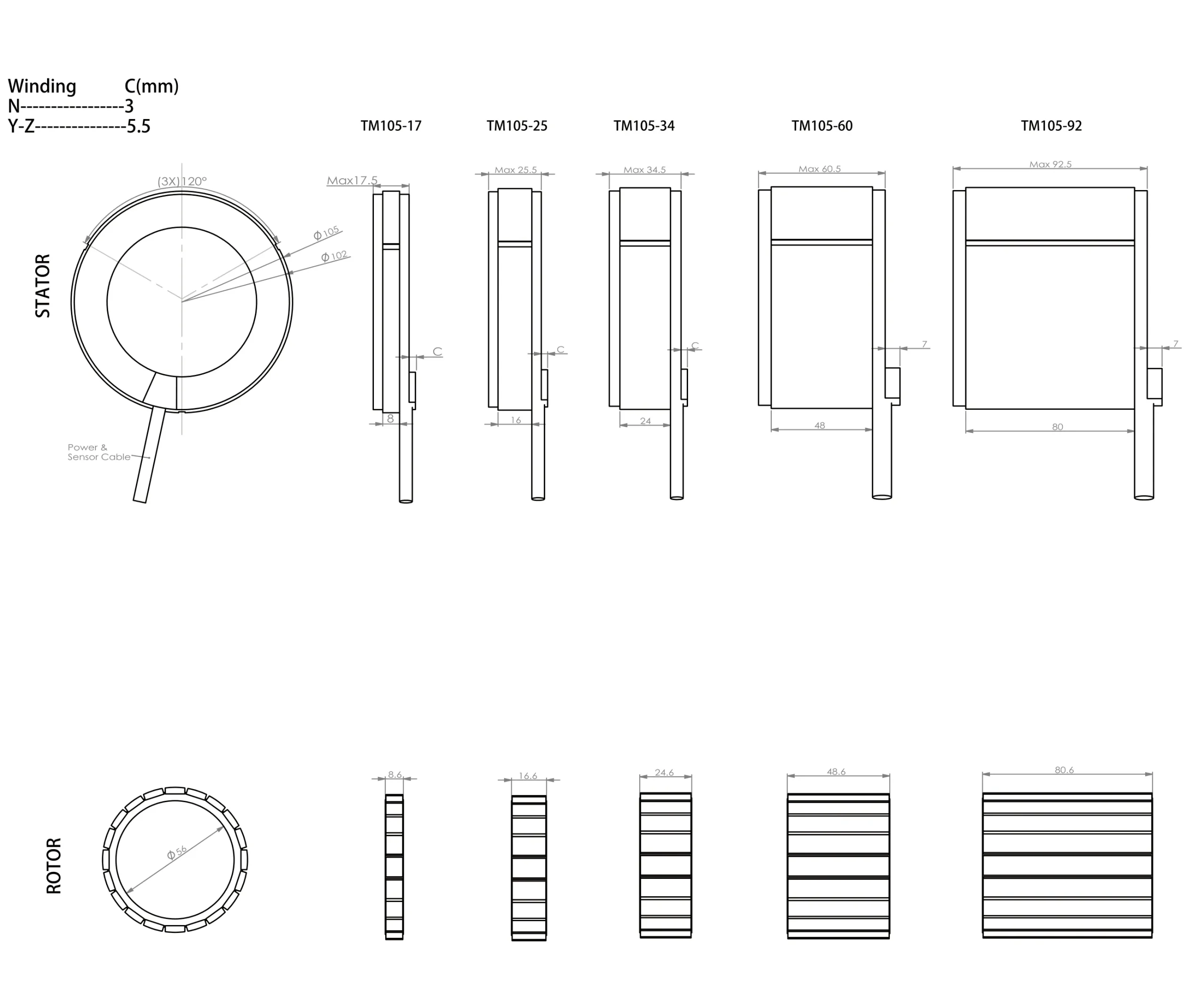

| Parameter | Remarks | Symbol | Unit | TM105-17 | TM105-25 | TM105-34 | TM105-60 | TM105-92 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | N | Y | Z | N | Y | Z | N | Y | Z | N | Y | |||
| Motor type | 3 phases synchronous Ironcore 230Vac rms (320Vdc) | 380Vac rms (600Vdc) | ||||||||||||
| Peak torque | Magnet@25°C | Tp | Nm | 3.50 | 3.96 | 3.96 | 7.32 | 9 | 8.28 | 12.72 | 13.56 | 12.48 | 34 | 56 |
| Continuous torque | Coil@110°C | Tc | Nm | 1.7 | 1.7 | 1.7 | 3.8 | 4 | 4 | 6.5 | 6.2 | 6.2 | 14.4 | 24 |
| Maximum Speed | @Tc | nmax | rpm | 5879 | 10583 | 17638 | 2940 | 5345 | 9203 | 1654 | 3528 | 6047 | 1157 | 1323 |
| Motor Torque Constant | Up to lc | Kt | Nm/Arms | 0.36 | 0.2 | 0.12 | 0.72 | 0.40 | 0.23 | 1.28 | 0.60 | 0.35 | 3.43 | 3 |
| Motor Constant | Coils@25°C | Km | N2/W | 0.025 | 0.024 | 0.027 | 0.069 | 0.070 | 0.073 | 0.143 | 0.125 | 0.131 | 0.455 | 0.493 |
| Parameter | Remarks | Symbol | Unit | TM105-17 | TM105-25 | TM105-34 | TM105-60 | TM105-92 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | N | Y | Z | N | Y | Z | N | Y | Z | N | Y | |||
| Peak Current | Magnet@25°C | lp | Arms | 13.1 | 26.8 | 44.6 | 13.7 | 30.7 | 48.6 | 13.4 | 30.5 | 48.2 | 13.4 | 25.2 |
| Max.Continuous Current | Coil@110°C | lc | Arms | 4.7 | 8.4 | 14.0 | 5.3 | 10.1 | 17.4 | 5.1 | 10.4 | 17.8 | 4.2 | 8.0 |
| Back EMF Phase to Phase peak | 25℃+/-10% | Kep | V/krpm | 31 | 17 | 10 | 62 | 34 | 20 | 110 | 52 | 30 | 295 | 258 |
| Back EMF Phase to Phase RMS | 25℃+/-10% | Ke | V/krpm | 22 | 12 | 7 | 44 | 24 | 14 | 78 | 37 | 21 | 209 | 183 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 1.75 | 0.55 | 0.18 | 2.50 | 0.75 | 0.24 | 3.81 | 0.96 | 0.31 | 8.62 | 3.26 |
| Induction Per Phase | I<0.63lp | Lph | Mh | 3.50 | 1.16 | 0.36 | 5.25 | 1.73 | 0.53 | 10.29 | 2.41 | 0.78 | 32.76 | 13.04 |
| Electrical Time Constant | Coil@25°C | τe | Ms | 2.0 | 2.1 | 2.0 | 2.1 | 2.3 | 2.2 | 2.7 | 2.5 | 2.5 | 3.8 | 4.0 |
| Max. Continuous Power Loss | All coils | Pc | W | 148.6 | 151.4 | 137.6 | 277.3 | 298.4 | 283.1 | 380.8 | 405.8 | 386.8 | 592.5 | 813.7 |
| Poles | Nmag. | nr | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | |
| Parameter | Remarks | Symbol | Unit | TM105-17 | TM105-25 | TM105-34 | TM105-60 | TM105-92 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | N | Y | Z | N | Y | Z | N | Y | Z | N | Y | |||
| Thermal Resistance | Coils to mount. Sfc. | Rth | °C/W | 0.68 | 0.68 | 0.68 | 0.34 | 0.34 | 0.34 | 0.24 | 0.24 | 0.24 | 0.14 | 0.11 |
| Temperature Sensor | Optional PTC 1kΩ/NTC | |||||||||||||
| Parameter | Remarks | Symbol | Unit | TM133-17 | TM133-25 | TM133-34 | TM133-60 | TM133-92 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding type | N | Y | Z | N | Y | Z | N | Z | N | Y | |||
| Stator outer diameter | Ods | mm | 133 | ||||||||||
| Rotor inner diameter | Idr | mm | 84 | ||||||||||
| Rotor inertia | JR | Kg*m² | 2.10E-04 | 4.20E-04 | 6.20E-04 | 1.20E-03 | 1.80E-03 | ||||||
| gross weight | Rotor+stator ex.cables | W | kg | 0.55 | 0.955 | 1.37 | 2.75 | 4.3 | |||||
| Power line type | length 0.5m | Diameter | mm(mm²) | 6.6(4G0.5mm²) | 8.4(4G1.5mm²) | 6.6(4G0.5mm²) | 8.4(4G1.5mm²) | 6.6(4G0.5mm²) | 8.4(4G1.5mm²) | 8.4(4G1.5mm²) | |||
| Parameter | Remarks | Symbol | Unit | TM105-17 | TM105-25 | TM105-34 | TM105-60 | TM105-92 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | N | Y | Z | N | Y | Z | N | Y | Z | N | Y | |||
| Parameter | Remarks | Symbol | Unit | TM105-17 | TM105-25 | TM105-34 | TM105-60 | TM105-92 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | N | Y | Z | N | Y | Z | N | Y | Z | N | Y | |||
