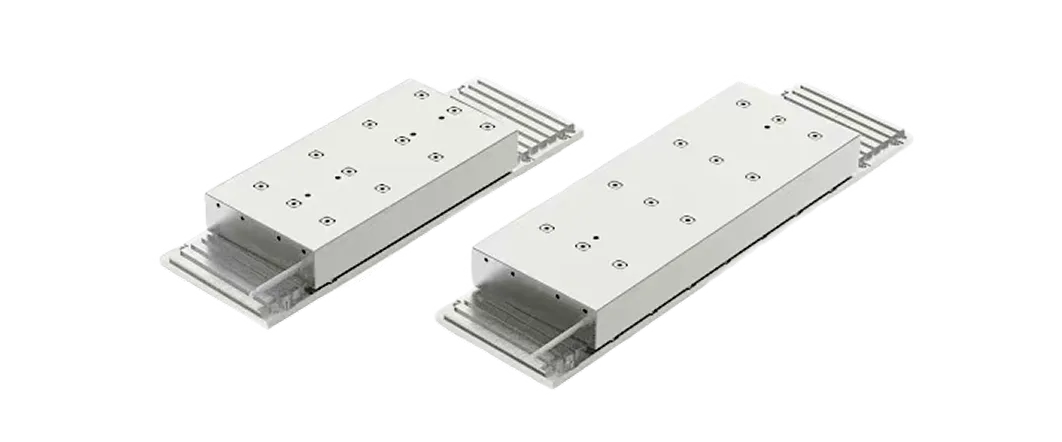

Discover advanced performance and application-specific advantages of our ICV76 Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.
| Parameter | Remarks | Symbol | Unit | ICV76-09 | ICV76-15 | ||
|---|---|---|---|---|---|---|---|
| Winding Type | N | S | N | S | |||
| Motor type | 3phases synchronous Ironcore | 380Vacrms (560dc) | |||||
| Peak Force@6℃/s increase | Magnet@25℃ | Fp | N | 660 | 660 | 1100 | 1100 |
| Continuous Force Passive Cooling | Coil@110℃ | Fc | N | 60 | 60 | 100 | 100 |
| Continuous Force Active Cooling | Coil@110℃ | Fc | N | 165 | 165 | 275 | 275 |
| Maximum Speed | @560Vdc | Vmax | m/s | 4 | 8 | 4 | 8 |
| Motor Force Constant | Mount. 5k.@20℃ | K | N/Arms | 139.5 | 46.5 | 112.5 | 46.5 |
| Motor Constant | Coils@25℃ | S | N²/M | 601 | 601 | 977 | 977 |
| Parameter | Remarks | Symbol | Unit | ICV76-09 | ICV76-15 | ||
|---|---|---|---|---|---|---|---|
| Winding Type | N | S | N | S | |||
| Peak current | Magnet@25℃ | Ip | Arms | 5.5 | 16.5 | 11.4 | 27.5 |
| Continuous Current Passive Cooling | Coil@110℃ | Ic | Arms | 0.4 | 1.3 | 0.9 | 2.2 |
| Continuous Current Active Cooling | Coil@110℃ | Ic | Arms | 1.2 | 3.5 | 2.4 | 5.9 |
| Back EMF | 25℃ +/-10% | Bemf | V/M/S | 114 | 38 | 92 | 38 |
| Resistance Per Phase | Coil@25℃ | Rph | Ω | 10.8 | 1.2 | 4.32 | 0.73 |
| Induction Per Phase | I<0.63Ip | Lph | mh | 81.0 | 9.0 | 32.4 | 5.5 |
| Electrical Time Constant | Coil@25℃ | Te | ms | 7.5 | 7.5 | 7.5 | 7.5 |
| Power Loss | All coils | Pc | W | 58.9 | 58.9 | 100.7 | 100.6 |
| Parameter | Remarks | Symbol | Unit | ICV76-09 | ICV76-15 | ||
|---|---|---|---|---|---|---|---|
| Winding Type | N | S | N | S | |||
| Thermal R | Coils to mount. Sfc. | Rth | °C/W | 1.4 | 1.4 | 0.8 | 0.8 |
| Temp. Sensor | PTC 1kΩ / NTC10kΩ | ||||||
| Parameter | Remarks | Symbol | Unit | ICV76-09 | ICV76-15 | ||
|---|---|---|---|---|---|---|---|
| Winding Type | N | S | N | S | |||
| Coil Unit Weight | ex.cables | W | kg | 2 | 2 | 3 | 3 |
| Coil Unit Length | ex.cables | L | mm | 194 | 194 | 290 | 290 |
| Motor Attraction Force | Rms@0A | Fa | N | 1325 | 1325 | 2075 | 2075 |
| Magnet Pitch | N-N | Ï„ | mm | 24 | 24 | 24 | 24 |

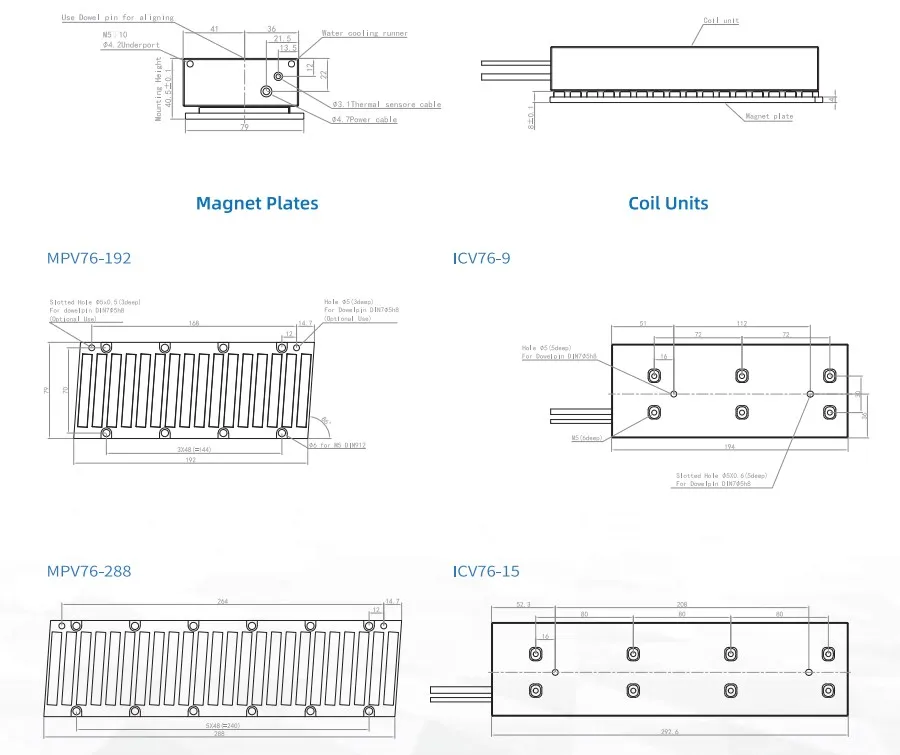

| Magnet Plate Mounting Dimensions | ||
|---|---|---|
| Length (mm) | 192 | 288 |
| M5 Bolts | 8 | 12 |
| Weight (Kg/m) | 3.75 | |
| Magnet Plates can be jointed together without limits | ||
| Motorconnections | ||
|---|---|---|
| 1 | Phase U | Black |
| 2 | Phase V | Red |
| 3 | Phase W | White |
| 4 | PE | Yellow |
| Temperature Sensor connections | ||
|---|---|---|
| 1 | PTC 1KΩ | Brown |
| 2 | PTC 1KΩ | White |
| 3 | NTC | Yellow |
| 4 | NTC | Green |
