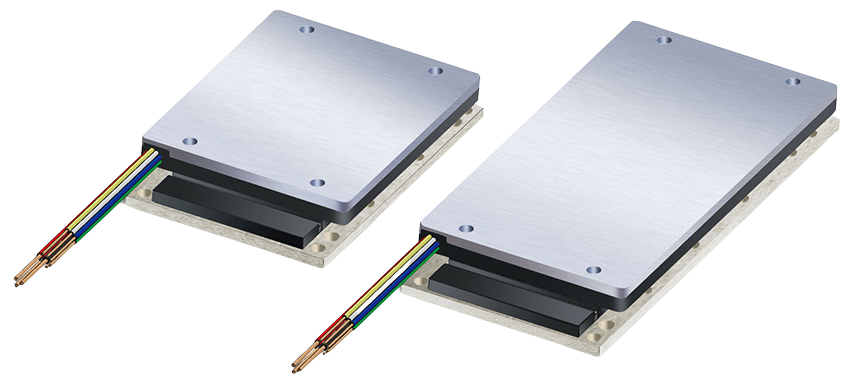

ILS42DHM Ironless Motor – Precision for Clean Environments
Discover advanced performance and application-specific advantages of our ILS42DHM Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.
| Parameter | Remarks | Symbol | Unit | ILS42-03 | ILS42-06 | ILS42-09 | ILS42DHM-03S | ILS42DHM-06S | ILS42DHM-09S |
|---|---|---|---|---|---|---|---|---|---|
| Winding Type | S | S | S | Hall Integrated | |||||
| Motor Type | 3 phases synchronous Ironless 45Vacrms(60Vdc) | ||||||||
| Peak Force | Magnet@25°C | Fp | N | 20 | 40 | 60 | 20 | 40 | 60 |
| Continuous Force | Coil@110°C | Fc | N | 5 | 10 | 15 | 5 | 10 | 15 |
| Maximum Speed | 60V | Vmax | m/s | 6 | 6 | 6 | 6 | 6 | 6 |
| Motor Force Constant | Mount.Sfc.@20°C | K | N/Arms | 6 | 6 | 6 | 6 | 6 | 6 |
| Motor Constant | Coils@25°C | S | N2/W | 3 | 6 | 9 | 3 | 6 | 9 |
| Parameter | Remarks | Symbol | Unit | ILS42-03 | ILS42-06 | ILS42-09 | ILS42DHM-03S | ILS42DHM-06S | ILS42DHM-09S |
|---|---|---|---|---|---|---|---|---|---|
| Winding Type | S | S | S | Hall Integrated | |||||
| Motor Type | 3 phases synchronous Ironless 45Vacrms(60Vdc) | ||||||||
| Peak Current | Magnet@25°C | lp | Arms | 3.3 | 6.7 | 10.0 | 3.3 | 6.7 | 10.0 |
| Continuous Current | Coil@110°C | lc | Arms | 0.8 | 1.7 | 2.5 | 0.8 | 1.7 | 2.5 |
| Back EMF | Phase-Phase peak | Bemf | V/M/s | 5 | 5 | 5 | 5 | 5 | 5 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 4.75 | 2.38 | 1.58 | 4.75 | 2.38 | 1.58 |
| Induction Per Phase | l<0.63lp | Lph | Mh | 0.8 | 0.4 | 0.3 | 0.8 | 0.4 | 0.3 |
| Electrical Time Constant | Coil@25°C | Te | Ms | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 |
| Power Loss | All coils | Pc | W | 11.2 | 22.4 | 33.6 | 11.2 | 22.4 | 33.6 |
| Parameter | Remarks | Symbol | Unit | ILS42-03 | ILS42-06 | ILS42-09 | ILS42DHM-03S | ILS42DHM-06S | ILS42DHM-09S |
|---|---|---|---|---|---|---|---|---|---|
| Winding Type | S | S | S | Hall Integrated | |||||
| Thermal R. | Coils to mount. Sfc. | Rth | °C/W | 1.6 | 0.8 | 0.53 | 1.6 | 0.8 | 0.53 |
| Temp. Sensor | Temperature Cut-of | None(can be customized) | |||||||
| Parameter | Remarks | Symbol | Unit | ILS42-03 | ILS42-06 | ILS42-09 | ILS42DHM-03S | ILS42DHM-06S | ILS42DHM-09S |
|---|---|---|---|---|---|---|---|---|---|
| Winding Type | S | S | S | Hall Integrated | |||||
| Coil Unit Weight | ex.cables | W | kg | 0.03 | 0.055 | 0.085 | 0.035 | 0.06 | 0.09 |
| Coil Unit Length | ex.cables | L | Mm | 45 | 78 | 111 | 56 | 89 | 122 |
| Motor Attraction Force | Rms@0A | Fa | N | 0 | 0 | 0 | 0 | 0 | 0 |
| Magnet Pitch | N-N | T | mm | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 |
| Power Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | Leadwires 3*0.3mm2 | 5.6(3*0.3mm2+5*0.08) | ||||
| Sensor Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | NA | |||||
| Cable life | Minimum | Cycles | ≥12,000,000 | ||||||
| Bending Radius Static | Minimum | mm | ≥4xφ | ||||||
| Bending Radius Dynamic | Minimum | mm | ≥7.5xφ | ||||||
| Parameter | Remarks | Symbol | Unit | ILS42-03 | ILS42-06 | ILS42-09 | ILS42DHM-03S | ILS42DHM-06S | ILS42DHM-09S |
|---|---|---|---|---|---|---|---|---|---|
| Winding Type | S | S | S | Hall Integrated | |||||
| Parameter | Remarks | Symbol | Unit | ILS42-03 | ILS42-06 | ILS42-09 | ILS42DHM-03S | ILS42DHM-06S | ILS42DHM-09S |
|---|---|---|---|---|---|---|---|---|---|
| Winding Type | S | S | S | Hall Integrated | |||||

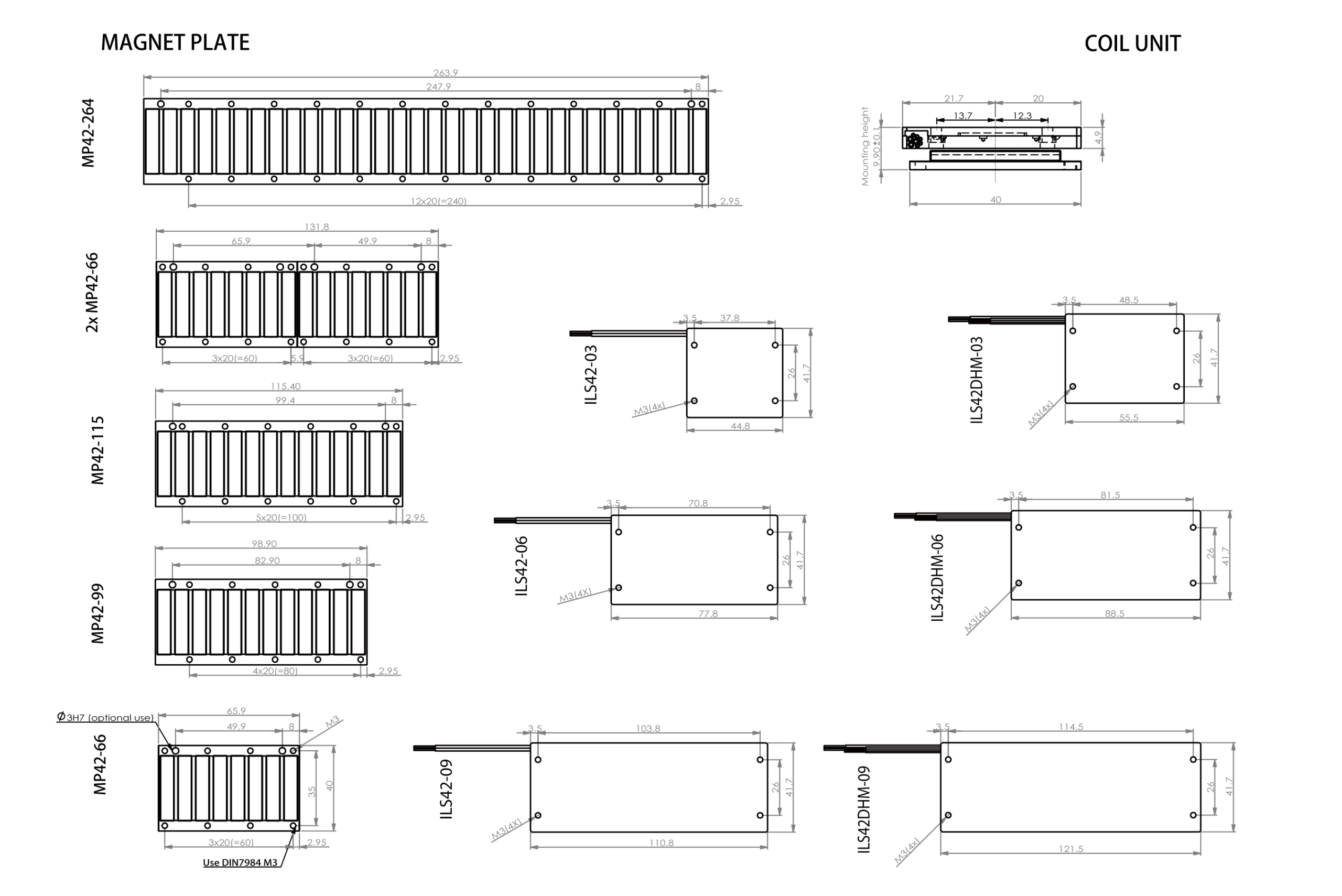

| Magnet Plate Mounting Dimensions | ||||
|---|---|---|---|---|
| Lenght (mm) | 66 | 99 | 115 | 264 |
| M4 Bolts | 8 | 10 | 12 | 26 |
| Weight(Kg/m) | 1.06 | |||
| Magnet Plates can be jointed together without limits | ||||
| Dig. Hall Sensor Connetions | ||
|---|---|---|
| 1 | 0V | Grey |
| 2 | 5~28V | Brown |
| 3 | Hall A | Blue |
| 4 | Hall B | Green |
| 5 | Hall C | Yellow |
| Motor Connetions | ||
|---|---|---|
| 1 | Phase U | Black(Pink) |
| 2 | Phase V | Red |
| 3 | Phase W | White |
| 4 | PE | Housing |
