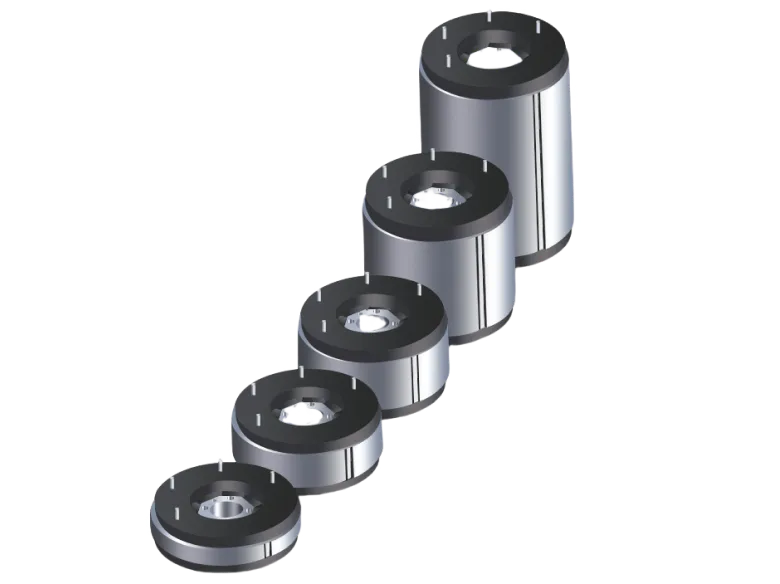

TMXSL65 Torque Motor – Compact Power for Precise Motion
Discover advanced performance and application-specific advantages of our TMXSL65 Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.
| Parameter | Remarks | Symbol | Unit | TMXSL65-17 | TMXSL65-25 | TMXSL65-34 | TMXSL65-60 | TMXSL65-92 |
|---|---|---|---|---|---|---|---|---|
| Winding Type | N | N | Y | Y | Y | |||
| Motor type | 3 Phases synchronous slotless(no iron core) 220V-380Vac rms (48V-600V) | |||||||
| Peak torque | Magnet@25°C | Tp | Nm | 0.0.28 | 0.85 | 1.44 | 3.84 | 6.40 |
| Continuous torque | Coil@110°C | Tc | Nm | 0.0.07 | 0.0.21 | 0.36 | 0.96 | 1.60 |
| Maximum Speed | @Tc | nmax | rpm | 30000 | 30000 | 30000 | 30000 | 30000 |
| Motor Torque Constant | Up to lc | K | Nm/Arms | 0.0.015 | 0.0.030 | 0.0.025 | 0.0.067 | 0.0.113 |
| Motor Constant | Coils@25°C | S | Nm2/W | 0.0.0001 | 0.0.0003 | 0.0.0005 | 0.0.0016 | 0.0.0033 |
| Parameter | Remarks | Symbol | Unit | TMXSL65-17 | TMXSL65-25 | TMXSL65-34 | TMXSL65-60 | TMXSL65-92 |
|---|---|---|---|---|---|---|---|---|
| Winding Type | N | N | Y | Y | Y | |||
| Peak Current | Magnet@25°C | lp | Arms | 18.7 | 28.4 | 58.8 | 57.5 | 56.6 |
| Max.Continuous Current | Coil@110°C | lc | Arms | 4.7 | 7.1 | 14.7 | 14.4 | 14.2 |
| Back EMF Phase to Phase peak | 25℃+/-10% | Kep | V/krpm | 1.29 | 2.58 | 2.11 | 5.75 | 9.73 |
| Back EMF Phase to Phase RMS | 25℃+/-10% | Ke | V/krpm | 0.91 | 1.83 | 1.49 | 4.06 | 6.88 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 0.73 | 1.02 | 0.38 | 0.95 | 1.28 |
| Induction Per Phase | I<0.63lp | Lph | Mh | 0.37 | 0.67 | 0.0.3 | 1.08 | 1.72 |
| Electrical Time Constant | Coil@25°C | τe | Ms | 0.5 | 0.7 | 0.8 | 1.1 | 1.3 |
| Max. Continuous Power Loss | All coils | Pc | W | 62.0 | 62.0 | 315.8 | 766.4 | 1000.8 |
| Poles | Nmag | nr | 8.0 | 8.0 | 8.0 | 8.0 | 8.0 |
| Parameter | Remarks | Symbol | Unit | TMXSL65-17 | TMXSL65-25 | TMXSL65-34 | TMXSL65-60 | TMXSL65-92 |
|---|---|---|---|---|---|---|---|---|
| Winding Type | N | N | Y | Y | Y | |||
| Thermal Resistance | Coils to mount. Sfc. | Rth | °C/W | 1.5 | 0.8 | 0.58 | 0.37 | 0.11 |
| Temperature Sensor | Optional PTC 1kΩ/NTC | |||||||
| Parameter | Remark | Symbol | Unit | TMXSL65-17 | TMXSL65-25 | TMXSL65-34 | TMXSL65-60 | TMXSL65-92 |
|---|---|---|---|---|---|---|---|---|
| Winding type | N | N | Y | Y | Y | |||

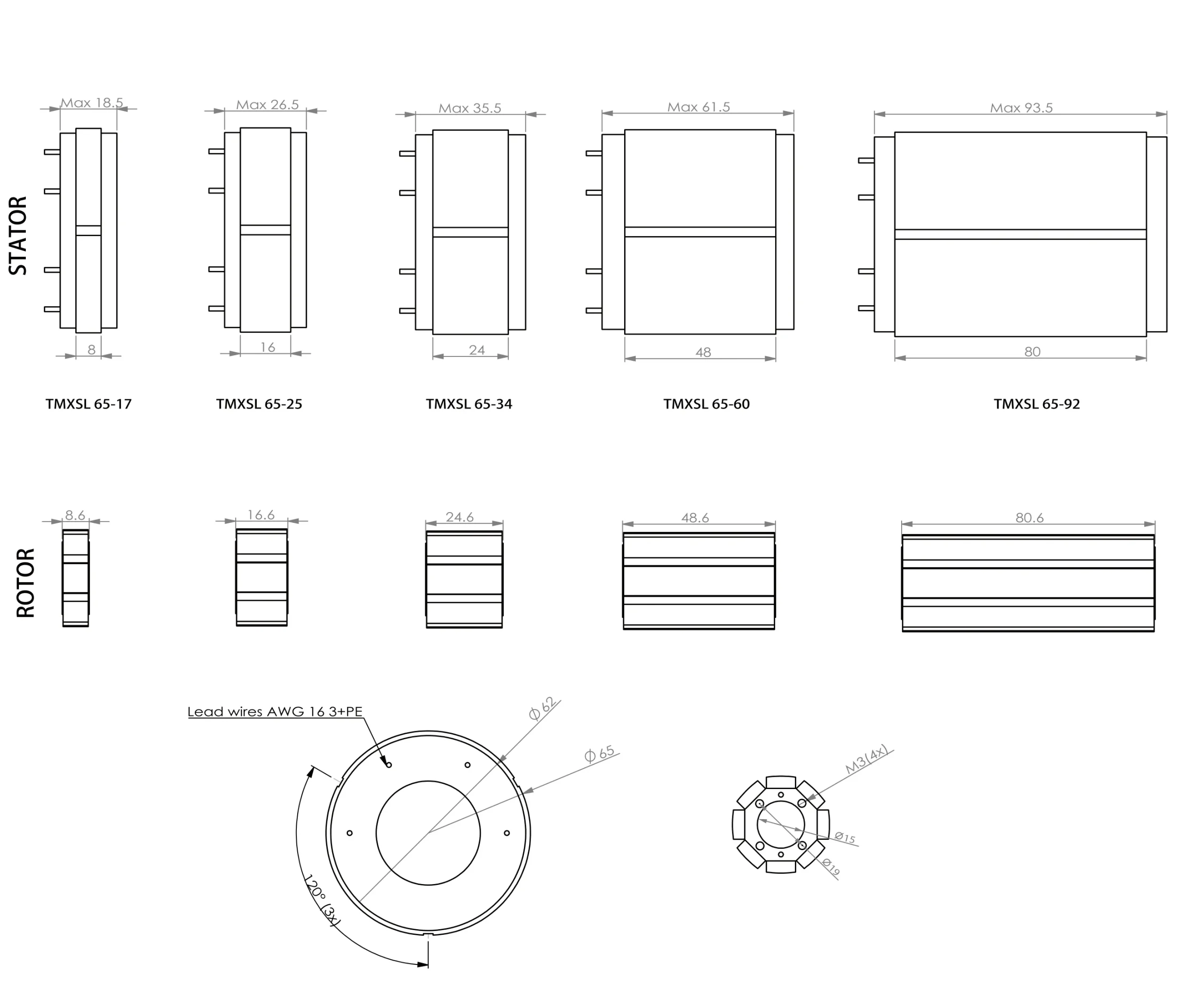

| Stator outer diameter | Ods | mm | 65 | |||||
| Rotor inner diameter | Idr | mm | 15 | |||||
| Rotor inertia | JR | Kg*m² | 3.12E-06 | 6.23E-06 | 9.23E-06 | 1.8E-05 | 3.19E-05 | |
| gross weight | Rotor+stator ex.cables | W | kg | 0.18 | 0.32 | 0.46 | 0.95 | 1.6 |
| Power line type | length 0.5m | Diameter | mm (mm2) | Leadwires (4*1.5mm2) | ||||
| Parameter | Remarks | Symbol | Unit | TMXSL65-17 | TMXSL65-25 | TMXSL65-34 | TMXSL65-60 | TMXSL65-92 |
|---|---|---|---|---|---|---|---|---|
| Winding Type | N | N | Y | Y | Y |
| Parameter | Remarks | Symbol | Unit | TMXSL65-17 | TMXSL65-25 | TMXSL65-34 | TMXSL65-60 | TMXSL65-92 |
|---|---|---|---|---|---|---|---|---|
| Winding Type | N | N | Y | Y | Y |
