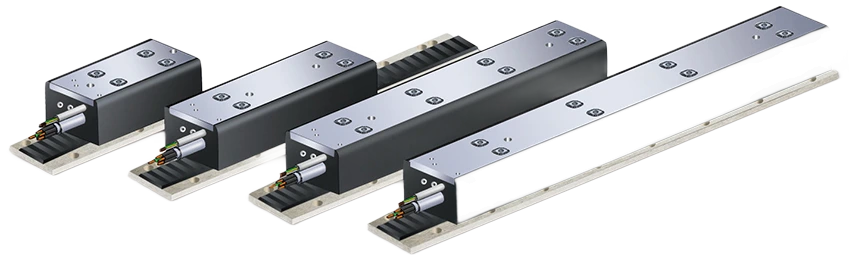

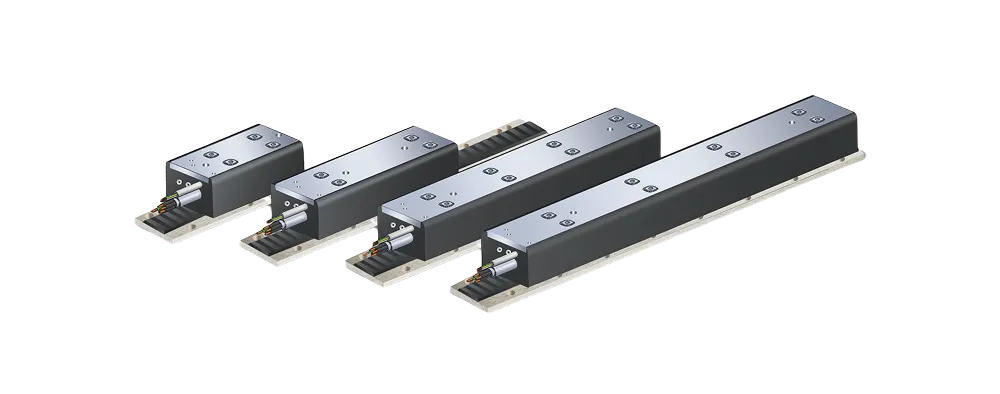

IC50 Ironcore Linear Motor – High Force, Low Footprint | ITG
Discover advanced performance and application-specific advantages of our IC50 Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.
| Parameter | Remarks | Symbol | Unit | IC50-3 | IC50-6 | IC50-09 | IC50-12 | IC50-18 | IC50LV-3 | IC50LV-6 | IC50LV-12 | IC50LV-18 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | S | S | N | S | N | S | N | S | Z | Z | Z | Y | |||
| Motor Type | 3 phases synchronous Ironcore | 380Vacrms(560Vdc) | 380Vacrms(600Vdc) | Low voltage 45Vacrms(60Vdc) | |||||||||||
| Ultimate Farce | Magnet@25°C | Fu | N | 135 | 270 | 405 | 405 | 540 | 540 | 810 | 810 | 135 | 270 | 540 | 810 |
| Peak Force | Magnet@25°C | Fp | N | 116 | 232 | 348 | 348 | 464 | 464 | 696 | 696 | 116 | 232 | 464 | 696 |
| Continuous Force | Coil@110°C | Fc | N | 66 | 132 | 198 | 198 | 264 | 264 | 396 | 396 | 66 | 132 | 264 | 396 |
| Maximum Speed | @560V | Vmax | m/s | 12 | 12 | 3.2 | 12 | 3.2 | 12 | 5.6 | 12 | 5 | 5 | 5 | 5 |
| Motor Force Constant | Mount.Sfc.@20°C | K | N/Arms | 39 | 39 | 119 | 39 | 80 | 39 | 80 | 39 | 13 | 13 | 13 | 26 |
| Motor Constant | Coils@25°C | S | N2/W | 94 | 188 | 282 | 282 | 376 | 376 | 563 | 563 | 94 | 188 | 376 | 563 |
| Paramater | Remarks | Symbol | Unit | IC50-3 | IC50-6 | IC50-09 | IC50-12 | IC50-18 | IC50LV-3 | IC50LV-6 | IC50LV-12 | IC50LV-18 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | S | S | N | S | N | S | N | S | Z | Z | Z | Y | |||
| Ultimate Current | Magnet@25°C | lu | Arms | 4.7 | 9.4 | 4.6 | 14.0 | 7.9 | 18.7 | 7.9 | 28.1 | 14.0 | 28.1 | 56.1 | 42.1 |
| Peak Current | Magnet@25°C | lp | Arms | 3.5 | 6.9 | 3.4 | 10.4 | 6.8 | 13.8 | 6.8 | 20.8 | 10.4 | 20.8 | 41.5 | 31.1 |
| Continuous Current | Coil@110°C | lc | Arms | 1.7 | 3.4 | 1.7 | 5.0 | 3.3 | 6.8 | 3.3 | 10.2 | 5.1 | 10.2 | 20.3 | 15.2 |
| Back EMF | Phase-Phase peak | Bemf | V/M/s | 32 | 32 | 97 | 32 | 64 | 32 | 64 | 32 | 11 | 11 | 11 | 21 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 5.4 | 2.7 | 16 | 1.8 | 5.35 | 1.35 | 3.65 | 0.90 | 0.56 | 0.28 | 0.14 | 0.40 |
| Induction Per Phase | l<0.63lp | Lph | Mh | 35 | 17.6 | 104.0 | 11.7 | 34.7 | 8.8 | 23.1 | 5.9 | 3.6 | 1.8 | 0.9 | 2.6 |
| Electrical Time Constant | Coil@25°C | τe | Ms | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
| Power Loss | All coils | Pc | W | 62 | 124 | 186 | 186 | 248 | 248 | 372 | 372 | 62 | 124 | 248 | 372 |
| Paramater | Remarks | Symbol | Unit | IC50-3 | IC50-6 | IC50-09 | IC50-12 | IC50-18 | IC50LV-3 | IC50LV-6 | IC50LV-12 | IC50LV-18 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | S | S | N | S | N | S | N | S | Z | Z | Z | Y | |||
| Thermal R. | Coils to mount. Sfc. | Rth | °C/W | 1.5 | 0.75 | 0.5 | 0.5 | 0.375 | 0.375 | 0.25 | 0.25 | 1.5 | 0.75 | 0.375 | 0.25 |
| Temp. Sensor | PTC 1kΩ/NTC | ||||||||||||||
| Paramater | Remarks | Symbol | Unit | IC50-3 | IC50-6 | IC50-09 | IC50-12 | IC50-18 | IC50LV-3 | IC50LV-6 | IC50LV-12 | IC50LV-18 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | S | S | N | S | N | S | N | S | Z | Z | Z | Y | |||
| Coil Unit Weight | ex.cables | W | kg | 0.55 | 0.9 | 1.2 | 1.2 | 1.55 | 1.55 | 2.25 | 2.25 | 0.55 | 0.9 | 1.55 | 2.25 |
| Coil Unit Length | ex.cables | L | Mm | 93 | 143 | 190 | 190 | 241 | 241 | 336 | 336 | 93 | 143 | 241 | 336 |
| Motor Attraction Force | Rms@0A | Fa | N | 300 | 500 | 700 | 700 | 900 | 900 | 1300 | 1300 | 300 | 500 | 900 | 1300 |
| Magnet Pitch | N-N | τ | mm | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Power Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | 7.2(4G0.75mm2 AWG19) | 10.1(4G2.5mm2 AWG14) | 8.4(4G1.5mm2 AWG16) | |||||||||
| Sensor Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | 4.9(4*0.14mm2 AWG26) | |||||||||||
| Cable life | Minimum | Cycles | >5,000,000 | ||||||||||||
| Bending Radius Static | Minimum | mm | ≥4xφ | ||||||||||||
| Bending Radius Dynamic | Minimum | mm | ≥7.5xφ | ||||||||||||
| Parameter | Remarks | Symbol | Unit | IC50-3 | IC50-6 | IC50-09 | IC50-12 | IC50-18 | IC50LV-3 | IC50LV-6 | IC50LV-12 | IC50LV-18 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | S | S | N | S | N | S | N | S | Z | Z | Z | Y | |||
| Parameter | Remarks | Symbol | Unit | IC50-3 | IC50-6 | IC50-09 | IC50-12 | IC50-18 | IC50LV-3 | IC50LV-6 | IC50LV-12 | IC50LV-18 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding Type | S | S | N | S | N | S | N | S | Z | Z | Z | Y | |||

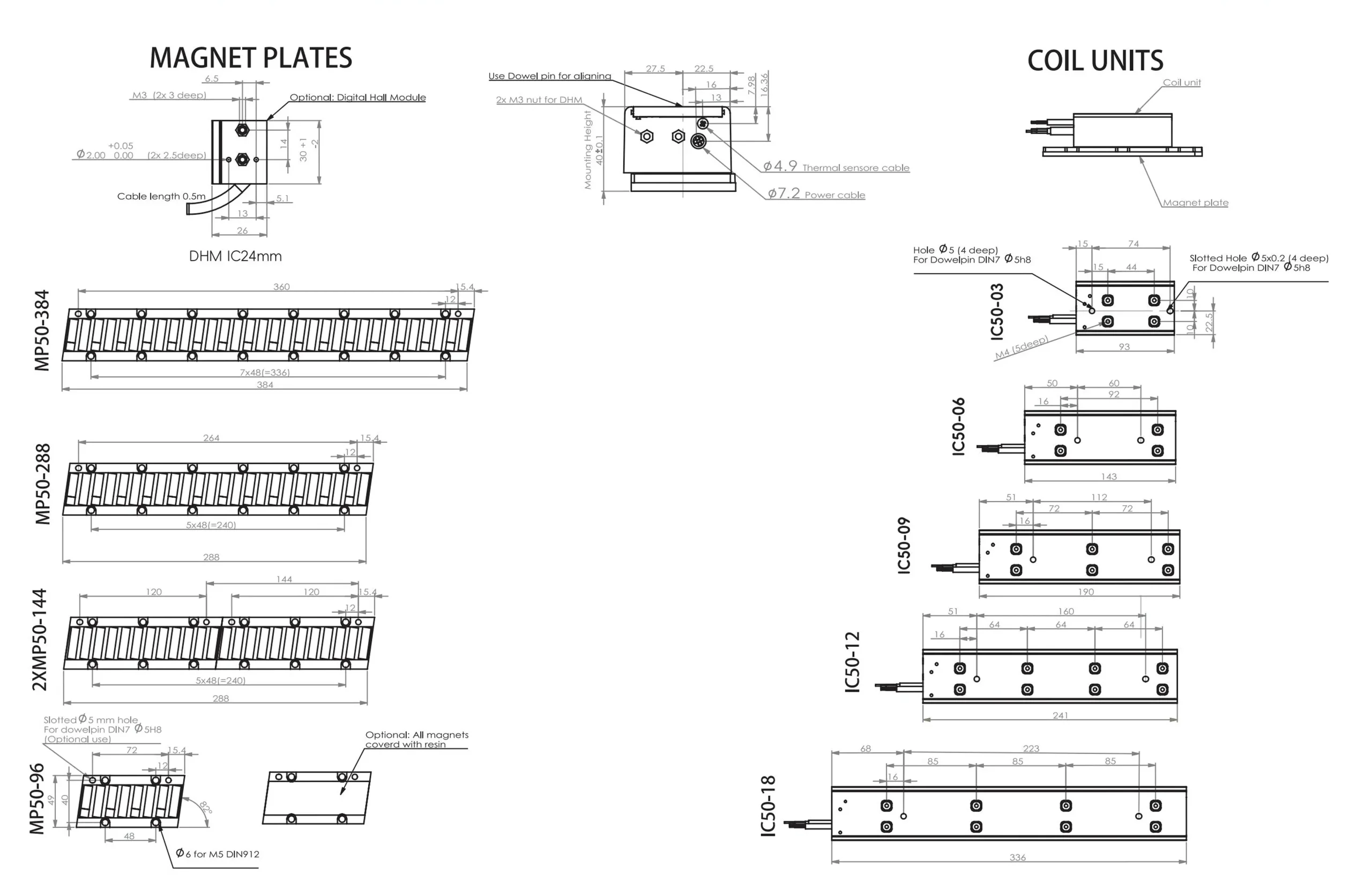

| Magnet Plate Mounting Dimensions | ||||
|---|---|---|---|---|
| Lenght(mm) | 96 | 144 | 288 | 384 |
| M5 Bolts | 4 | 6 | 12 | 16 |
| Weight(Kg/m) | 2.05 | |||
| Dig. Hall Sensor Connetions | ||
|---|---|---|
| 1 | 0V | Gray |
| 2 | 5~28V | Brown |
| 3 | Hall A | White |
| 4 | Hall B | Green |
| 5 | Hall C | Yellow |
| Motor Connetions | ||
|---|---|---|
| 1 | Phase U | Phase 1 |
| 2 | Phase V | Phase 2 |
| 3 | Phase W | Phase 3 |
| 4 | PE | Yellow-Green |
| Temp. Sensor Connetions | ||
|---|---|---|
| 1 | PTC 1KΩ | Brown |
| 2 | PTC 1KΩ | White |
| 3 | NTC | Yellow |
| 4 | NTC | Green |
