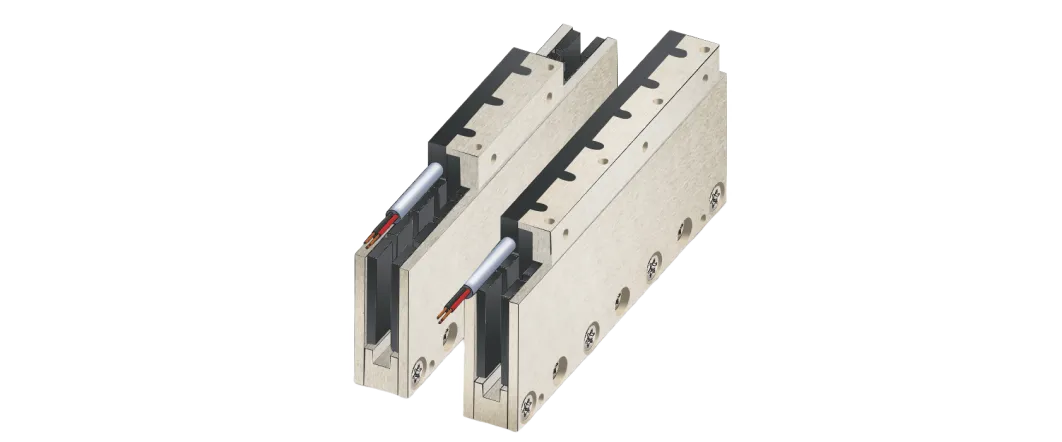

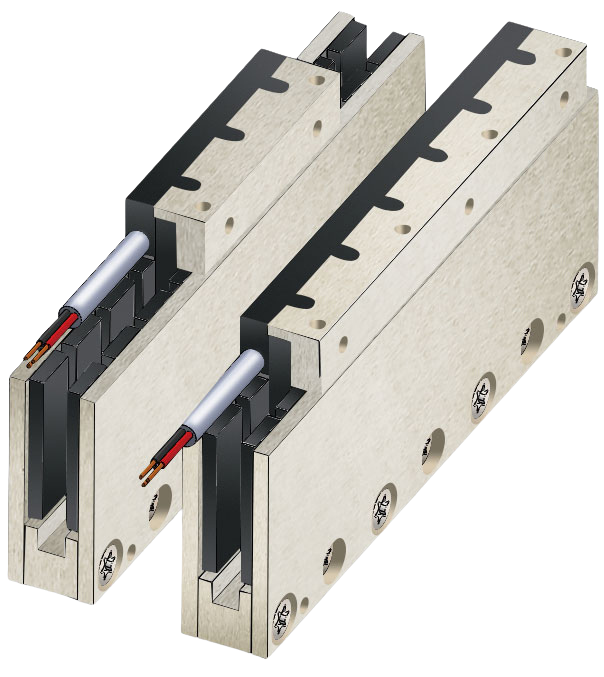

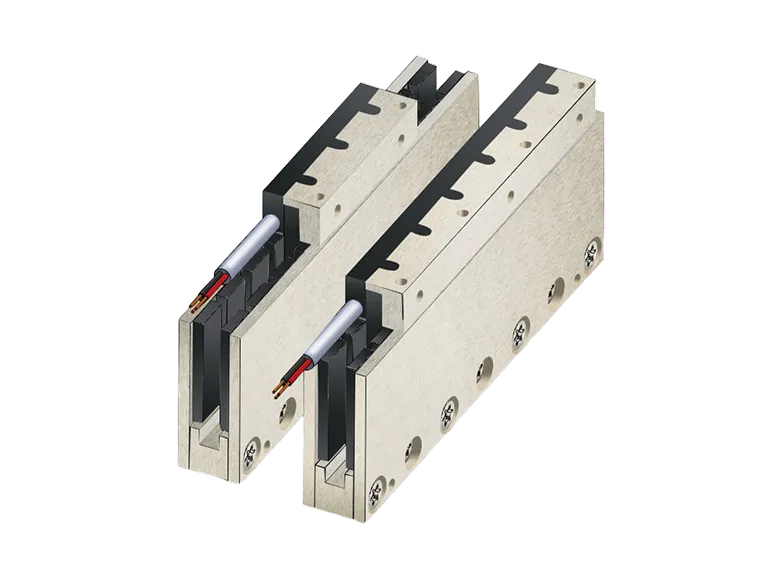

IL44 Series Ironless Linear Motor – High Force & Precision
Discover advanced performance and application-specific advantages of our IL44 Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.
| Parameter | Remarks | Symbol | Unit | IL44-3 | IL44-6 | IL44-9 |
|---|---|---|---|---|---|---|
| Winding Type | S | S | S | |||
| Motor Type | 3 phases synchronous Ironless 45Vacrms(60Vdc) | |||||
| Peak Force | Magnet@25°C | Fp | N | 45 | 90 | 135 |
| Continuous Force | Coil@110°C | Fc | N | 20 | 40 | 60 |
| Maximum Speed | 60V | Vmax | m/s | 5.0 | 5.0 | 5.0 |
| Motor Force Constant | Mount.Sfc.@20°C | K | N/Arms | 12.4 | 12.4 | 12.4 |
| Motor Constant | Coils@25°C | S | N2/W | 15 | 29 | 44 |
| Parameter | Remarks | Symbol | Unit | IL44-3 | IL44-6 | IL44-9 |
|---|---|---|---|---|---|---|
| Winding Type | S | S | S | |||
| Peak Current | Magnet@25°C | lp | Arms | 3.6 | 7.3 | 11 |
| Continuous Current | Coil@110°C | lc | Arms | 1.6 | 3.2 | 4.8 |
| Back EMF | Phase-Phase peak | Bemf | V/M/s | 10 | 10 | 10 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 3.5 | 1.75 | 1.17 |
| Induction Per Phase | l<0.63lp | Lph | Mh | 1.2 | 0.6 | 0.4 |
| Electrical Time Constant | Coil@25°C | Te | Ms | 0.355 | 0.355 | 0.355 |
| Power Loss | All coils | Pc | W | 37 | 74 | 74 |
| Parameter | Remarks | Symbol | Unit | IL44-3 | IL44-6 | IL44-9 |
|---|---|---|---|---|---|---|
| Winding Type | S | S | S | |||
| Thermal R. | Coils to mount. Sfc. | Rth | °C/W | 2.35 | 1.175 | 0.5875 |
| Temp. Sensor | None (NTC or PTC can be customized) | |||||
| Parameter | Remarks | Symbol | Unit | IL44-3 | IL44-6 | IL44-9 |
|---|---|---|---|---|---|---|
| Winding Type | S | S | S | |||
| Coil Unit Weight | ex.cables | W | kg | 0.045 | 0.085 | 0.15 |
| Coil Unit Length | ex.cables | L | Mm | 49 | 97 | 145 |
| Motor Attraction Force | Rms@0A | Fa | N | 0 | 0 | 0 |
| Magnet Pitch | N-N | τ | mm | 24 | 24 | 24 |
| Power Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | 4.5(3*0.3mm2) | ||
| Sensor Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | Customizable | ||
| Cable life | Minimum | Cycles | ≥12,000,000 | |||
| Bending Radius Static | Minimum | mm | ≥4xφ | |||
| Bending Radius Dynamic | Minimum | mm | ≥7.5xφ | |||
| Parameter | Remarks | Symbol | Unit | IL44-3 | IL44-6 | IL44-9 |
|---|---|---|---|---|---|---|
| Winding Type | S | S | S |
| Parameter | Remarks | Symbol | Unit | IL44-3 | IL44-6 | IL44-9 |
|---|---|---|---|---|---|---|
| Winding Type | S | S | S |

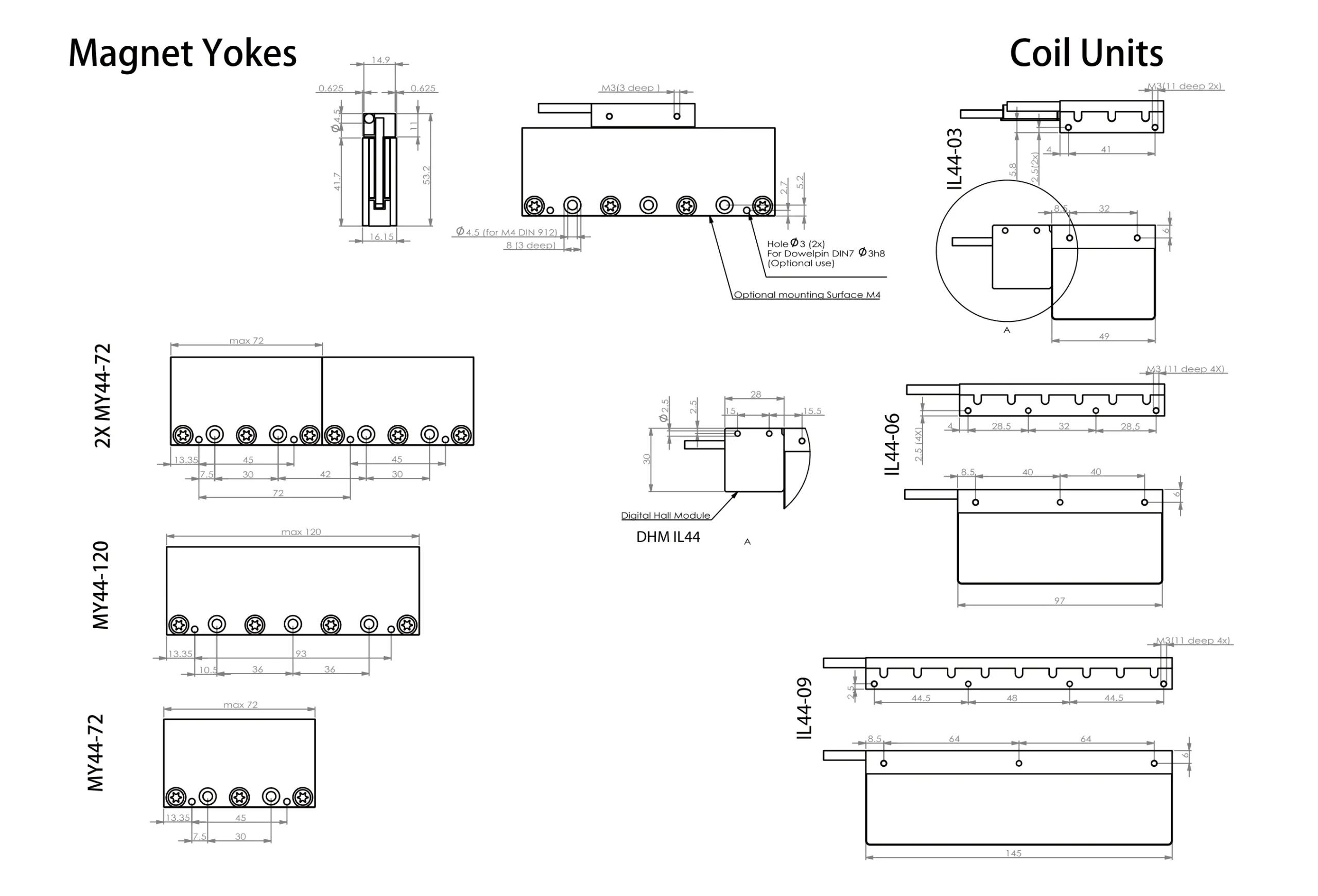

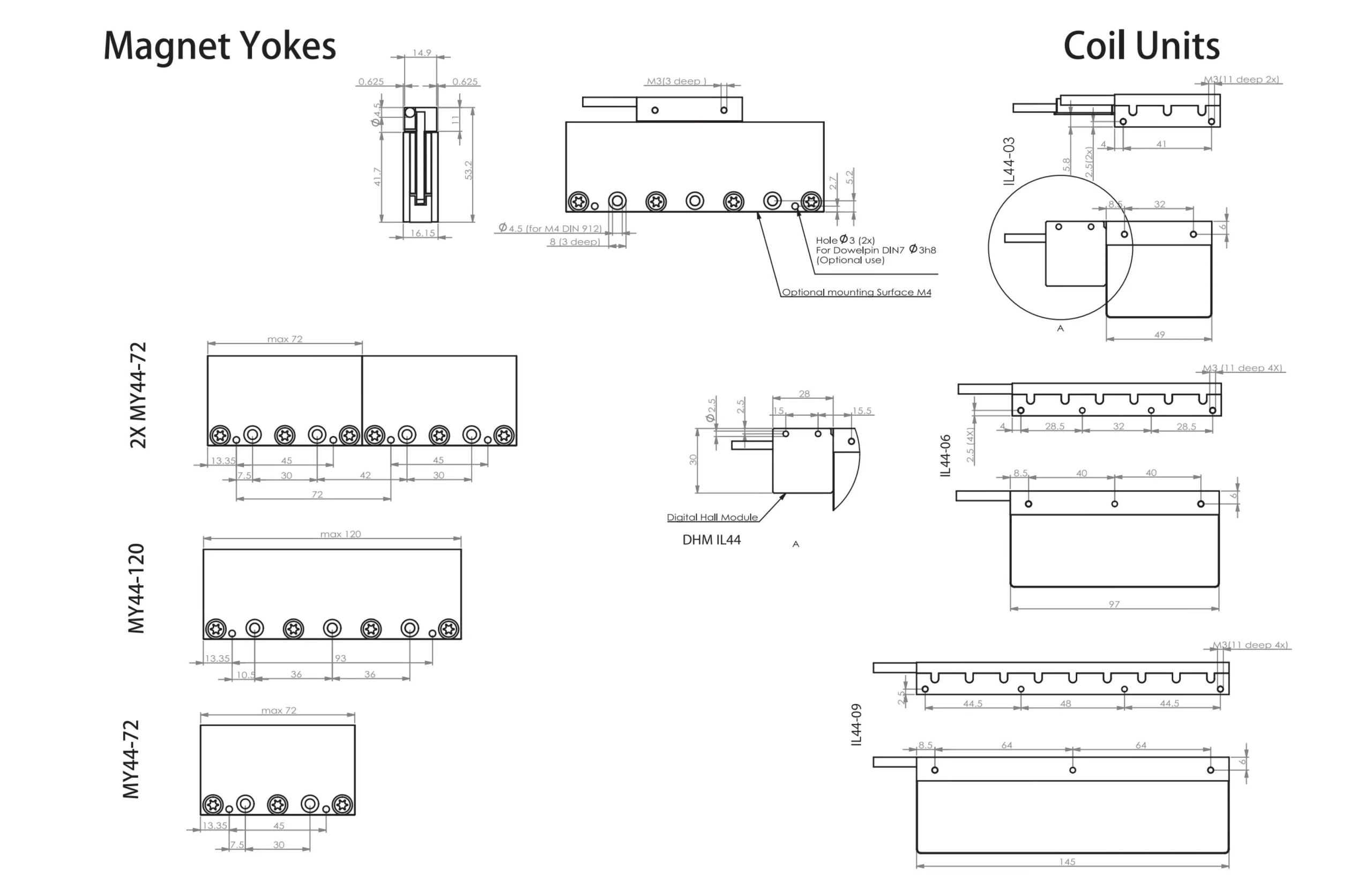

| Magnet Plate Mounting Dimensions | ||
|---|---|---|
| Lenght (mm) | 72 | 120 |
| M4 Bolts | 2 | 3 |
| Weight(Kg/m) | 3.3 | |
| Magnet Plates can be jointed together without limits | ||
| Dig. Hall Sensor Connetions | ||
|---|---|---|
| 1 | 0V | White |
| 2 | 5~28V | Brown |
| 3 | Hall A | Green |
| 4 | Hall B | Yellow |
| 5 | Hall C | Red |
| Motor Connetions | ||
|---|---|---|
| 1 | Phase U | Black |
| 2 | Phase V | Red |
| 3 | Phase W | White |
| 4 | PE | Shield |
