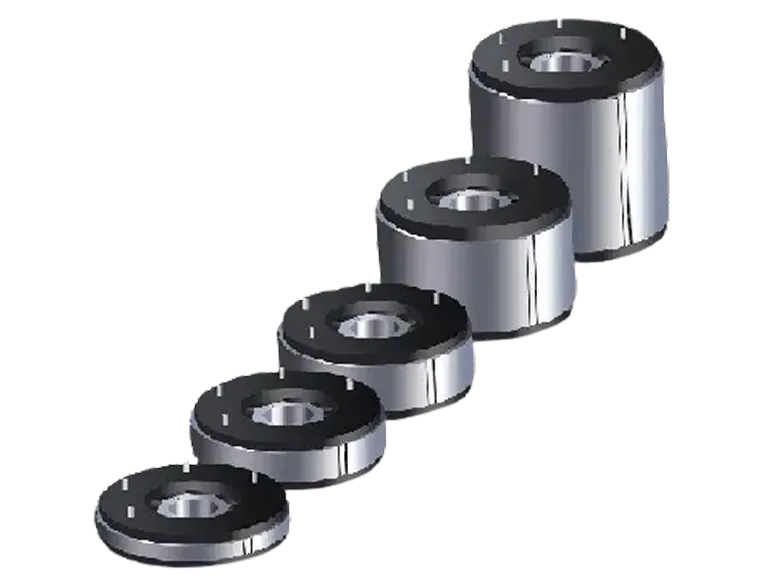

TM65 Torque Motor – Compact Direct Drive with High Torque
Discover advanced performance and application-specific advantages of our TM65 Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.
| Parameter | Remarks | Symbol | Unit | TM65-17 | TM65-25 | TM65-34 | TM65-60 | TM65-92 |
|---|---|---|---|---|---|---|---|---|
| Winding Type | N | N | Y | Y | Y | |||
| Motor type | 3 phases synchronous Ironcore 220-380Vac rms (48V-600Vdc) | |||||||
| Peak torque | Magnet@25°C | Tp | Nm | 0.77 | 1.54 | 2.70 | 6.60 | 11.00 |
| Continuous torque | Coil@110°C | Tc | Nm | 0.36 | 0.85 | 1.30 | 2.78 | 4.60 |
| Maximum Speed | @Tc | Vmax | rpm | 28000 | 28000 | 28000 | 13000 | 10000 |
| Motor Torque Constant | Up to lc | K | N/Arms | 0.072 | 0.140 | 0.118 | 0.320 | 0.418 |
| Motor Constant | Coils@25°C | S | N2/W | 0.002 | 0.006 | 0.012 | 0.036 | 0.046 |
| Parameter | Remarks | Symbol | Unit | TM65-17 | TM65-25 | TM65-34 | TM65-60 | TM65-92 |
|---|---|---|---|---|---|---|---|---|
| Winding Type | N | N | Y | Y | Y | |||
| Peak Current | Magnet@25°C | lp | Arms | 14.5 | 14.9 | 30.9 | 27.9 | 35.6 |
| Max.Continuous Current | Coil@110°C | lc | Arms | 5.0 | 6.1 | 11.0 | 8.7 | 11.0 |
| Back EMF Phase to Phase peak | 25℃+/-10% | Kep | V/krpm | 6 | 12 | 10 | 28 | 36 |
| Back EMF Phase to Phase RMS | 25℃+/-10% | Ke | V/krpm | 4 | 9 | 7 | 19 | 25 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 0.73 | 1.02 | 0.38 | 0.95 | 1.28 |
| Induction Per Phase | I<0.63lp | Lph | Mh | 1.10 | 2.04 | 0.94 | 2.66 | 4.86 |
| Electrical Time Constant | Coil@25°C | τe | Ms | 1.5 | 2.0 | 2.5 | 2.8 | 3.8 |
| Max. Continuous Power Loss | All coils | Pc | W | 71.2 | 146.6 | 177.5 | 279.6 | 604.6 |
| Poles | Nmag. | nr | 8.0 | 8.0 | 8.0 | 8.0 | 8.0 |
| Parameter | Remarks | Symbol | Unit | TM65-17 | TM65-25 | TM65-34 | TM65-60 | TM65-92 |
|---|---|---|---|---|---|---|---|---|
| Winding Type | N | N | Y | Y | Y | |||
| Thermal Resistance | Coils to mount. Sfc. | Rth | °C/W | 1.5 | 0.8 | 0.58 | 0.37 | 0.11 |
| Temperature Sensor | Optional PTC 1kΩ/NTC | |||||||

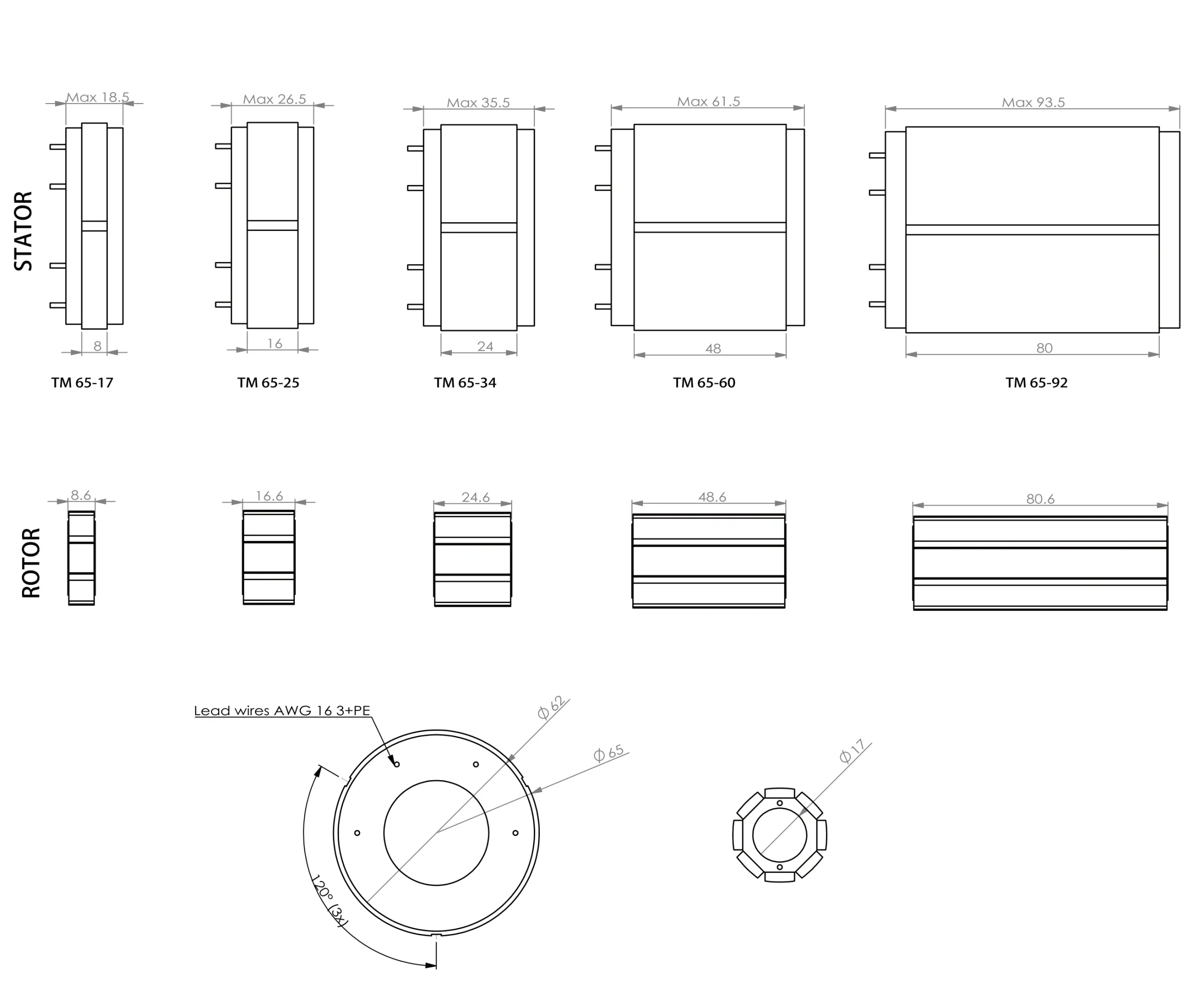

| Parameter | Remarks | Symbol | Unit | TM65-17 | TM65-25 | TM65-34 | TM65-60 | TM65-92 |
|---|---|---|---|---|---|---|---|---|
| Winding type | N | N | Y | Y | Y | |||
| Stator outer diameter | Ods | mm | 65 | |||||
| Rotor inner diameter | Idr | mm | 17 | |||||
| Rotor inertia | JR | Kg*m² | 4.00E-06 | 7.80E-06 | 1.30E-06 | 2.50E-05 | 4.20E-05 | |
| gross weight | Rotor+stator ex.cables | W | kg | 0.18 | 0.32 | 0.46 | 0.95 | 1.6 |
| Power line type | length 0.5m | Diameter | mm (mm2) | Leadwires (4*1.5mm2) | ||||
| Parameter | Remarks | Symbol | Unit | TM65-17 | TM65-25 | TM65-34 | TM65-60 | TM65-92 |
|---|---|---|---|---|---|---|---|---|
| Winding Type | N | N | Y | Y | Y |
| Parameter | Remarks | Symbol | Unit | TM65-17 | TM65-25 | TM65-34 | TM65-60 | TM65-92 |
|---|---|---|---|---|---|---|---|---|
| Winding Type | N | N | Y | Y | Y |
