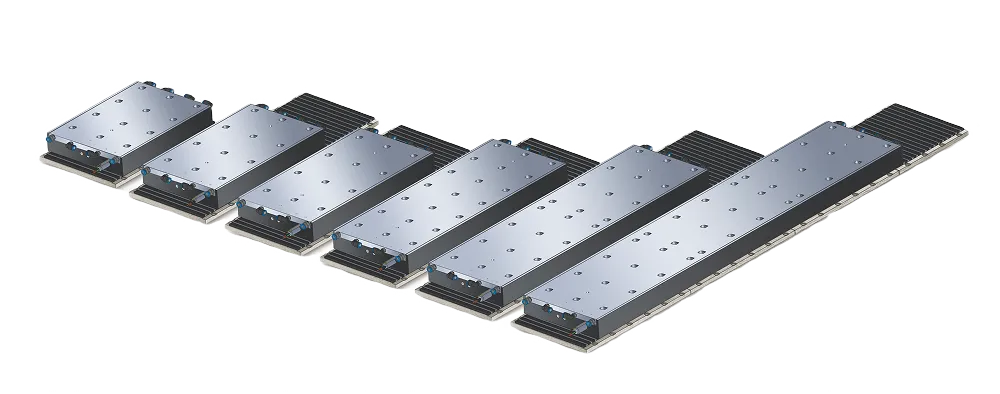

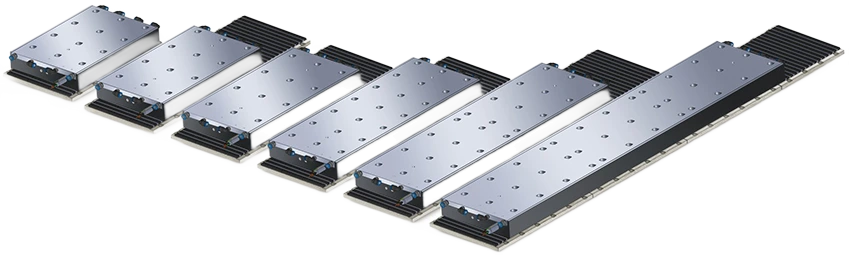

IC177WC Ironcore Linear Motor – High Force, Compact | ITG
Discover advanced performance and application-specific advantages of our IC177WC Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.
| Parameter | Remark | Symbol | Unit | IC177WC-12 | IC177WC-15 | IC177WC-18 | IC177WC-24 | IC177WC-30 | IC177WC-45 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding type | N | S | N | S | N | S | N | S | N | S | N | S | |||
| Motor Type | Three-phase synchronous iron core 380Vacrms (600Vdc) | ||||||||||||||
| Ultimate thrust | Magnet@25°C | Fu | N | 2700 | 2700 | 3375 | 3375 | 4050 | 4050 | 5400 | 5400 | 6750 | 6750 | 10125 | 10125 |
| Peak thrust | Magnet@25°C | Fp | N | 2400 | 2400 | 3000 | 3000 | 3600 | 3600 | 4800 | 4800 | 6000 | 6000 | 9000 | 9000 |
| Continuous current (water cooling) | Coil@110°C | Fc | N | 1500 | 1500 | 1950 | 1950 | 2340 | 2340 | 3000 | 3000 | 3900 | 3900 | 5850 | 5850 |
| Continuous current (self-cooling) | Coil@110°C | Fc | N | 1200 | 1200 | 1500 | 1500 | 1800 | 1800 | 2400 | 2400 | 3000 | 3000 | 4500 | 4500 |
| Maximum speed | @560V | Vmax | m/s | 2 | 4 | 1.5 | 4 | 2 | 4 | 2 | 4 | 1.5 | 4 | 1.5 | 4 |
| Motor force constant | Mount.Sfc.@20°C | K | N/Arms | 279.0 | 139.5 | 336.0 | 139.5 | 279.0 | 135.0 | 279.0 | 139.5 | 336.0 | 139.5 | 336.0 | 139.5 |
| Motor constant | Coils@25°C | S | N2 / W | 2864 | 2864 | 3580 | 3580 | 4296 | 4296 | 5728 | 5728 | 7160 | 7160 | 10740 | 10740 |
| Parameter | Remarks | Symbol | Unit | IC177WC-12 | IC177WC-15 | IC177WC-18 | IC177WC-24 | IC177WC-30 | IC177WC-45 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding type | N | S | N | S | N | S | N | S | N | S | N | S | |||
| Ultimate Current | Magnet@25°C | lu | Arms | 13.1 | 26 | 13.5 | 33 | 20 | 41 | 27 | 52 | 28 | 66 | 41 | 98 |
| Peak Current | Magnet@25°C | lp | Arms | 10 | 20 | 11 | 25 | 15 | 31 | 20 | 40 | 21 | 50 | 31 | 75 |
| Continuous Current Water cooled | Coil@110°C | lc | Arms | 5.5 | 11 | 6 | 14 | 8 | 17 | 11 | 22 | 12 | 29 | 18 | 42 |
| Continuous Current Air cooled | Coil@110°C | lc | Arms | 4.3 | 9 | 4.3 | 11 | 6.5 | 13.4 | 9 | 18 | 9 | 22 | 13.4 | 32 |
| Back EMF | Phase-Phase peak | Bemf | V/M/s | 228 | 114 | 274 | 114 | 228 | 110 | 228 | 114 | 274 | 114 | 228 | 114 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 9.1 | 2.27 | 10.8 | 1.82 | 6.06 | 1.45 | 4.54 | 1.14 | 5.4 | 0.91 | 3.61 | 0.61 |
| Induction Per Phase | l<0.63lp | Lph | Mh | 77.35 | 19 | 92 | 15 | 52 | 12 | 39 | 10 | 46 | 8 | 31 | 5 |
| Electrical Time Constant | Coil@25°C | τe | Ms | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 |
| Power Loss | All coils | Pc | W | 713 | 713 | 891 | 891 | 1011 | 1011 | 1347 | 1347 | 1684 | 1684 | 2527 | 2527 |
| Parameter | Remarks | Symbol | Unit | IC177WC-12 | IC177WC-15 | IC177WC-18 | IC177WC-24 | IC177WC-30 | IC177WC-45 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding type | N | S | N | S | N | S | N | S | N | S | N | S | |||
| Thermal Resistance | Coils to mount. Sfc. | Rth | °C/W | 0.13 | 0.13 | 0.12 | 0.12 | 0.11 | 0.11 | 0.09 | 0.09 | 0.07 | 0.07 | 0.03 | 0.03 |
| Temp. Sensor | PTC 1kΩ/NTC | ||||||||||||||
| Parameter | Remarks | Symbol | Unit | IC177WC-12 | IC177WC-15 | IC177WC-18 | IC177WC-24 | IC177WC-30 | IC177WC-45 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding type | N | S | N | S | N | S | N | S | N | S | N | S | |||
| Coil Unit Weight | ex.cables | W | kg | 7 | 7 | 9 | 9 | 12 | 12 | 16 | 16 | 18 | 18 | 27 | 27 |
| Coil Unit Length | ex.cables | L | Mm | 248 | 248 | 296 | 296 | 336 | 336 | 440 | 440 | 568 | 568 | 840 | 840 |
| Motor Attraction Force | Rms@0A | Fa | N | 5100 | 5100 | 6225 | 6225 | 7350 | 7350 | 6800 | 6800 | 12450 | 12450 | 18675 | 18675 |
| Magnet Pitch | N-N | τ | mm | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Power Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | 10.1(4G2.5mm2 AWG14) | 12.1(4G4mm2 AWG14) | 14.7(4G6mm2) | |||||||||
| Sensor Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | 4.9(4*0.14mm2 AWG26) | |||||||||||
| Cable life | Minimum | Cycles | >5,000,000 | >3-5millions | |||||||||||
| Bending Radius Static | Minimum | mm | ≥4xφ | ≥5xφ | |||||||||||
| Bending Radius Dynamic | Minimum | mm | ≥7.5xφ | ≥10xφ | |||||||||||
| Parameter | Remarks | Symbol | Unit | IC177WC-12 | IC177WC-15 | IC177WC-18 | IC177WC-24 | IC177WC-30 | IC177WC-45 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding type | N | S | N | S | N | S | N | S | N | S | N | S | |||
| Parameter | Remarks | Symbol | Unit | IC177WC-12 | IC177WC-15 | IC177WC-18 | IC177WC-24 | IC177WC-30 | IC177WC-45 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Winding type | N | S | N | S | N | S | N | S | N | S | N | S | |||

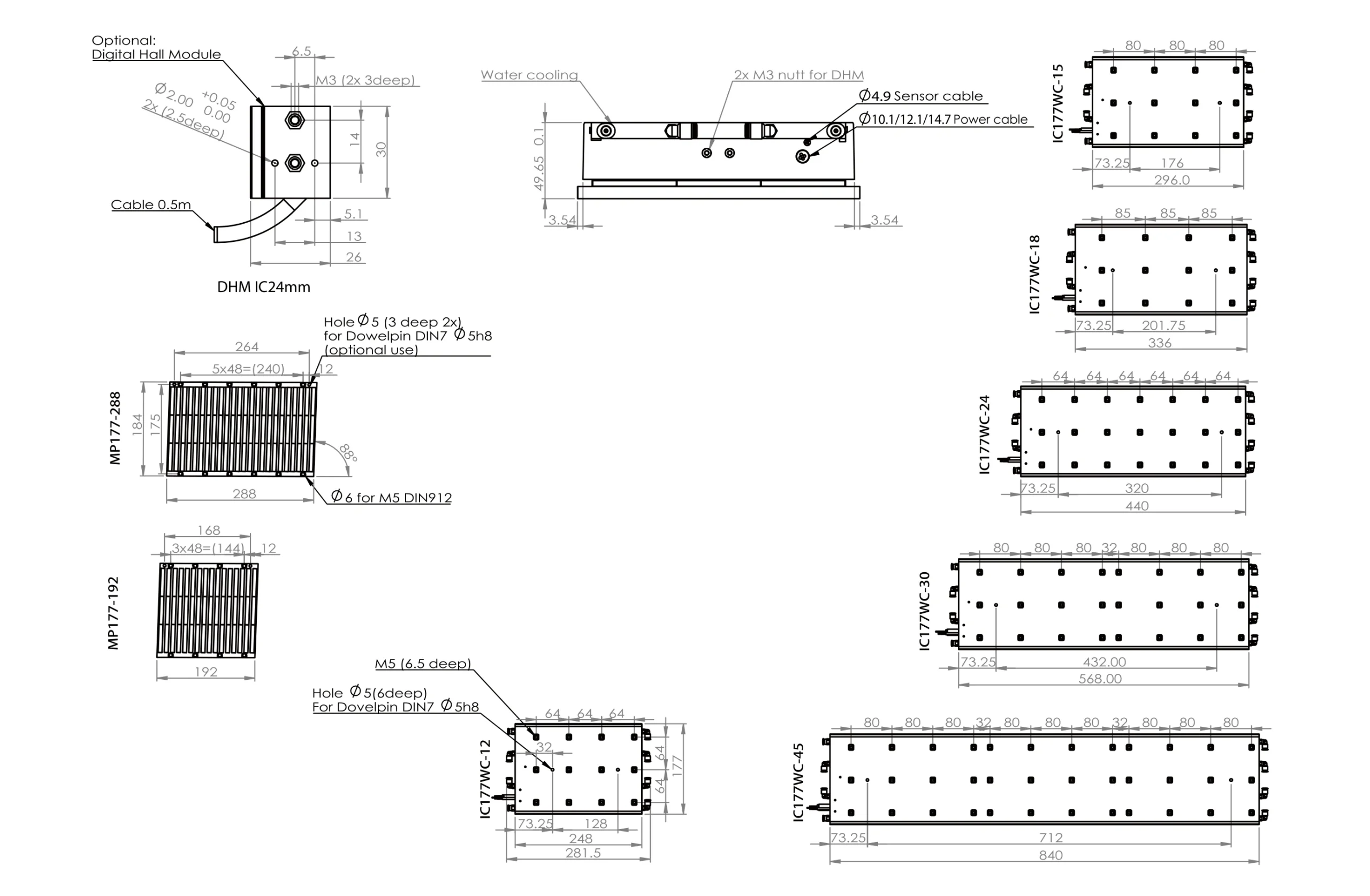

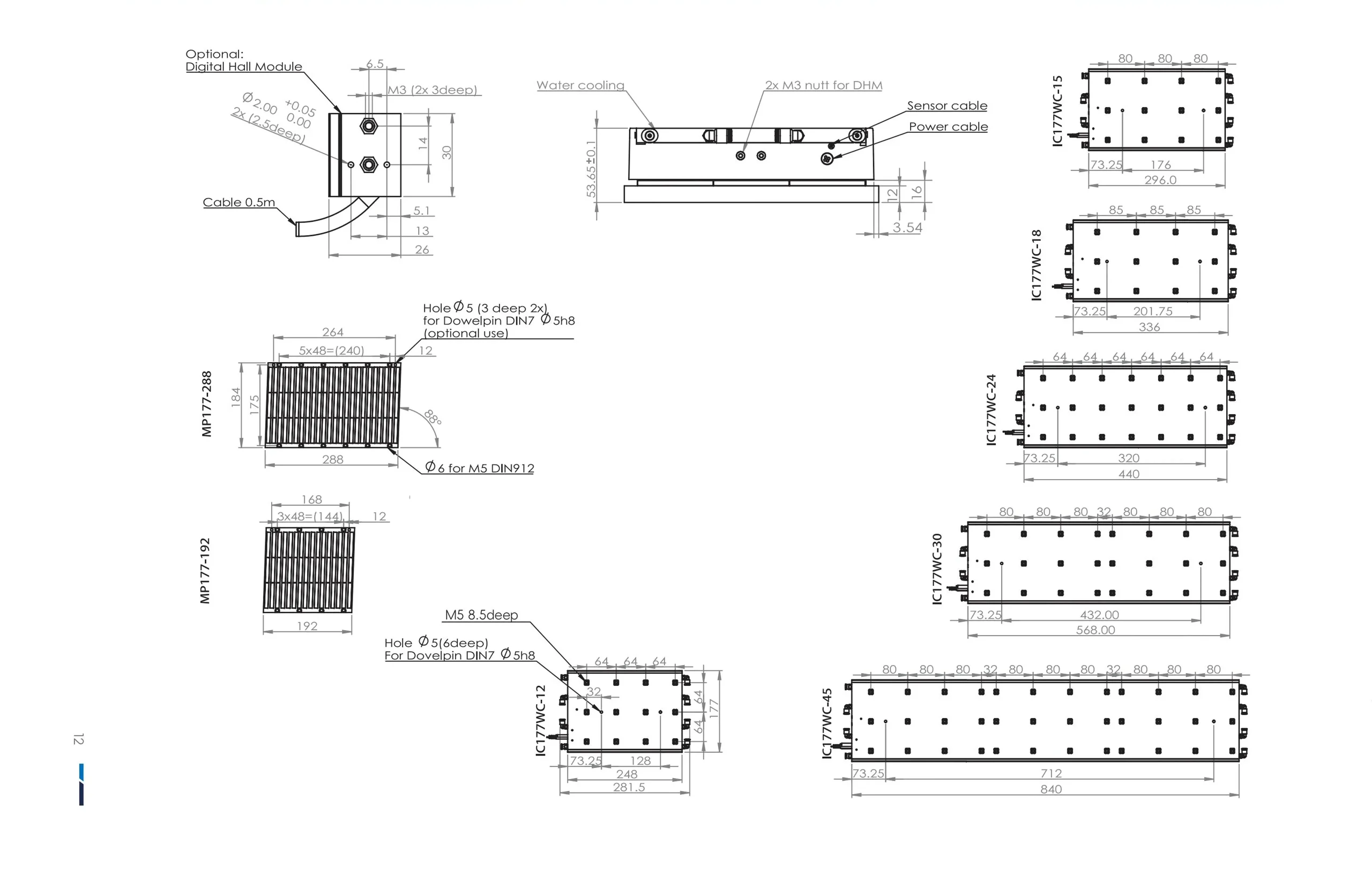

| Magnet Plate Mounting Dimensions | ||
|---|---|---|
| Lenght (mm) | 192 | 288 |
| M5 Bolts | 8 | 12 |
| Weight(Kg/m) | 17 | |
| Magnet Plates can be jointed together without limits | ||
| Dig. Hall Sensor Connetions | ||
|---|---|---|
| 1 | 0V | Gray |
| 2 | 5~28V | Brown |
| 3 | Hall A | White |
| 4 | Hall B | Green |
| 5 | Hall C | Yellow |
| Motor Connetions | ||
|---|---|---|
| 1 | Phase U | Phase 1 |
| 2 | Phase V | Phase 2 |
| 3 | Phase W | Phase 3 |
| 4 | PE | Yellow-Green |
| Temp. Sensor Connetions | ||
|---|---|---|
| 1 | PTC 1KΩ | Brown |
| 2 | PTC 1KΩ | White |
| 3 | NTC | Yellow |
| 4 | NTC | Green |
