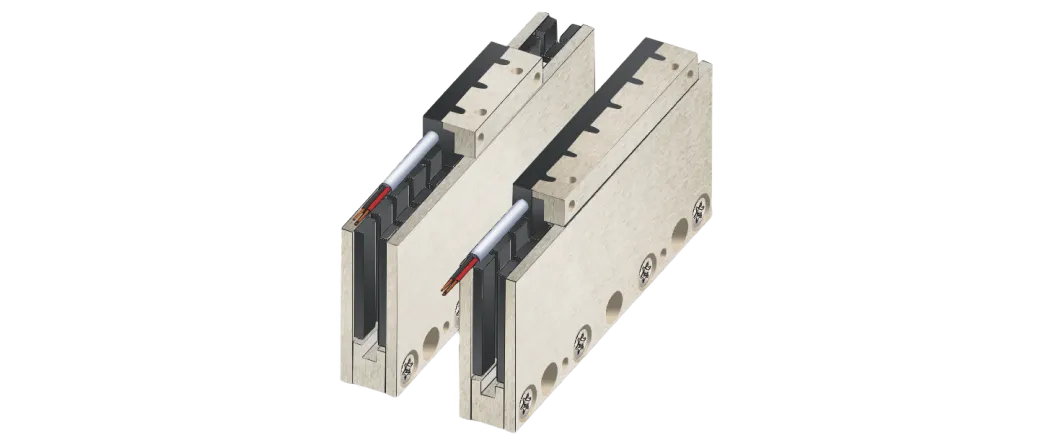

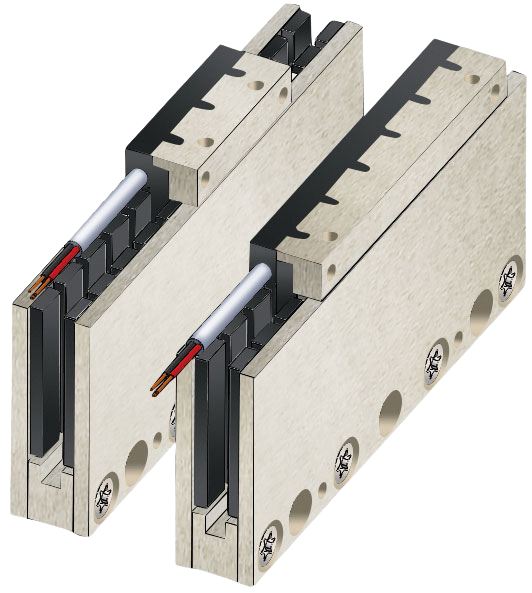

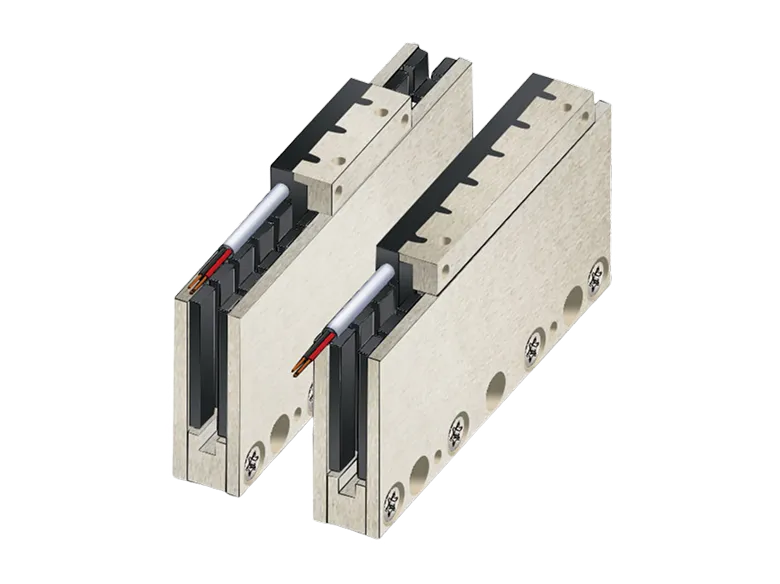

IL42 Ironless Linear Motor – Compact, Clean & Precise | ITG
Discover advanced performance and application-specific advantages of our IL42 Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.
| Parameter | Remarks | Symbol | Unit | IL42-3 | IL42-6 |
|---|---|---|---|---|---|
| Winding Type | S | S | |||
| Motor Type | 3 phases synchronous Ironless 45Vacrms(60Vdc) | ||||
| Peak Force | Magnet@25°C | Fp | N | 40 | 80 |
| Continuous Force | Coil@110°C | Fc | N | 11 | 22 |
| Maximum Speed | 60V | Vmax | m/s | 5.4 | 5.4 |
| Motor Force Constant | Mount.Sfc.@20°C | K | N/Arms | 11.5 | 11.5 |
| Motor Constant | Coils@25°C | S | N2/W | 9 | 19 |
| Parameter | Remarks | Symbol | Unit | IL42-3 | IL42-6 |
|---|---|---|---|---|---|
| Winding Type | S | S | |||
| Peak Current | Magnet@25°C | lp | Arms | 3.5 | 7.0 |
| Continuous Current | Coil@110°C | lc | Arms | 1.0 | 1.9 |
| Back EMF | Phase-Phase peak | Bemf | V/M/s | 9 | 9 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 4.75 | 2.375 |
| Induction Per Phase | l<0.63lp | Lph | Mh | 0.8 | 0.4 |
| Electrical Time Constant | Coil@25°C | Te | Ms | 0.16 | 0.16 |
| Power Loss | All coils | Pc | W | 15 | 30 |
| Parameter | Remarks | Symbol | Unit | IL42-3 | IL42-6 |
|---|---|---|---|---|---|
| Winding Type | S | S | |||
| Thermal R. | Coils to mount. Sfc. | Rth | °C/W | 3.58 | 1.79 |
| Temp. Sensor | Temperature Cut-of | None (NTC or PTC can be customized) | |||
| Parameter | Remarks | Symbol | Unit | IL42-3 | IL42-6 | IL42-03S DHM | IL42-06S DHM |
|---|---|---|---|---|---|---|---|
| Winding Type | S | S | |||||
| Coil Unit Weight | ex.cables | W | kg | 0.03 | 0.06 | 0.035 | 0.065 |
| Coil Unit Length | ex.cables | L | Mm | 34 | 67 | 52 | 85 |
| Motor Attraction Force | Rms@0A | Fa | N | 0 | 0 | 0 | 0 |
| Magnet Pitch | N-N | τ | mm | 16.5 | 16.5 | 16.5 | 16.5 |
| Power Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | 4.5(3*0.3mm2) | 5.6(3*0.3mm2+5*0.08) | ||
| Sensor Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | Customizable | |||
| Cable life | Minimum | Cycles | ≥12,000,000 | ||||
| Bending Radius Static | Minimum | mm | ≥4xφ | ||||
| Bending Radius Dynamic | Minimum | mm | ≥7.5xφ | ||||
| Parameter | Remarks | Symbol | Unit | IL42-3 | IL42-6 |
|---|---|---|---|---|---|
| Winding Type | S | S |
| Parameter | Remarks | Symbol | Unit | IL42-3 | IL42-6 |
|---|---|---|---|---|---|
| Winding Type | S | S |

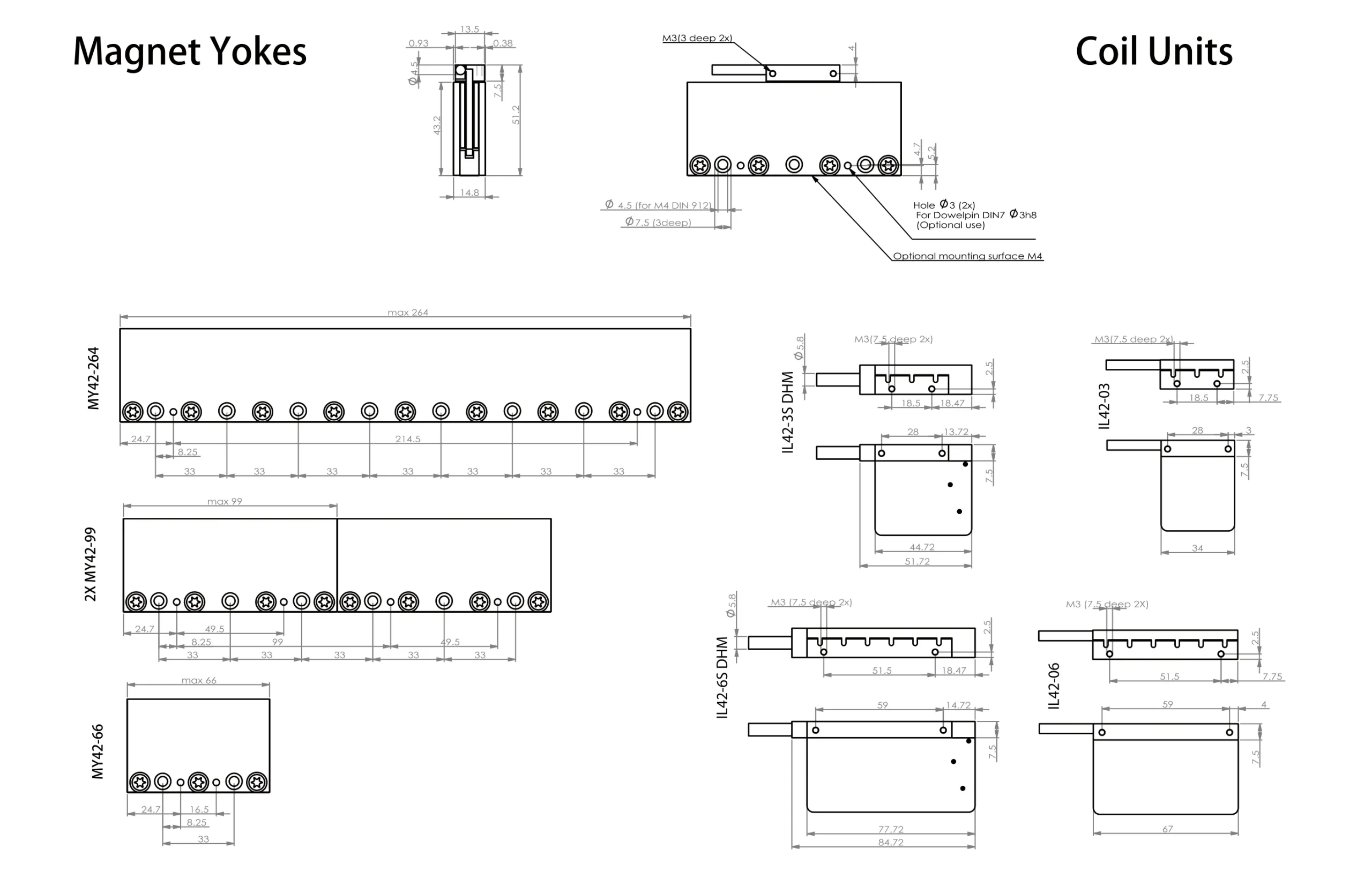

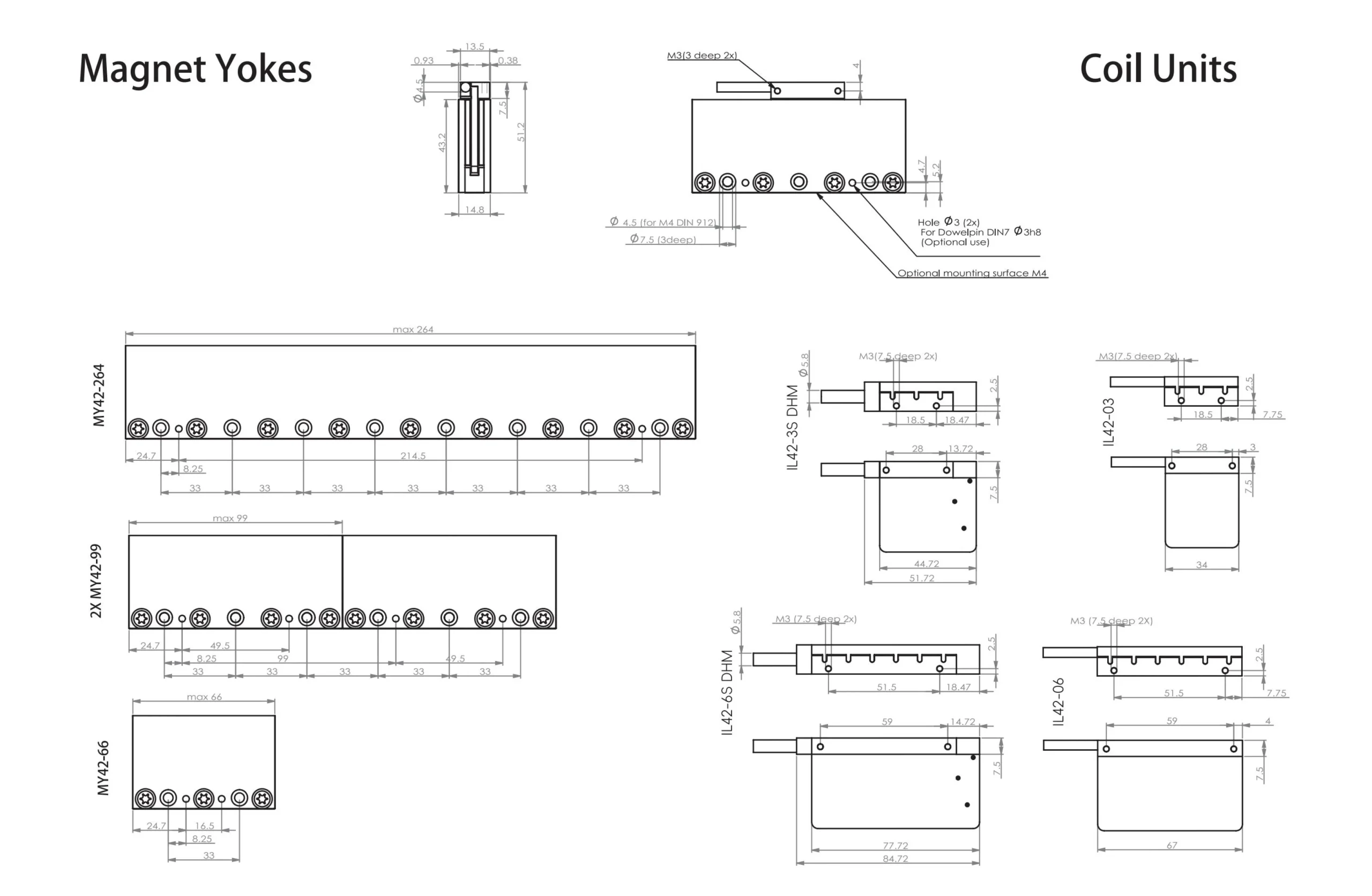

| Magnet Plate Mounting Dimensions | |||
|---|---|---|---|
| Lenght (mm) | 66 | 99 | 264 |
| M4 Bolts | 2 | 3 | 8 |
| Weight(Kg/m) | 2.05 | ||
| Magnet Plates can be jointed together without limits | |||
| Dig. Hall Sensor Connetions | ||
|---|---|---|
| 1 | 0V | White/Gray |
| 2 | 5~28V | Brown |
| 3 | Hall A | Green/Blue |
| 4 | Hall B | Red/Green |
| 5 | Hall C | Yellow |
| Motor Connetions | ||
|---|---|---|
| 1 | Phase U | Black |
| 2 | Phase V | Red |
| 3 | Phase W | White |
| 4 | PE | Shield |
