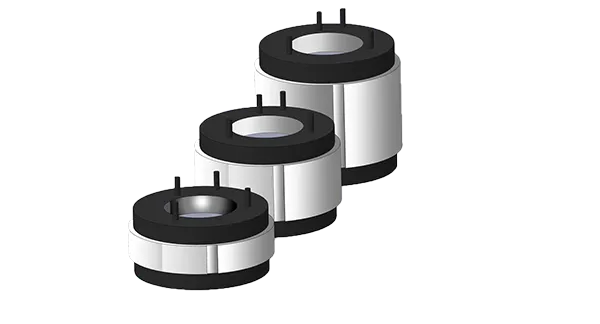

High-Precision Linear Motors by ITG Linear Motor
Discover advanced performance and application-specific advantages of our TM40 Series, designed for optimal motion control in modern automation systems.
A quick look at the key specs, features, and performance highlights.
| Parameter | Remarks | Symbol | Unit | TM40-17 | TM40-25 | TM40-34 |
|---|---|---|---|---|---|---|
| Winding Type | N | N | N | |||
| Motor type Max. voltage ph-ph | 3 phases synchronous Ironcore 48Vdc-220Vac rms (48V-320Vdc) | |||||
| Peak torque@20℃/s increase | Magnet@25°C | Tp | Nm | 0.22 | 0.44 | 0.77 |
| Continuous torque | Coil@110°C | Tc | Nm | 0.10 | 0.23 | 0.36 |
| Maximum Speed | @Tc 320Vdc | nmax | rpm | 30000 | 30000 | 30000 |
| Motor Torque Constant | Up to lc | Kt | Nm/Arms | 0.020 | 0.040 | 0.071 |
| Motor Constant | Coils@25°C | Km | Nm2/W | 0.0007 | 0.0019 | 0.0040 |
| Parameter | Remarks | Symbol | Unit | TM40-17 | TM40-25 | TM40-34 |
|---|---|---|---|---|---|---|
| Winding Type | N | N | N | |||
| Peak Current | Magnet@25°C | lp | Arms | 15.0 | 15.0 | 15.0 |
| Max.Continuous Current | Coil@110°C | lc | Arms | 5.0 | 5.8 | 5.1 |
| Back EMF Phase to Phase peak | 25℃+/-10% | Kep | V/krpm | 1.72 | 3.44 | 6.11 |
| Back EMF Phase to Phase RMS | 25℃+/-10% | Ke | V/krpm | 1.22 | 2.44 | 4.32 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 0.20 | 0.28 | 0.43 |
| Induction Per Phase | I<0.63lp | Lph | Mh | 0.11 | 0.18 | 0.35 |
| Electrical Time Constant | Coil@25°C | τe | Ms | 0.6 | 0.6 | 0.8 |
| Max. Continuous Power Loss | All coils | Pc | W | 19.5 | 36.2 | 42.1 |
| Poles | Nmag. | nr | 4.0 | 4.0 | 4.0 |
| Parameter | Remarks | Symbol | Unit | TM40-17 | TM40-25 | TM40-34 |
|---|---|---|---|---|---|---|
| Winding Type | N | N | N | |||
| Thermal Resistance | Coils to mount. Sfc. | Rth | °C/W | 2.1 | 1.05 | 0.74 |
| Temperature Sensor | None | None | None |

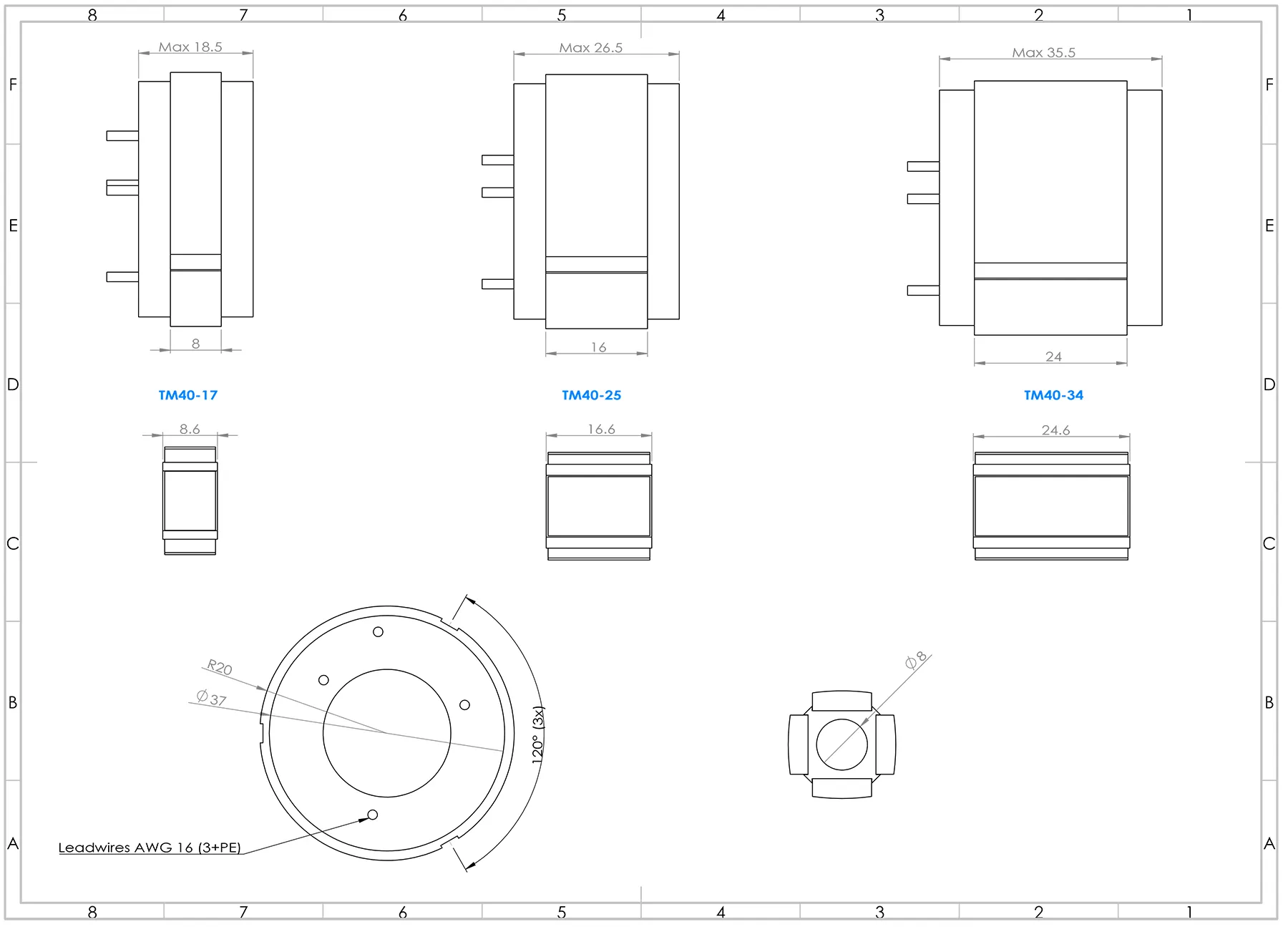

| Parameter | Remarks | Symbol | Unit | TM40-17 | TM40-25 | TM40-34 |
|---|---|---|---|---|---|---|
| Winding Type | N | N | N | |||
| Stator OD | Ods | mm | 40 | 40 | 40 | |
| Rotor ID | Idr | mm | 8 | 8 | 8 | |
| Rotor inertia | JR | Kg*m² | 2.80E-06 | 5.60E-06 | 8.40E-06 | |
| Total Mass | Rotor+stator ex.cables | W | kg | 0.01 | 0.0194 | 0.03 |
| *Remark: Y Z Types can be drivered with low voltage | ||||||
| Parameter | Remarks | Symbol | Unit | TM40-17 | TM40-25 | TM40-34 |
|---|---|---|---|---|---|---|
| Winding Type | N | N | N |
| Parameter | Remarks | Symbol | Unit | TM40-17 | TM40-25 | TM40-34 |
|---|---|---|---|---|---|---|
| Winding Type | N | N | N |
