Selecting the right high torque servo motor is more than just picking a component, it’s about unlocking the full potential of your machinery. Traditional servo motors with gearboxes often fall short when precision, smooth motion, and high torque are needed. That’s where ITG Torque Motors come in: direct-drive, zero-backlash solutions that deliver powerful torque, precise control, and compact design.
From robotic arms and CNC rotary tables to advanced digital cutting systems, choosing the right motor can maximize efficiency, reduce maintenance, and elevate the performance of your entire system. This guide will walk you through the key factors to consider and explain why ITG Torque Motors are the ultimate choice for high-torque applications.
Understand What a High Torque Servo Motor Is

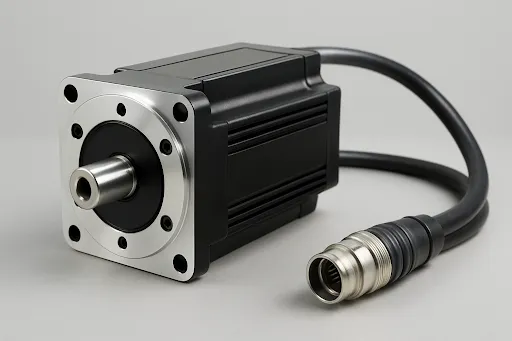

A high torque servo motor is a specialized type of motor designed to deliver exceptional torque while maintaining precise control over motion. Unlike standard motors, which may struggle at low speeds or under heavy loads, high torque servo motors provide strong, consistent torque even when operating at slow speeds or holding a position. This makes them essential in applications that demand both power and precision, such as robotics, CNC machinery, and high-performance automation systems.
At its core, a servo motor combines three key components: a motor, a feedback sensor (usually an encoder), and a control system. The feedback system constantly monitors the motor’s position, speed, and torque, allowing the controller to make rapid adjustments. This enables accurate positioning, smooth motion, and responsive performance, characteristics that are critical when precision cannot be compromised.
However, traditional high torque servo motors often rely on gearboxes to achieve the necessary torque. While effective, this introduces drawbacks such as mechanical backlash, increased wear and tear, and higher maintenance requirements. Gearboxes can also limit speed and reduce overall efficiency, especially in applications requiring frequent starts, stops, or rapid changes in direction.
This is where Torque Motors, like those offered by ITG, come into play. A torque motor is essentially a direct-drive servo motor, capable of producing high torque without the need for a gearbox. By eliminating gears, torque motors achieve zero-backlash motion, higher reliability, and lower maintenance, all while delivering precise, smooth, and powerful performance. Additionally, many ITG torque motors feature compact or hollow shaft designs, making them ideal for applications with limited space or requiring cable routing through the motor shaft.
In summary, understanding what a high torque servo motor is goes beyond just knowing its torque rating. It involves recognizing how torque, precision, and control interact to meet the demands of modern automation.
Application of High Torque Servo Motor
High torque servo motors are indispensable in a wide range of industrial and automation applications where precision, smooth motion, and powerful torque are critical. Their unique ability to deliver consistent torque at low speeds or while holding position makes them suitable for tasks that traditional motors cannot handle efficiently. Here are some key applications:
1. Robotics: In robotic arms and automated manipulators, precise control of joint movements is crucial. High torque servo motors allow robots to lift heavier loads, move with smooth trajectories, and maintain exact positions during complex tasks.
2. CNC Machines and Rotary Tables: CNC machines and rotary tables often require motors that can deliver high torque continuously while maintaining precise positioning. High torque servo motors ensure accurate machining and repeatability, even under heavy loads.
3. Digital Cutting Systems: Modern digital cutting equipment, including laser and plotter systems, demands motors that can react quickly and move precisely. High torque servo motors provide the necessary torque to drive cutting heads efficiently while ensuring minimal backlash for sharp, accurate cuts.
4. Semiconductor and Cleanroom Equipment: In semiconductor manufacturing and other cleanroom environments, equipment often requires high-precision motion in confined spaces. Traditional motors with gearboxes may produce unwanted vibration or take up too much space.
5. Automation and Industrial Machinery: Conveyor systems, packaging machines, and automated assembly lines benefit from high torque servo motors because they can handle heavy loads, accelerate quickly, and maintain accurate positioning. Using ITG Torque Motors in these setups ensures consistent performance, reduced downtime, and lower maintenance costs, thanks to their gearless, zero-backlash design.
In essence, any application that demands high torque, precision, and smooth motion can benefit from high torque servo motors.
Key Technical Specifications to Consider about High Torque Servo Motor
Choosing the right high torque servo motor is not just about picking the one with the highest torque rating. To ensure optimal performance, reliability, and integration into your system, it’s essential to evaluate several technical specifications carefully. Here are the most critical factors to consider:
1. Torque and Power Density
Continuous Torque vs Peak Torque: Continuous torque defines the force a motor can sustain indefinitely without overheating, while peak torque indicates the maximum load it can handle for a short duration. Understanding your application’s requirements for both is crucial.
Power Density: High torque in a compact package is often necessary for space-constrained systems. Torque motors, like ITG’s, offer high torque density, providing strong performance without increasing the motor’s size. This ensures efficient use of space in robotic arms, CNC machines, or automated assembly lines.
2. Motor Type and Construction
Direct-Drive vs Geared Servo Motors: Traditional servo motors often require a gearbox to achieve high torque, which introduces backlash and maintenance challenges. Direct-drive torque motors eliminate gears, providing zero-backlash motion, higher reliability, and smoother operation.
Slotless vs Slotted Design: Slotless motors reduce cogging, which translates into more precise, vibration-free motion. Slotted motors are generally more cost-effective but may introduce slight torque ripple. ITG Torque Motors often use slotless or hybrid designs, ideal for applications demanding smooth, accurate motion.
Hollow Shaft Design: A hollow shaft allows routing of cables, pneumatic lines, or fluid through the motor, simplifying system integration and reducing clutter, a feature commonly found in ITG’s torque motor series.
3. Encoder and Feedback Systems
Resolution and Accuracy: The encoder determines how precisely the motor’s position can be measured. High-resolution encoders enable fine positional control, essential for applications like robotic arms or precision cutting systems.
Feedback Type: Incremental or absolute encoders provide real-time information on position and speed. Choosing the right feedback system ensures smooth motion and responsive control, especially during high-speed or dynamic operations.
4. Thermal Management
High torque motors generate heat, especially under continuous heavy loads. Evaluating a motor’s thermal limits and cooling options is crucial to avoid performance degradation or damage. ITG Torque Motors are designed to optimize heat dissipation, maintaining stable performance even in demanding applications.
5. Size and Integration
Dimensions and Mounting: Ensure the motor fits within the mechanical envelope of your system. Consider diameter, height, and mounting interface.
Weight: Lighter motors can reduce mechanical stress on moving components and improve dynamic performance.
Integration with Existing Systems: Consider driver compatibility, electrical requirements, and ease of mounting. ITG Torque Motors are designed for easy integration, with flexible mounting options and standard electrical interfaces.
6. Speed and Acceleration Requirements
Determine the motor’s maximum and operational speed ranges. The ability to accelerate and decelerate rapidly without losing torque or precision is vital for applications like CNC machines or automated pick-and-place systems.
Direct-drive torque motors, like ITG’s, excel in providing high dynamic response, maintaining torque even at varying speeds without the limitations of a gearbox.
7. Environmental Considerations
Operating Conditions: Check for temperature range, humidity, vibration, and potential exposure to dust or liquids. Motors with robust enclosures or IP ratings may be required for harsh environments.
Noise and Vibration: Low-cogging, zero-backlash designs reduce noise and vibration, improving both precision and operator comfort.
Selecting the right high torque servo motor involves more than just torque ratings. You must consider torque, power density, construction, feedback, thermal performance, size, speed, and environmental factors.

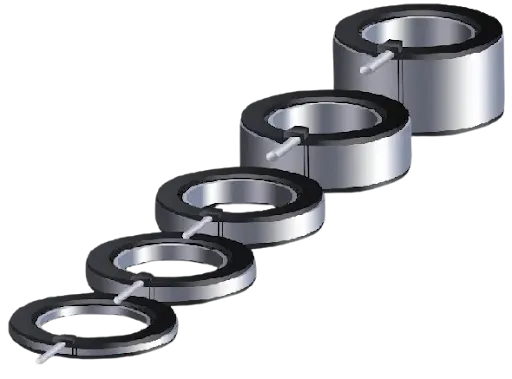

Why ITG Torque Motors Are the Ideal Choice
When it comes to applications requiring high torque and precise motion, ITG Torque Motors stand out as a modern alternative to traditional high torque servo motors. Designed with direct-drive technology, these motors eliminate the need for gearboxes, resulting in zero-backlash motion and smoother, more accurate control. This makes them particularly well-suited for robotics, CNC machines, rotary tables, and other high-precision systems where consistency and repeatability are critical.
ITG Torque Motors deliver strong torque even at low speeds, ensuring reliable performance under demanding loads. Their compact and flexible design allows integration into systems with limited space, while the hollow shaft option provides the convenience of routing cables, pneumatic lines, or fluids directly through the motor, simplifying installation and reducing clutter.
Another key advantage is the support for high-resolution encoders, which enables precise position control and fast dynamic response. Coupled with efficient thermal management, ITG motors maintain peak performance even in continuous operation or heavy-load scenarios. Additionally, by removing mechanical gears, these motors require less maintenance and offer long-term reliability, helping reduce downtime and operating costs.
In short, ITG Torque Motors combine high torque output, precision, compact design, and robust reliability, making them an ideal choice for engineers seeking a high-performance alternative to conventional high torque servo motors.
Conclusion
Choosing the right high torque servo motor is about more than just torque, it’s about precision, reliability, and efficiency. For modern applications, ITG Torque Motors offer a direct-drive, zero-backlash solution that delivers smooth motion, high torque, and long-term reliability in a compact design.
By understanding your application requirements and key motor specifications, you can make an informed choice that maximizes performance, reduces maintenance, and elevates your system’s capabilities. Explore ITG Torque Motors today to experience a smarter, more efficient approach to high-torque motion.
