Linear motor controllers are the unsung heroes behind precise, high-speed motion in modern automation systems. From CNC machines to advanced robotics, these controllers orchestrate every move with pinpoint accuracy, transforming electrical signals into seamless mechanical motion. Understanding how they work can dramatically improve system performance, efficiency, and reliability. In this article, we’ll break down the key components and functions of linear motor controllers, revealing the technology that drives precision in today’s industrial and technological applications.
What Is a Linear Motor Controller?

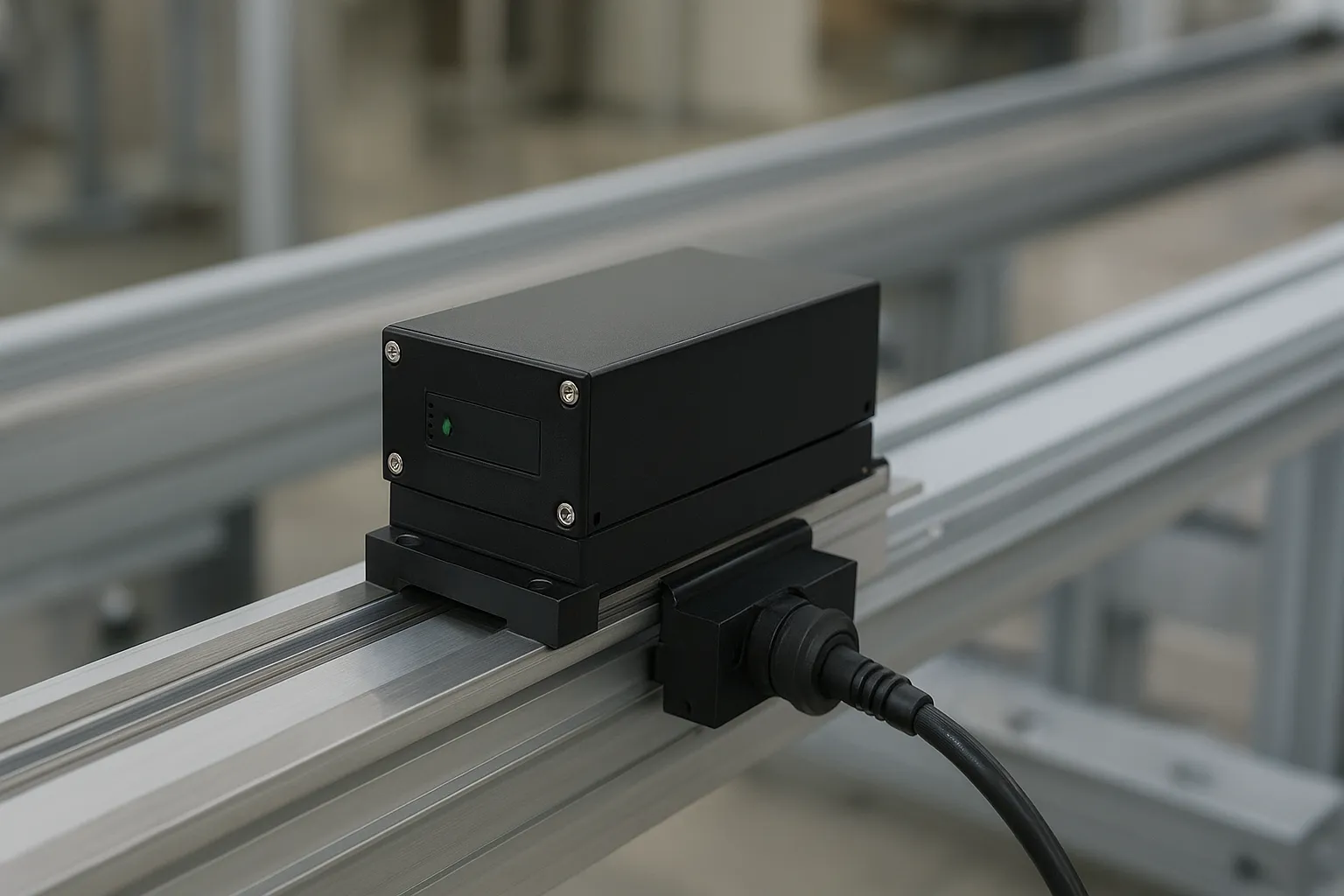

A linear motor controller is an electronic device designed to precisely manage the movement of a linear motor. Unlike traditional rotary motors, which spin around an axis, linear motors produce direct linear motion, making them ideal for applications that require high-speed, high-precision positioning. The controller acts as the “brain” of the system, converting electrical input signals into precise mechanical motion and ensuring that the motor performs exactly as intended.
At its core, a linear motor controller regulates the voltage, current, and timing delivered to the motor, allowing for smooth acceleration, consistent speed, and accurate positioning. This control is essential in applications such as CNC machinery, robotics, semiconductor equipment, and automated inspection systems, where even tiny deviations can lead to errors or inefficiencies.
A well-designed linear motor controller typically supports closed-loop feedback, meaning it constantly monitors the motor’s position, speed, and force through sensors like encoders or resolvers. This feedback allows the controller to make real-time adjustments, correcting any deviations and maintaining optimal performance. Without such a controller, a linear motor cannot achieve its full potential in precision motion control applications.
In short, a linear motor controller is more than just a power supply or driver, it is the central hub of motion intelligence, ensuring that linear motors deliver consistent, accurate, and reliable performance across a wide range of industrial and technological applications.
Key Components of a Linear Motor Controller
A linear motor controller is made up of several essential components that work together to ensure precise, reliable, and efficient motion. Understanding these components helps engineers and system designers optimize performance and troubleshoot issues effectively. Here are the key parts of a typical linear motor controller:
1. Power Supply
The power supply provides the necessary voltage and current to drive the linear motor. It must deliver stable, clean power to ensure smooth motion and prevent electrical noise from affecting the system’s accuracy. Some advanced controllers include regulated power supplies that adapt to load changes, improving efficiency and reducing heat generation.
2. Control Circuit / Driver
The control circuit, often called the driver, is responsible for regulating the electrical signals sent to the motor. It adjusts current, voltage, and pulse width to control the motor’s movement according to the commands from the microcontroller. High-performance drivers enable fast response times and precise motion, which are critical in applications like robotics and CNC machines.
3. Feedback System (Encoder or Resolver)
A feedback system is a crucial component for closed-loop control. Encoders or resolvers monitor the motor’s position, speed, and acceleration in real-time, feeding this data back to the controller. This allows the controller to make instantaneous corrections, maintaining high accuracy and preventing drift or overshoot. Without a reliable feedback system, achieving precision motion is nearly impossible.
4. Microcontroller / Digital Signal Processor (DSP)
The microcontroller or DSP serves as the “brain” of the linear motor controller. It processes input commands, executes control algorithms such as PID (Proportional-Integral-Derivative), and calculates the precise output needed for the motor. Advanced controllers can also handle trajectory planning, multi-axis coordination, and adaptive motion control, enabling complex automation tasks with minimal manual intervention.
5. Communication Interface
Modern linear motor controllers often include a communication interface to connect with PLCs, PCs, or other automation systems. Common protocols include EtherCAT, CANopen, Modbus, and USB. This interface enables real-time monitoring, remote control, and integration into larger industrial networks, making the system more flexible and intelligent.
6. Safety and Protection Components
Most controllers also feature built-in safety mechanisms to protect both the motor and the system. These include overcurrent protection, overvoltage protection, thermal shutdown, and emergency stop functions. Safety features are particularly important in high-speed or high-load applications where failures can cause damage or injury.
How Linear Motor Controllers Work?
Understanding how linear motor controllers work is essential for anyone involved in automation, robotics, or precision machinery. These controllers act as the bridge between electrical signals and mechanical motion, ensuring that linear motors move with speed, accuracy, and reliability. Let’s break down the process step by step.
1. Receiving Commands
The operation begins when the controller receives a command from an external system, such as a PLC, computer, or human-machine interface (HMI). The command specifies the desired position, speed, or trajectory for the linear motor. This input can be digital or analog, depending on the system configuration.
2. Signal Processing
Once the command is received, the controller’s microcontroller or digital signal processor (DSP) interprets it. It calculates the required current, voltage, and timing to achieve the desired motion. Advanced controllers implement control algorithms like PID (Proportional-Integral-Derivative) or trajectory planning, optimizing the movement for smooth acceleration, precise positioning, and minimal overshoot.
3. Power Modulation
The processed signal is then sent to the driver circuit, which regulates the power supplied to the linear motor. By adjusting pulse width, current, and voltage, the driver ensures the motor moves according to the command. This step is crucial for maintaining precision and responsiveness, especially in high-speed or high-load applications.
4. Feedback Monitoring
A critical part of the system is the feedback loop. Encoders or resolvers continuously measure the motor’s actual position, speed, and acceleration, sending this information back to the controller. The controller compares the real-time feedback with the desired command and makes instantaneous adjustments. This closed-loop control ensures accurate motion and compensates for any disturbances, load changes, or mechanical inaccuracies.
5. Motion Execution
Finally, the linear motor executes the movement precisely as instructed. The controller maintains real-time adjustments, ensuring smooth, accurate, and efficient operation. Whether it’s high-speed scanning, precise positioning, or synchronized multi-axis movement, the linear motor controller guarantees that the system performs reliably and consistently.
By receiving commands, processing signals, modulating power, and continuously monitoring feedback, it transforms electrical instructions into accurate mechanical movement. Understanding how these controllers work not only highlights their critical role in motion control systems but also helps engineers and designers optimize performance, enhance efficiency, and ensure long-term reliability in demanding industrial and technological applications.
Common Functions of Linear Motor Controllers
A linear motor controller is much more than a simple motor driver, it is a sophisticated system that ensures precision, efficiency, and safety in modern automation and motion control applications. By intelligently processing input commands, regulating power, monitoring feedback, and executing control algorithms, these controllers transform a linear motor into a highly accurate, responsive, and reliable motion device.
Below, we explore each key function in depth:
1. Precision Positioning
Precision positioning is one of the most critical functions of a linear motor controller. Using closed-loop feedback systems such as encoders or resolvers, the controller constantly monitors the motor’s position in real time. If the motor deviates from its intended path, the controller immediately makes adjustments to bring it back to the exact position.
This function is especially important in industries like CNC machining, semiconductor manufacturing, robotics, and automated inspection systems, where even the smallest deviation can affect product quality. For instance, in a CNC machine, a linear motor must move cutting tools to exact coordinates, often within a few microns of error. A linear motor controller ensures this level of precision, enabling consistent, high-quality production and reducing waste caused by positioning errors.
Beyond industrial machinery, precision positioning is also essential in applications like laboratory automation or medical imaging systems, where accurate movement can directly impact the success of experiments or the quality of diagnostic results. By maintaining exact positioning, controllers not only enhance accuracy but also improve repeatability, ensuring that tasks can be performed reliably over thousands of cycles.
2. Speed Control
Linear motor controllers also provide precise speed control, regulating how fast the motor moves at any given moment. Controllers manage acceleration, deceleration, and overall velocity to ensure smooth and predictable motion. This is critical in applications where sudden speed changes could create vibration, mechanical stress, or damage delicate components.
For example, in pick-and-place robotic systems, precise speed control allows robots to move parts quickly while minimizing impact forces. Similarly, in conveyor systems used in pharmaceutical or electronics manufacturing, maintaining steady motion prevents product misalignment, reduces breakage, and improves efficiency.
Advanced linear motor controllers can even implement variable speed profiles to match specific task requirements. This capability is useful in multi-step processes where a motor must move quickly during transit but slow down during high-precision tasks. By controlling speed dynamically, controllers enhance performance, reduce wear on mechanical components, and increase overall system lifespan.
3. Torque Control
In addition to positioning and speed, many linear motor controllers provide torque control, maintaining a consistent force throughout the motor’s operation. This function is particularly important in high-load or heavy-duty applications, such as automated material handling, linear actuators lifting heavy components, or presses in industrial manufacturing.
Torque control prevents sudden fluctuations that could damage mechanical parts or reduce precision. For example, when lifting a load on a linear actuator, a controller ensures the motor applies exactly the required force, preventing jerks or slippage. In robotic arms, torque control allows smooth movement of heavy payloads while maintaining precise positioning.
By actively regulating torque, linear motor controllers improve system stability, reliability, and safety, particularly in complex automation systems where loads may vary during operation. This ensures consistent performance even under challenging conditions.
4. Multi-Axis Synchronization
Many industrial systems require multiple linear motors to work together seamlessly. Linear motor controllers with multi-axis synchronization capabilities coordinate the movement of several motors simultaneously, ensuring alignment, timing, and precision.
This function is essential in robotic assembly lines, multi-axis CNC machines, 3D printing, and semiconductor wafer handling systems, where synchronized motion is critical to avoid collisions or mechanical stress. For instance, in a multi-axis CNC milling machine, each axis must move precisely according to the program’s trajectory. Any mismatch can result in defective parts or machine damage.
With synchronized control, linear motor controllers enable complex, coordinated movements, allowing automation systems to perform sophisticated tasks efficiently. Multi-axis synchronization also facilitates higher throughput and reduces the likelihood of errors in high-precision manufacturing processes.
5. Safety and Protection Functions
Safety is a paramount concern in motion control systems. Linear motor controllers include built-in protection mechanisms such as overcurrent protection, overvoltage protection, thermal shutdown, and emergency stop capabilities. These features protect both the motor and the overall system from unexpected faults, ensuring reliable and safe operation.
For example, in high-speed robotics or industrial automation systems, a sudden overload or power spike could cause serious damage. The controller’s protection functions immediately respond to such events, preventing mechanical or electrical failures. Safety features are particularly critical in high-load applications or systems operating around human operators, ensuring both equipment longevity and workplace safety.
6. Real-Time Monitoring and Diagnostics
Finally, many modern controllers provide real-time monitoring and diagnostics, tracking parameters such as motor position, velocity, current, temperature, and system errors. This allows engineers and operators to detect anomalies early, perform predictive maintenance, and optimize system performance.
In industrial environments, real-time monitoring helps prevent downtime, reduce maintenance costs, and improve overall efficiency. For instance, if a linear motor begins to overheat or shows unusual current patterns, the controller can trigger warnings or adjust operation to prevent failure. Real-time diagnostics also provide valuable data for process optimization, allowing manufacturers to fine-tune system performance and maintain high-quality output consistently.
In summary, the functions of a linear motor controller are crucial for achieving precision, efficiency, and reliability in motion control systems. From precision positioning and speed regulation to torque control, multi-axis synchronization, safety protections, and real-time monitoring, these controllers transform linear motors into intelligent, high-performance components.
Conclusion
In conclusion, understanding the functions and workings of a linear motor controller is essential for anyone involved in precision motion control, robotics, or industrial automation. These controllers transform electrical commands into accurate, reliable, and efficient linear motion, enabling high-speed positioning, smooth speed control, torque management, multi-axis synchronization, and real-time system monitoring.
For engineers and designers seeking high-performance solutions, ITG offers a comprehensive range of linear motors to meet diverse industrial needs. From Ironcore Linear Motors for high force applications, Ironless Linear Motors for ultra-smooth, cogging-free motion, to Custom Linear Motors tailored for specialized requirements, ITG’s products deliver precision, durability, and efficiency.
Whether your application involves CNC machinery, robotics, semiconductor equipment, or high-vacuum environments, ITG’s linear motors combined with advanced controllers provide the reliability and performance required to drive your projects to success.
